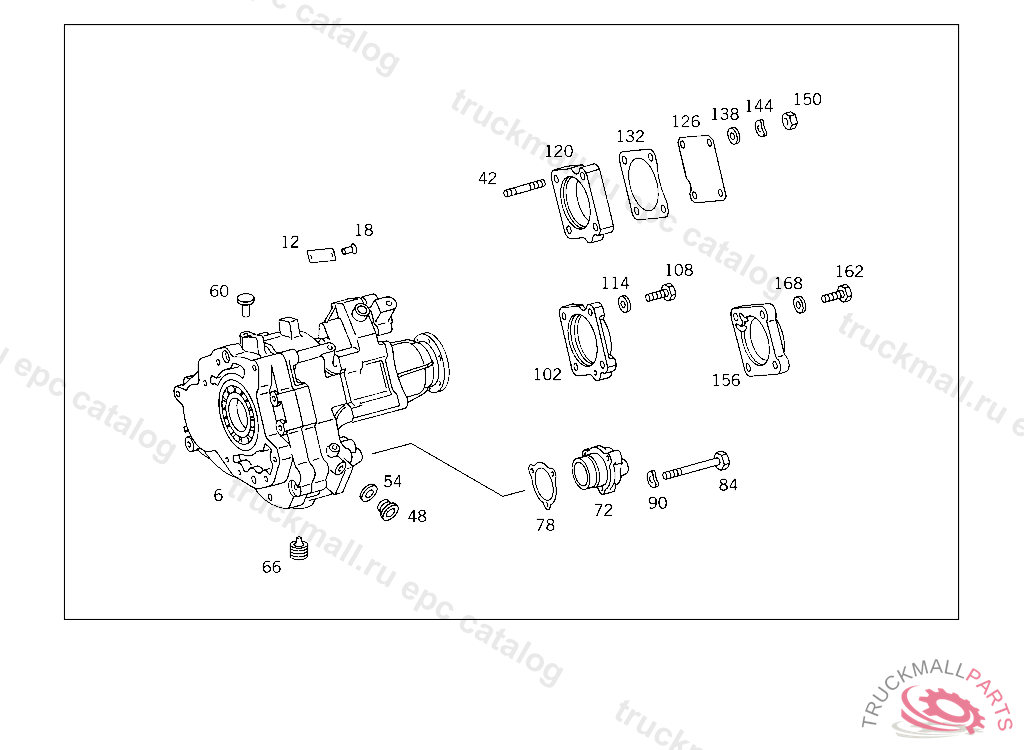

Поз.
Артикул
Описание
6
P.T.O.
6
P.T.O.
6
P.T.O.
6
P.T.O.
6
P.T.O. , Replaced By: A3872607005, +001A3892601672, +001A3892640380, +004A3899900605, +004A3859900551, +004N000137012203
6
P.T.O. , Replaced By: A3872607105, +001A3892601672, +001A3892640380, +004A3899900605, +004A3859900551, +004N000137012203
6
P.T.O. , Replaced By: A3872607205, +001A3892601672, +001A3892640380, +004A3899900605, +004A3859900551, +004N000137012203
6
P.T.O. , Replaced By: A3872607005, +001A3892601772, +001A3892640380, +004A3899900605, +004A3859900551, +004N000137012203
6
P.T.O. , Replaced By: A3872607105, +001A3892601772, +001A3892640380, +004A3899900605, +004A3859900551, +004N000137012203
6
P.T.O. , Replaced By: A3872607205, +001A3892601772, +001A3892640380, +004A3899900605, +004A3859900551, +004N000137012203
12
UNIT IDENTIFICATION PLATE , Replaced By: A4055840624
12
UNIT IDENTIFICATION PLATE , Replaced By: A3855840263
12
UNIT IDENTIFICATION PLATE P.T.O. HOUSING
18
GROOVED NAIL3X4,TO 000 431 94 14,000 431 96 14
42
STUD HOUSING,TOP
42
STUD HOUSING,TOP M 12X77
42
THREADED PIN TRANSMISSION CASE TO TRANSMISSION CASE
48
SCREW PLUG FRONT COVER
54
SEAL RINGTO 001 431 72 14
60
PLUG TO PLUG HYDRAULIC LINE
66
SCREW PLUG HOUSING,BOTTOM,183596
72
CYLINDER SHIFTING CYLINDER
72
CYLINDER , Replaced By: A3892640427, +001A0049905171, +001A0009940647, +001A0009945348, +001A0009973634
78
GASKET SHIFTING CYLINDER TO CASE
84
SCREW SUPPORT TO FENDER
84
SCREW , Replaced By: N304017008018
90
SPRING WASHER , Replaced By: N000137008212
90
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
102
COVER DRIVE FLANGE
108
SCREW BELL HOUSING TO CYLINDER CRANKCASE M12 X 40,4 473926
114
WASHER ENGINE MOUNTING TO CONSOLE
120
INTERMEDIATE FLANGE DRIVE SHAFT
126
COVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO TRANSMISSION 157675, Replaced By: A9022640111
126
COVER TO PLUG HYDRAULIC PUMP CONNECTION OPENING
126
COVER P.T.O. FLANGE
132
GASKET COVER TO FLANGE
132
GASKET , Replaced By: A3892640780
132
GASKET COVER TO P.T.O. CASE
138
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
144
WASHER PRESSURE SWITCH SCREW-CONNECTION TO M 24X1,5 129167
150
NUT COVER TO FLANGE
156
COVER SHIFT CASE
162
SCREW BELL HOUSING TO CYLINDER CRANKCASE M12 X 40,4 473926
168
WASHER
999
SEAL RING PISTON
999
FITTING
999
BALL BEARING INTERMEDIATE SHAFT
999
SEAL RING PISTON
999
SCREW , Replaced By: N000000001057
999
OIL PUMP SHAFT , Replaced By: A9472640005
999
SCREW , Replaced By: N000000003888
999
SCREW P.T.O. TO TRANSMISSION M10 X 150
999
SCREW P.T.O. TO TRANSMISSION M10 X 90
999
PISTON P.T.O. CONTROL
999
SHIFT CASE P.T.O. CONTROL
999
CYLINDER (SHIFTING CYLINDER), Replaced By: A9452643527, +001A0049905171, +001A0009940647, +001A0009945348, +001A0009973634
999
CYLINDER (SHIFTING CYLINDER)
999
HEXALOBULAR BOLT SHIFTING CYLINDER TO CASE M8X50
999
HEXALOBULAR BOLTM10X170
999
SEAL RING
