Mercedes A0039979172 - Фитинг шланга

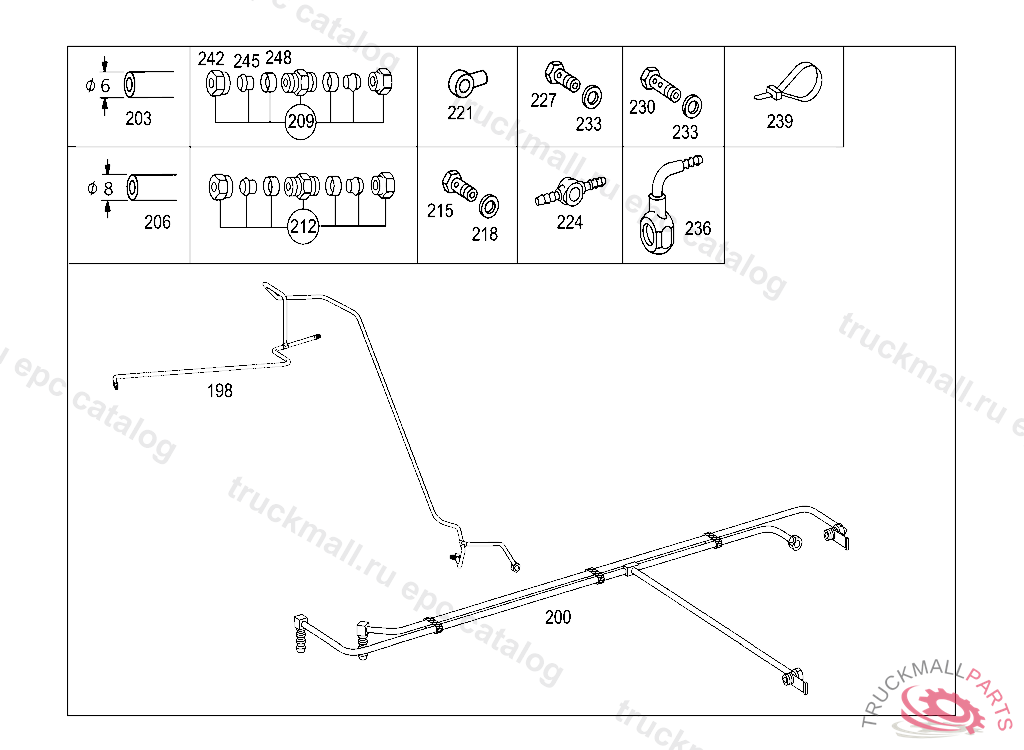

G 240-16 715.521 NEBENANTRIEBE UND RETARDER

26 TRANSMISSION,16-SPEED - 705 P.T.O. DEPENDENT ON TRANSMISSION IL. 4

Поз.
Артикул
Описание
200
A9452606949
LINE FROM LOCKING VALVE TO DISTRIBUTOR AND P.T.O
203
A0009872627
PLASTIC PIPE RISING PIPE 4X6 MM
203
A9442607306
LINE , Replaced By: A0009872627, +001A0049905171, +001A0029905278
209
A0039979172
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
221
N915052004028
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
227
N915036006202
HOLLOW SCREW LINE CONNECTION
233
N007603010100
SEAL RINGTO 001 431 72 14
233
N007603010101
SEAL RING RELAY VALVE,CONNECTION: "41"
239
A0019978390
LOOM TIE LINE MOUNTING 280 MM
242
N915017006100
UNION NUT
245
A0019901667
SEAL CONE
248
N915062004000
SLEEVE LEAK LINE
