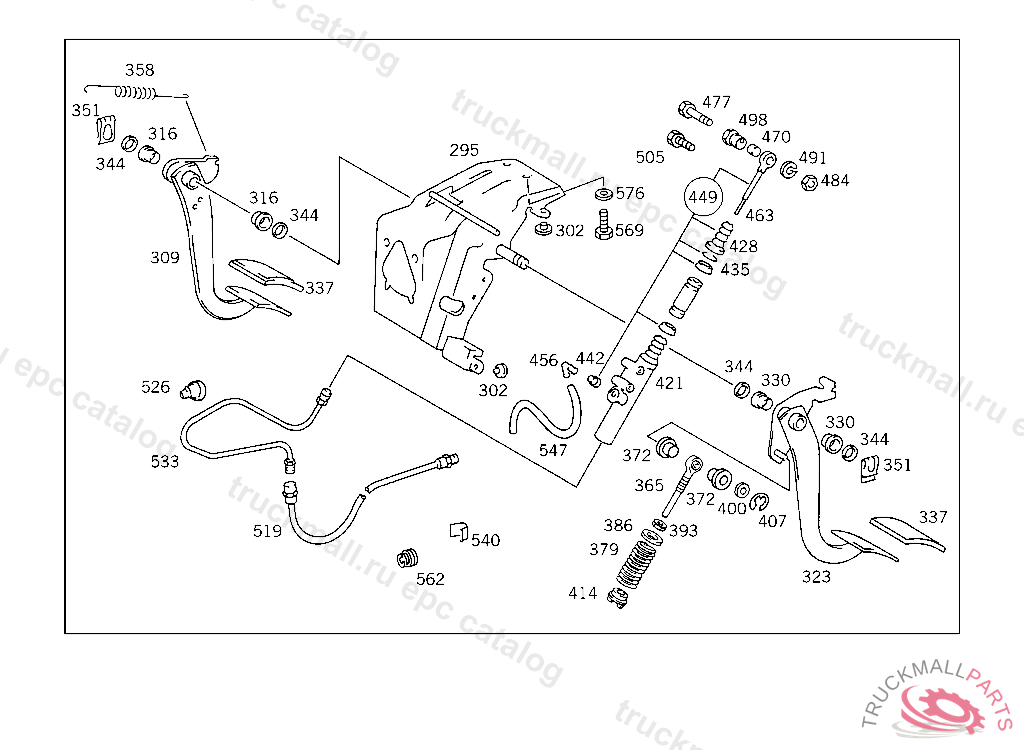

Поз.
Артикул
Описание
295
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO.275293-285631, Replaced By: A3092901333
302
STOP
309
PEDAL BRAKE
316
BUSHING , Replaced By: A1242920050
323
PEDAL ,275293-526086, Replaced By: A3092902216, +001A3102900339, +001A1232950150, +001N000931008047, +001N913004008004
330
BUSHING , Replaced By: A1242920050
337
PAD , Replaced By: A1072910182
344
WASHER PEDALS TO PIVOT PINS
351
LOCK AT WATER EXPANSION TANK
358
SPRING RELEASE SPRING
365
ROD , Replaced By: A3132900139
372
BUSHING
379
SPRING (DEAD CENTER SPRING) 35 MM
386
SPRING RETAINER SPRING TO PUSH ROD
393
NUT
400
WASHER TRAILER PLUG SOCKET TO BRACKET
407
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
414
SPRING RETAINER SPRING TO PUSH ROD
421
MASTER CYLINDER , Replaced By: A0012958706
421
428
BOOT
435
LOCK RING19 MM
442
PLUG
449
REPAIR KIT MASTER CYLINDER, 000,003,007,102,103,105,200 A 091118 083,086,093,183,190,193,280,283 F 015866
449
456
INTERMEDIATE PIECE FROM CLUTCH MASTER CYLINDER TO RESERVOIR
463
ROD
470
BUSHING
477
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
484
NUT , Replaced By: N913004006001
491
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
498
NUT ROD TO LEVER,526440
505
SCREW , Replaced By: N304017008016
519
HOSE FROM CLUTCH HOSE TO SLAVE CYLINDER
526
GROMMET , Replaced By: A1079970881
533
533
LINE , Replaced By: A3404201129
540
LOCK , Replaced By: A1072950173
547
562
GROMMET , Replaced By: A0009972781
569
SCREWM 8X20
576
WASHER TRAILER PLUG SOCKET TO BRACKET
999
BUSHING , PART NUMBER HAS BEEN CONVERTED TO THE NEW MODE OF WRITING, Replaced By: A3198920117
999
