Поз.
Артикул
Описание

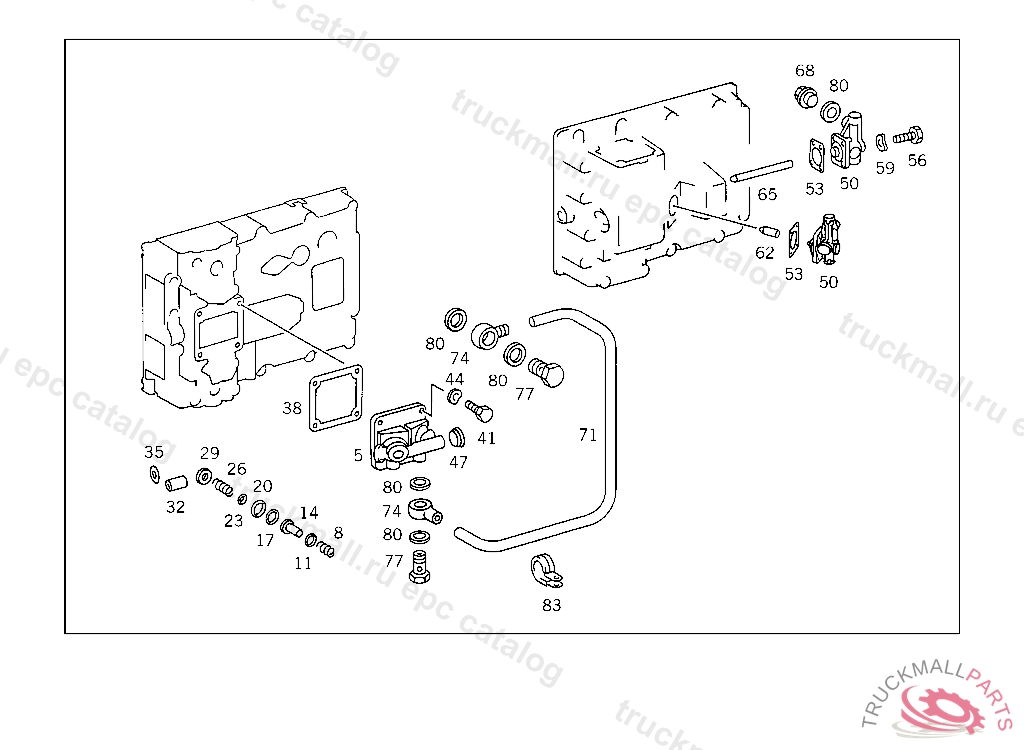

50
VALVE 3/2-WAY VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,SOLENOID VALVE,131097,5 S 110 GPA131453,5 K 110 GPA
50
VALVE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0012602757
53
GASKET , Replaced By: A0002685880
53
GASKET SHIFT CASE
56
SCREW , Replaced By: N304017008021
56
SCREW PIPE CLAMP
59
SPRING WASHER , Replaced By: N000137008212
59
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
62
PIN MAIN SHUT-OFF VALVE CONTROL,FRONT,003860
62
PIN , Replaced By: A0002653574
65
PIN , Replaced By: A0002653674
65
PIN TRANSMISSION CASE REAR COVER,SIDE 10X124.70 MM
68
SCREW PLUGM 12X1.5
71
HOSE FROM 3/2-WAY VALVE TO SHIFTING CYLINDER, ORDER BY THE METER
74
BANJO UNION
77
HOLLOW SCREW HEATING CONNECTION
80
SEAL RING LINE CONNECTION
83
CLAMP HOSE TO TRANSMISSION CASE
