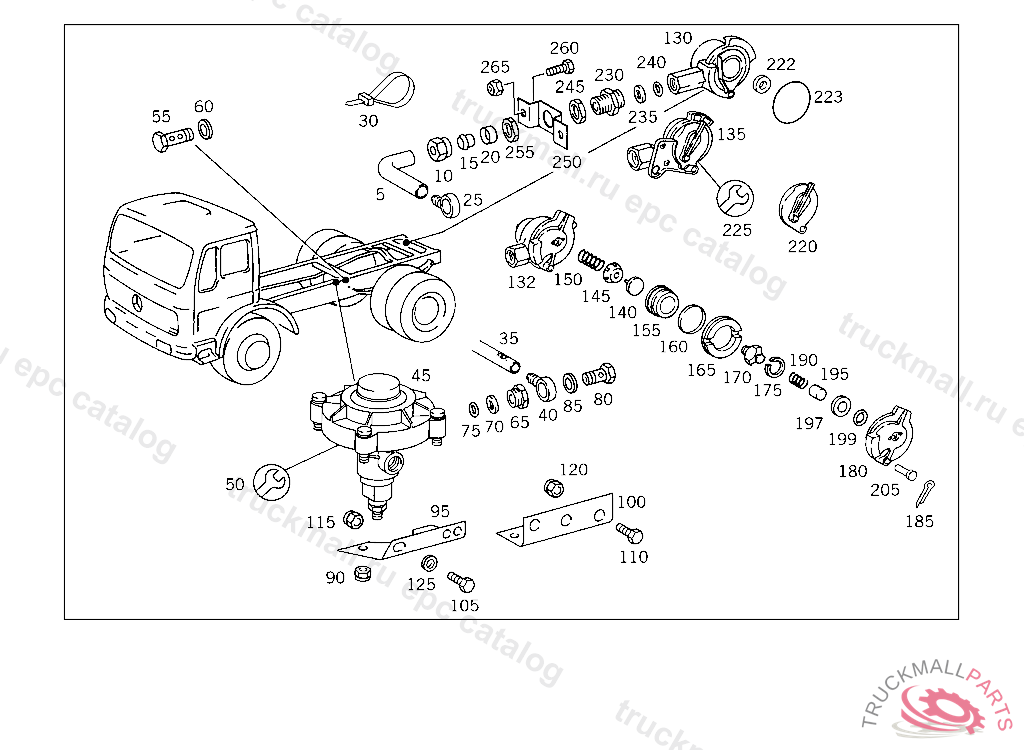

Поз.
Артикул
Описание
5
HOSE , Replaced By: A0009872827
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
10
UNION NUT LINE CONNECTION, Replaced By: N000000006239
10
UNION NUT LINE CONNECTION
15
GLAND , Replaced By: A0019901967
15
SEAL CONE LINE CONNECTION
20
SLEEVE LINE CONNECTION
20
BUSHING , Replaced By: N915062009000
25
BANJO UNION , Replaced By: N915052009009
25
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
30
LOOM TIE LINE MOUNTING
35
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
40
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
40
BANJO UNION , Replaced By: N915052004006
45
BRAKE VALVE (TRAILER CONTROL VALVE) "BOSCH"
45
BRAKE VALVE (TRAILER CONTROL VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
50
REPAIR KIT , Replaced By: A0014306160
50
REPAIR KIT TRAILER CONTROL VALVE TO 001 431 46 05,BOSCH
50
REPAIR KIT TRAILER CONTROL VALVE TO 001 431 52 05, WABCO
55
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
60
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
65
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
70
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
70
THRUST RING CHECK VALVE TO AIR RESERVOIR
75
O-RING CHECK VALVE TO AIR RESERVOIR
80
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
85
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
90
NUT STRAP TO BRACKET
90
NUT , Replaced By: N910113010000
95
BRACKET TRAILER CONTROL VALVE
100
BRACKET TRAILER CONTROL VALVE
105
SCREW CONSOLE TO SIDE MEMBER
110
SCREW BRAKE LINE COUPLING TO REAR CROSS MEMBER
115
NUT SUPPORT TO SIDE MEMBER
120
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
120
NUT COMBINATION CYLINDER TO BEARING BRACKET
125
WASHER
130
BRAKE LINE COUPLING , Replaced By: A0004297530
130
BRAKE LINE COUPLING AT REAR CROSS MENBER
132
BRAKE LINE COUPLING AT REAR CROSS MENBER
135
BRAKE LINE COUPLING AT REAR CROSS MENBER
140
VALVE DISCTO 000 429 48 30
145
VALVE DISCTO 000 429 48 30
150
SPRINGTO 000 429 16 30
155
VALVE PARTTO 000 429 16 30
160
GASKETTO 000 429 16 30
165
NUTTO 000 429 16 30
170
VALVE TAPPETTO 000 429 16 30
175
SNAP RINGTO 000 429 16 30
180
COVERTO 000 429 16 30,BOSCH
185
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
190
SPRINGTO 000 429 16 30
195
SPRING CAPSULETO 000 429 16 30
197
SEAL RINGTO 000 429 16 30
199
SEAL RINGTO 000 429 16 30
205
PIN
220
COVERWABCO
222
VALVE CONEBOSCH
223
SEAL RINGTO 000 429 75 30
225
REPAIR KITWABCO
230
FITTING SHUTTLE VALVE
235
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
235
THRUST RING CHECK VALVE TO AIR RESERVOIR
240
O-RING CHECK VALVE TO AIR RESERVOIR
245
NUT BRACKET TO SIDE MEMBER
250
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 686340, Replaced By: A3184291640
250
BRACKET AT BRAKE LINE COUPLING
255
NUT BRACKET TO SIDE MEMBER
260
SCREW , Replaced By: N304017008021
260
SCREW PIPE CLAMP
265
NUT , Replaced By: N913004008001
265
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
COVERTO 000 429 48 30
999
REPAIR KITKNORR
