Поз.
Артикул
Описание

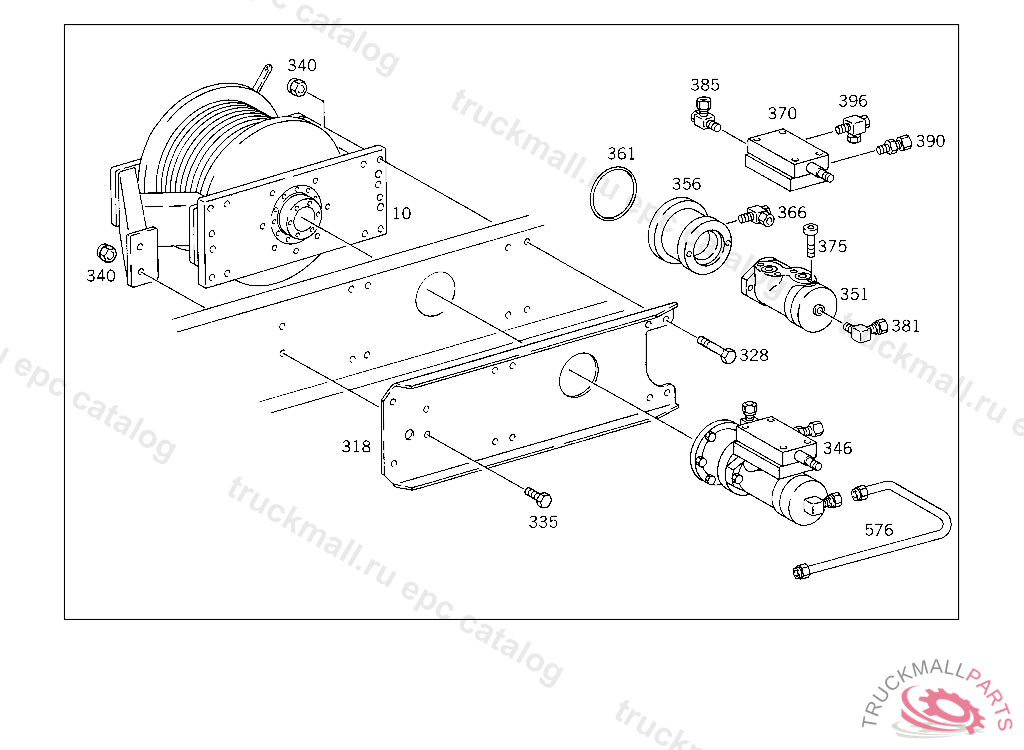

10
CABLE WINCH
318
REINFORCEMENT CABLE WINCH TO FRAME SIDE MEMBER
328
SCREW , Replaced By: N308676016015
328
SCREW BRACKET TO ENGINE MOUNTING
328
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
328
SCREW , Replaced By: N000960016206
328
SCREW , Replaced By: N000960016261
328
SCREW , Replaced By: N308676016014
328
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
335
SCREW BEARING BRACKET TO SIDE MEMBER
340
NUT COMBINATION CYLINDER TO BEARING BRACKET
340
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
346
HYDRAULIC MOTOR
351
HYDRAULIC MOTOR
356
BRAKE
361
SEAL RING
366
ELBOW FITTING
370
VALVE
375
SCREW STEERING SHAFT BEARING TO CAB M 8X30,5 191030
381
ELBOW FITTING
385
ELBOW FITTING
390
FITTING
396
ELBOW FITTING
576
OIL LINE FROM PUMP TO HYDRAULIC MOTOR
999
PIN
999
VALVE
999
VALVE , UP TO CHASSIS 5 129120,FROM CHASSIS SEE SA 32457
999
OIL LINE FROM OIL TANK TO HYDRAULIC PUMP
999
FILTER
999
OIL LINE FROM OIL TANK TO HYDRAULIC PUMP
999
OIL LINE FROM OIL TANK TO HYDRAULIC PUMP 40X125 MM, PARTS TO BEORDERED FROM SUPPLIER,MESSRS F X MEILLER,MUNICH
999
SPRINGTO 380 560 05 30
999
PINTO 380 560 04 30
999
CABLE PULLEY VERTICAL TO 380 560 05 30
999
PINTO 380 560 05 30
999
CABLE PULLEY HORIZONTAL TO 380 560 05 30
999
FITTING ,5 086426
999
FITTING
999
OIL LINE FROM OIL TANK TO HYDRAULIC PUMP,5 086426
999
BRACKETTO 380 560 05 30
999
BRACKET , Replaced By: A6575210040
999
BRACKET , Replaced By: A6575210140
999
WASHER SHOCK ABSORBER TO UPPER BEARING BRACKET
999
STRUT BUMPER,LEFT
999
SCREW , Replaced By: N304017006018
999
SCREW , Replaced By: N308676012026
999
GREASE NIPPLE
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
