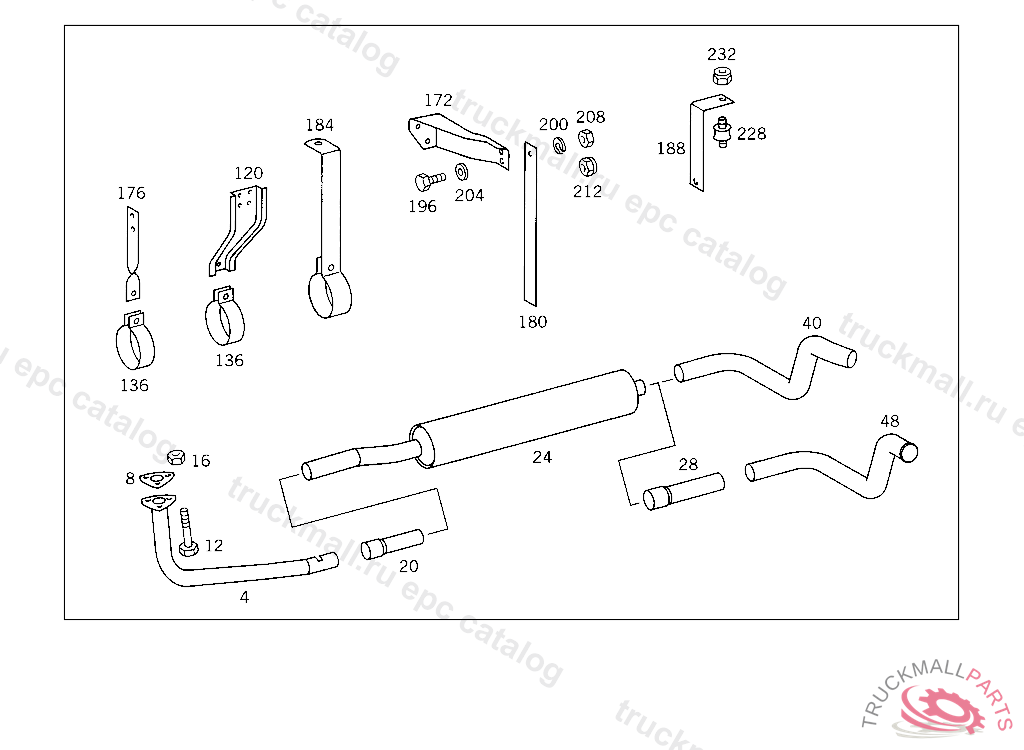

Поз.
Артикул
Описание
4
EXHAUST PIPE FRONT, UP TO IDENT NO. 4 153178 EXCEPT FOR 515187-599999
4
EXHAUST PIPE FRONT, FROM IDENT NO. 4 153179 ALSO INSTALLED ON 515187-599999
8
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, UP TO IDENT NO. 4 153178 EXCEPT FOR 515187-599999
8
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, ELIMINATED - NO LONGER REQUIRED
8
FLANGE GASKET , Replaced By: A4424920080
12
SCREW BRACKET TO TRANSMISSION
16
NUT STRAP TO SUPPORT,5 149419
20
CONNECTOR INTERMEDIATE PIECE,FRONT
20
CONNECTOR FRONT,505802
24
EXHAUST MUFFLER WITH PIPE FRONT
24
EXHAUST MUFFLER WITH PIPE FRONT
24
EXHAUST MUFFLER WITH PIPE FRONT
24
EXHAUST MUFFLER WITH PIPE FRONT,505802
28
CONNECTOR REAR
28
CONNECTOR REAR
28
CONNECTOR REAR
40
REAR EXHAUST PIPE (TAIL PIPE)
40
REAR EXHAUST PIPE (TAIL PIPE), 10/20 UP TO IDENT NO. 4 103144, 50/60 UP TO IDENT NO. 4 108203, EXCEPT FOR 505803-599999
48
REAR EXHAUST PIPE (TAIL PIPE)
120
SUPPORT FRONT AND REAR EXHAUST MUFFLERS
136
CLAMP FRONT AND REAR EXHAUST MUFFLERS
172
SUPPORT REAR EXHAUST PIPE
172
SUPPORT REAR EXHAUST PIPE
176
BRACKET EXHAUST PIPE SUSPENSION,505802
180
BRACKET REAR EXHAUST PIPE
180
BRACKET EXHAUST PIPE SUSPENSION, 685037
180
BRACKET REAR EXHAUST PIPE
180
BRACKET REAR EXHAUST PIPE
184
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
184
BRACKET , Replaced By: A3834927941
188
BRACKET FEED AND RETURN LINES TO RETARDER 110 MM LANG, TO BE ADAPTED DURING ASSEMBLY
196
SCREW , Replaced By: N304017008021
196
SCREW PIPE CLAMP
196
SCREW CLAMP TO BRACKET AND TO PIPE
200
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
204
WASHER EXHAUST MUFFLER TO STRAP
204
WASHER , Replaced By: N000125008443
208
NUT
212
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
212
NUT , Replaced By: N913004008001
228
RUBBER BUFFER BRACKET TO SUPPORT
232
NUT STRAP TO BRACKET
232
NUT , Replaced By: N910113010000
999
RUBBER BUFFER EXHAUST MUFFLER
999
CONNECTOR BEHIND EXHAUST MUFFLER,5 499111
999
EXHAUST PIPE FRONT,4 666521
999
EXHAUST MUFFLER WITH PIPE , Replaced By: A3834900001, +001A3814920001
999
EXHAUST MUFFLER WITH PIPE FRONT
999
EXHAUST PIPE
999
CONNECTOR
999
BRACKET , Replaced By: A3814923841
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE REAR PART,5 169135
999
REAR EXHAUST PIPE REAR, FROM IDENT NO. 685038 ALSO INSTALLED ON 500001-599999
999
WASHER BRACKET TO SIDE MEMBER
999
SUPPORT REAR EXHAUST PIPE TO FRAME
999
SUPPORT TAIL PIPE TO SIDE MEMBER
999
SUPPORT REAR EXHAUST PIPE,5 193594
999
BRACKET EXHAUST PIPE
999
REAR EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 471444
999
BRACKET , Replaced By: A3834927941
999
WASHER BRACKET TO SIDE MEMBER
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008027
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREW , Replaced By: N308676012026
999
SCREW BRACKET TO SIDE MEMBER
999
CLAMP END PIECE TO EXHAUST PIPE 63.5 MM
999
CLAMP REAR EXHAUST PIPE TO BRACKET
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
NUT , Replaced By: N913004008001
