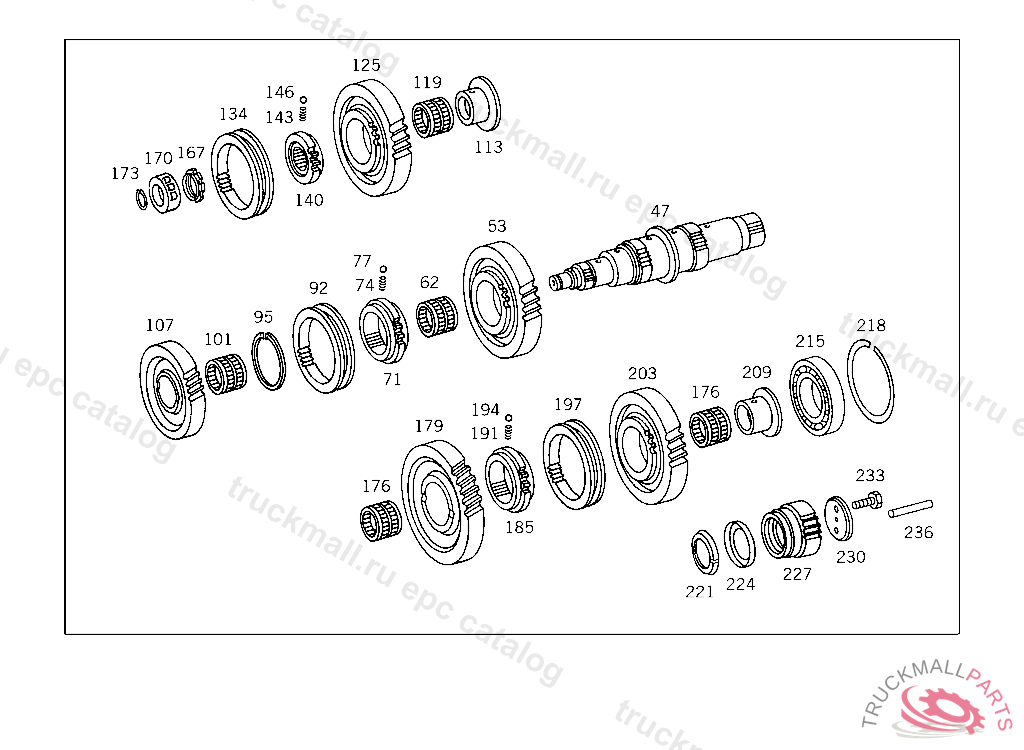

Поз.
Артикул
Описание
47
MAIN SHAFT
53
GEAR 1ST SPEED
53
GEAR , Replaced By: A0002622511
62
NEEDLE BEARING , Replaced By: A0059818710
62
NEEDLE BEARING CRAWLER SPEED GEAR
62
NEEDLE BEARING CRAWLER SPEED GEAR
71
SYNCHRONIZER HUB 1ST AND 2ND SPEED
74
SPRING
77
BALL P.T.O. SHAFT
92
SLIDING COLLAR 1ST AND 2ND SPEED
95
LOCK MAINSHAFT, AS REQUIRED 2.50 MM
95
LOCK MAINSHAFT, AS REQUIRED 2.40 MM
101
NEEDLE BEARING 2ND SPEED GEAR
101
NEEDLE BEARING 2ND SPEED GEAR
107
GEAR 2ND SPEED
107
GEAR , Replaced By: A0002621112
113
BUSHING
119
NEEDLE BEARING 3RD SPEED GEAR
119
NEEDLE BEARING 3RD SPEED GEAR
125
GEAR , Replaced By: A0002621513, +001A0002630914
125
GEAR 3RD SPEED
134
SLIDING COLLAR 3RD AND 4TH SPEED
140
SYNCHRONIZER HUB 3RD AND 4TH SPEED
143
SPRING MAIN SHAFT
146
BALL P.T.O. SHAFT
167
NUT COUNTERSHAFT,FRONT
170
CYLINDR. ROLLER BEARING
173
LOCK RING
176
NEEDLE BEARING 3RD SPEED GEAR
179
GEAR CRAWLER GEAR,019226
185
SYNCHRONIZER HUB REVERSE SPEED AND CRAWLER GEAR,019226
191
SPRING
194
BALL P.T.O. SHAFT
197
SLIDING COLLAR REVERSE SPEED
203
GEAR REVERSE SPEED,019226
209
BUSHING REVERSE SPEED GEAR
215
CYLINDR. ROLLER BEARING
215
CYLINDR. ROLLER BEARING , Replaced By: N005412770009
218
SNAP RING MAIN SHAFT,REAR
221
RING AS REQUIRED 6.80 MM
221
RING AS REQUIRED 7.10 MM
221
RING AS REQUIRED 6.70 MM,10/20879180, 50/60880936
221
RING HALF AS REQUIRED 6.90 MM,10/20879180, 50/60880936
221
RING HALF AS REQUIRED 7.00 MM, 116743
221
RING HALF , Replaced By: A0002648029
221
RING HALF , Replaced By: A0012620030
221
RING HALF , Replaced By: A0002620277
221
RING HALF , Replaced By: A0002620377
221
RING HALF , Replaced By: A0002622177
221
RING HALF , Replaced By: A0002620177
221
RING AS REQUIRED 7.20 MM, 11674310/50 792024, 20/60 766368
224
SPACER RING , 116743 DELIVER ADDITIONALLY AS REQUIRED 000 264 31 29-000 264 34 29
227
SUN GEAR
227
GEAR , Replaced By: A0002620609
230
THRUST WASHER MAIN SHAFT,REAR
233
SCREW , Replaced By: N000933010087
233
SCREW MAIN SHAFT,REAR
236
SPACER TUBE MAIN SHAFT,REAR
