Поз.
Артикул
Описание

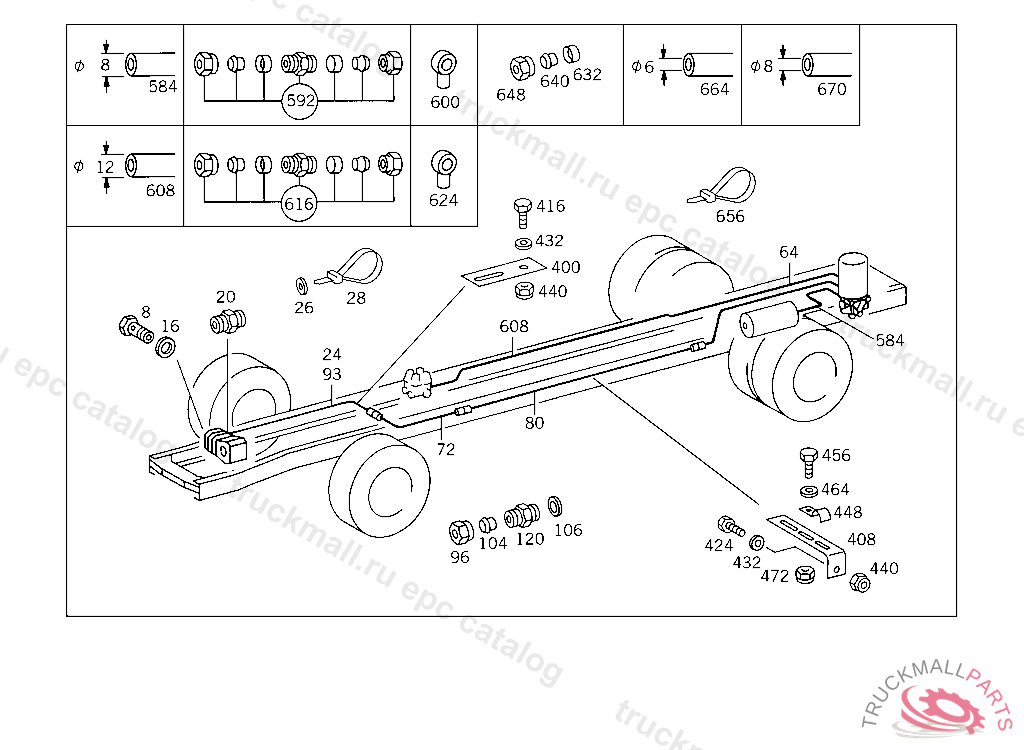

8
HOLLOW SCREW OIL LINE TO TRANSMISSION
16
SEAL RING LINE CONNECTION
20
CONNECTOR
24
LINE FROM AIR COMPRESSOR TO FITTING
26
WASHER BRACKET TO LEFT SIDE MEMBER
28
LOOM TIE LINE MOUNTING
64
LINE FROM FITTING TO PRESSURE REGULATOR
64
LINE FROM FITTING TO PRESSURE REGULATOR
64
LINE FROM FITTING TO PRESSURE REGULATOR
72
LINE FROM FITTING TO FITTING
80
LINE FROM FITTING TO FITTING
93
LINE FROM AIR COMPRESSOR TO FITTING
96
UNION NUT LINE CONNECTION
104
GLAND LINE CONNECTION
106
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
120
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
400
BRACKET AT CROSS MEMBER
408
BRACKET BATTERY CABLE
416
SCREW BRACKET TO SIDE MEMBER
416
SCREW FUEL LINE TO SIDE MEMBER
424
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
424
SCREW , Replaced By: N304017010040
432
WASHER GROUND CABLE
440
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
440
NUT BRACKET TO LEFT SIDE MEMBER
440
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
448
CLAMP , Replaced By: A1109950401
456
SCREW CLAMP TO BRACKET
464
WASHER PLUG SOCKET TO BRACKET
472
NUT PUMP TO BRACKET
584
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
584
PLASTIC PIPE8X6 MM, ORDER BY THE METER
592
FITTING (PARTS KIT),LINE RUPTURE
600
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
600
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
608
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
608
PLASTIC PIPE FRONT AXLE PNEUMATIC SUSPENSION 12X9 MM, ORDER BY THE METER
608
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
608
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
608
HOSE , Replaced By: A0009872827
608
PLASTIC PIPE8X6 MM, ORDER BY THE METER
616
FITTING (PARTS KIT),LINE RUPTURE
624
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
624
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
624
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
624
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
632
SLEEVE LINE CONNECTION
640
GLAND LINE CONNECTION
648
UNION NUT LINE CONNECTION
656
LOOM TIE ELECTRIC CABLE MOUNTING
664
INSULATING HOSE RED, ORDER BY THE METER
670
INSULATING HOSE
999
VALVE REPAIR KIT TO 003 431 68 06,339404
999
DS PROTECTION VALVETO 003 431 68 06,339405
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VALVE (CHECK VALVE)
999
CONNECTOR AIR DEHYDRATOR,CONNECTION: "30",5 937586K 171087, Replaced By: A0004292139
999
AIR CLEANER , Replaced By: A0004293695
999
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
999
AIR CLEANER COMPLETE TO BOSCH,KNORR
999
VALVE DRAIN, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
PARTS KIT AIR DEHYDRATOR,CONNECTION: "30", KNORR
999
REPAIR KIT. AIR CLEANERTO 693 420 75 71
999
REPAIR KIT AIR DEHYDRATOR KNORR
999
GASKET KIT AIR DEHYDRATOR TO 693 420 75 71
999
PARTS KIT PRESSURE REGULATOR TO 693 420 73 71,75 71
999
PRESSURE SENDER UNIT. PRESSURE REGULATORKNORR, Replaced By: A0015429218
999
ANTI-FREEZE DEVICE REPAIR KIT
999
REPAIR KIT AIR DEHYDRATOR TO 000 431 79 15
999
AIR DEHYDRATOR , Replaced By: A0014312115, +001A0004292139
999
AIR DEHYDRATORWABCO,5 9375855 937586 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0014312215, +001A0004292139
999
HEATER , Replaced By: A0005480670
999
HEATERWABCO
999
HEATERTO 000 431 79 15
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
GASKET KITWABCO
999
AIR DEHYDRATORKNORR,5 937586, Replaced By: A0024317015
999
AIR DEHYDRATORKNORR, Replaced By: A0024317115
999
AIR DEHYDRATORBOSCH,5 937586
999
AIR DEHYDRATORBOSCH
999
SWITCHTO 000 431 79 15
999
LOOM TIE , Replaced By: A0019978490
999
AIR DEHYDRATOR WITH PRESSURE REGULATOR AND HEATING KNORR,6.12, Replaced By: A0004309615
999
PRESSURE REGULATORKNORR,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
VALVE (CHECK VALVE)
999
SEAL RING FOUR-CIRCUIT PROTECTION VALVE TO AIRDRIER KNORR
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR, 4.05
999
RESERVOIR5 L
999
RESERVOIR30L,276 MM,8.5 BAR
999
REPAIR KIT (FOUR-CIRCUIT PROTECTIVE VALVE) TO 002 431 04 15/ 05 15
999
SEAL RINGWABCO
999
SEAL RING , Replaced By: A0005480870
999
CLAMP , Replaced By: A3129952420
999
THRUST RING LOCKING VALVE
999
STRAP AIR RESERVOIR TO FRAME SIDE MEMBER
999
CONSOLE AIR RESERVOIR TO FRAME 20 L
999
BRACKET ,B 981730
999
BRACKET PRESSURE REGULATOR
999
BRACKET DRAIN VALVE
999
BRACKET TO ENGINE
999
BRACKET LINE MOUNTING
999
CONNECTOR AIR RESERVOIR
999
BRACKET MOUNTING USED FOR COMPRESSED AIR LINES
999
FITTING VALVE TO VALVE
999
LOOM TIE AIR INTAKE HOSE TO CLAMP
999
BRACKET PRESSURE REGULATOR
999
FITTING
999
BRACKET
999
T-FITTING PRESSURE REGULATOR,CONNECTION: "1"
999
BASE AIR RESERVOIR TO FRAME,INSIDE,683255
999
RESERVOIR AIR RESERVOIR III
999
LINE , NOT USED
999
RESERVOIR AIR RESERVOIR III 20 L
999
RESERVOIR AIR RESERVOIR III 20 L,999621
999
RESERVOIR
999
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR
999
VALVE
999
VALVE DRAIN 20 L
999
CONSOLE AIR RESERVOIR
999
BANJO UNION
999
BRACKET AIR DEHYDRATOR
999
STRAP AIR RESERVOIR
999
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR 15 MM,B 936133
999
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR
999
LINE FROM AIR COMPRESSOR TO HOSE, NOT USED
999
LINE
999
RESERVOIR AIR RESERVOIR
999
BRACKET AIR RESERVOIR
999
WASHER 6,4 DIN 125. WASHER COMPRESSED AIR LINE TO BRACKET, NOT USED
999
WASHER TRAILER PLUG SOCKET TO BRACKET
999
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
999
SCREW POWER CYLINDER TO BEARING BRACKET
999
SCREW BEARING BRACKET TO FRONT AXLE
999
SEAL RING LINE CONNECTION
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
999
SCREW PLUG AT TANK
999
SCREW CABLE HARNESS MOUNTING M6X16
999
T-FITTING COMPRESSED AIR VALVE CONNECTION
999
NUT CHECK VALVE TO AIR RESERVOIR
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
NUT BRACKET TO SIDE MEMBER,XB209706
999
HOLLOW SCREW HEATING CONNECTION
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
HOLLOW SCREW AIR COMPRESSOR,CONNECTION: "2"
