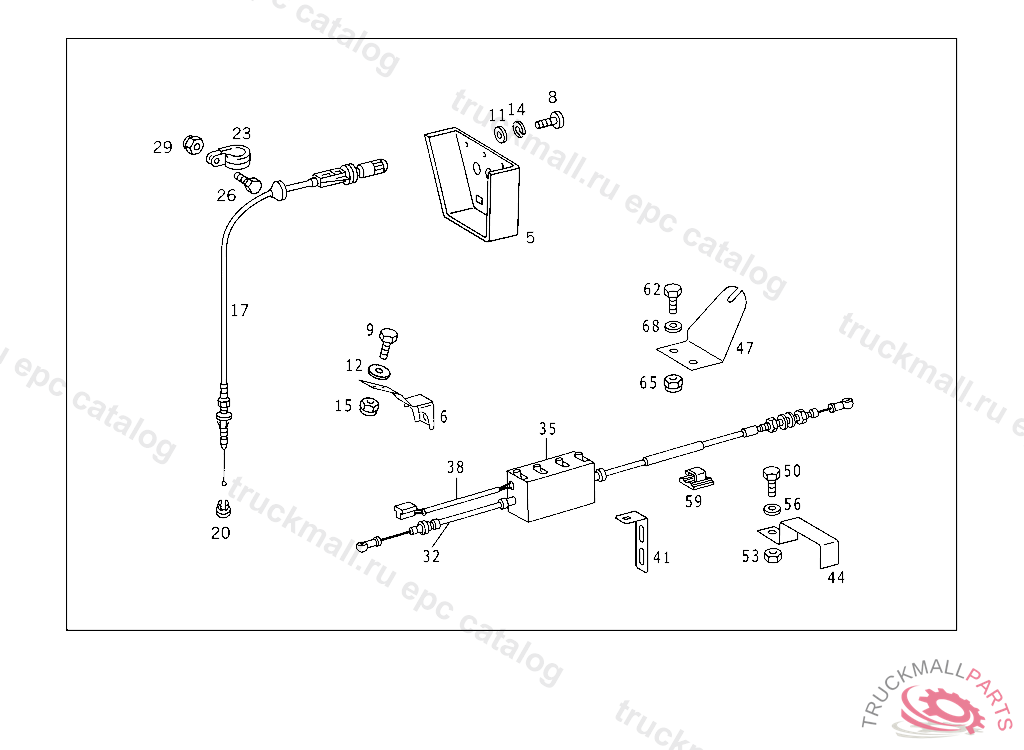

Поз.
Артикул
Описание
5
BRACKET MANUAL CONTROL, ON CAB 331
6
LEVER IDLING CONTROL
8
SCREW CABLE TO ALTERNATOR
9
SCREW BRACKET MOUNTING
11
WASHER PLUG SOCKET TO BRACKET
12
WASHER5,3
14
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
15
NUT TWO-WAY VALVE TO BRACKET
17
WIRE CABLE MANUAL IDLING CONTROL
17
WIRE CABLE MANUAL CONTROL 601 MM, NO.8650I.......I I I II .......INO.9985I I I II ID 208693
17
WIRE CABLE MANUAL IDLING CONTROL, NO.8650I.......I I I II .......INO.9985I I I II I
20
BUSHING CONTROL LEVER,B 892892
23
CLAMP LINE TO SIDE MEMBER
26
SCREW BRACKET MOUNTING
29
NUT TWO-WAY VALVE TO BRACKET
32
WIRE CABLE INJECTION PUMP SIDE,D 208694
35
MODULATOR MANUAL CONTROL
38
CABLE HARNESS MANUAL CONTROL
41
BRACKET FUEL LINE
44
BRACKET IN BELL HOUSING
47
BRACKET ,D 208694
50
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
53
NUT
56
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
59
CLAMP POS. CABLE TO PLATE
62
SCREW POWER CYLINDER TO BEARING BRACKET
65
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
68
WASHER TRAILER PLUG SOCKET TO BRACKET
