Mercedes N304017006018 - Болт

W 4 A 080/3,5 R 720.337

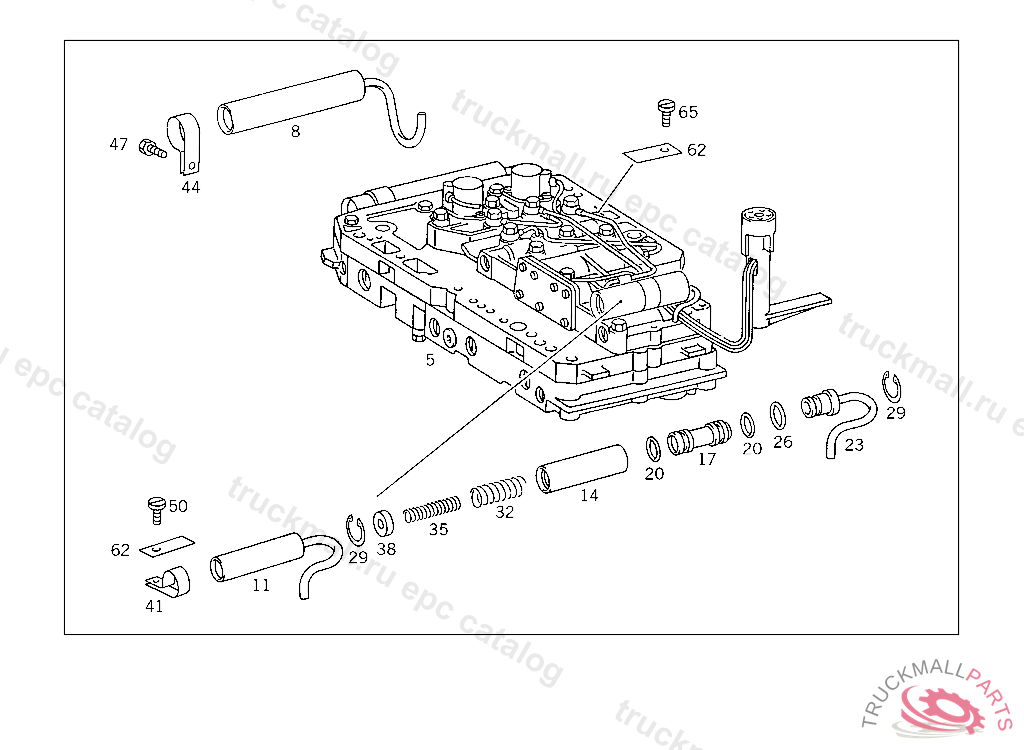

27 MERCEDES-BENZ AUTOMATIC TRANSMISSION - 500 CENTRAL VALVE BODY ASSEMBLY AND ATTACHMENT PARTS IL. 1
  • Поз.
    Артикул
    Описание
  • 5
    VALVE BODY ASSEMBLY CENTRAL
  • 5
    VALVE BODY ASSEMBLY , Replaced By: A3022702807
  • 5
    VALVE BODY ASSEMBLY , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO TRANSMISSION 002429, Replaced By: A3022705215
  • 8
    CYLINDER FIRST BRAKE
  • 41
    CLAMP CYLINDER TO HOUSING
  • 44
    CLAMP CYLINDER TO VALVE BODY ASSEMBLY
  • 47
    SCREW COVER PLATE TO COVER PLATE M 6 X 12
  • 47
    SCREW , Replaced By: N304017006018
  • 62
    BRACKET PLUG SOCKET TO VALVE BODY ASSEMBLY
  • 65
    SCREW LICENSE PLATE BRACKET
