Главная
›
Mercedes
›
BUS
›
O 500 M / 1725
›
382.186
›
47 FUEL SYSTEM
›

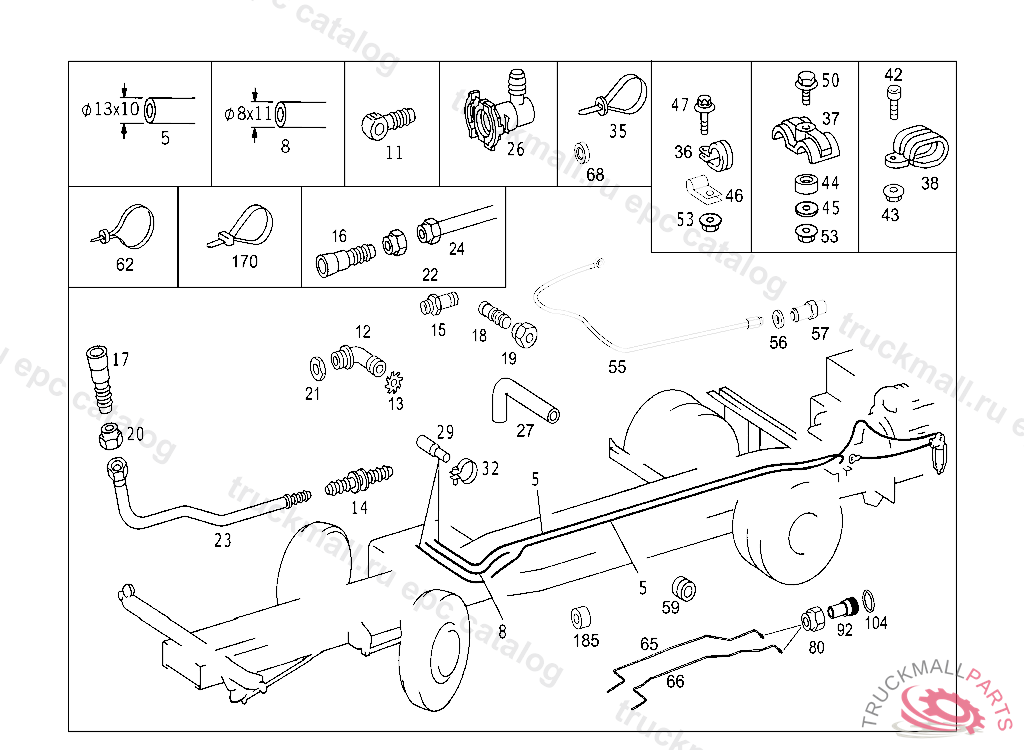

090 FUEL LINES,FUEL FILTER,AND BRACKET IL. 1
Mercedes N916016025201 - ХОМУТ
O 500 M / 1725 382.186
47 FUEL SYSTEM - 090 FUEL LINES,FUEL FILTER,AND BRACKET IL. 1
Поз.
Артикул
Описание
5
A0119970982
HOSE FEED & RETURN 13X1.5 MM, ORDER BY THE METER
11
N915052010001
BANJO UNION HOSE WIDTH, / I.D., 10/16 MM
23
A3844700664
LINE FEED & RETURN
32
N916017011000
CLAMP , Replaced By: N916017011001
35
A3849977090
LOOM TIE LINE MOUNTING
36
N916016025201
CLAMP HOSE TO FLANGE AND TO VALVE
44
A3609902440
WASHER , Replaced By: A3609902340
45
A3609902340
WASHER BRACKET TO LEFT SIDE MEMBER
47
N000000001147
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
53
N913023006002
NUT BRACKET TO FIRE WALL
170
A3459977390
LOOM TIE ELECTRIC CABLE MOUNTING
170
A3459977490
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
170
A3889977590
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
185
A6939977382
HOSE VIOLET
185
A6939977482
HOSE WITHE
185
A6939977282
HOSE GREEN
