Поз.
Артикул
Описание

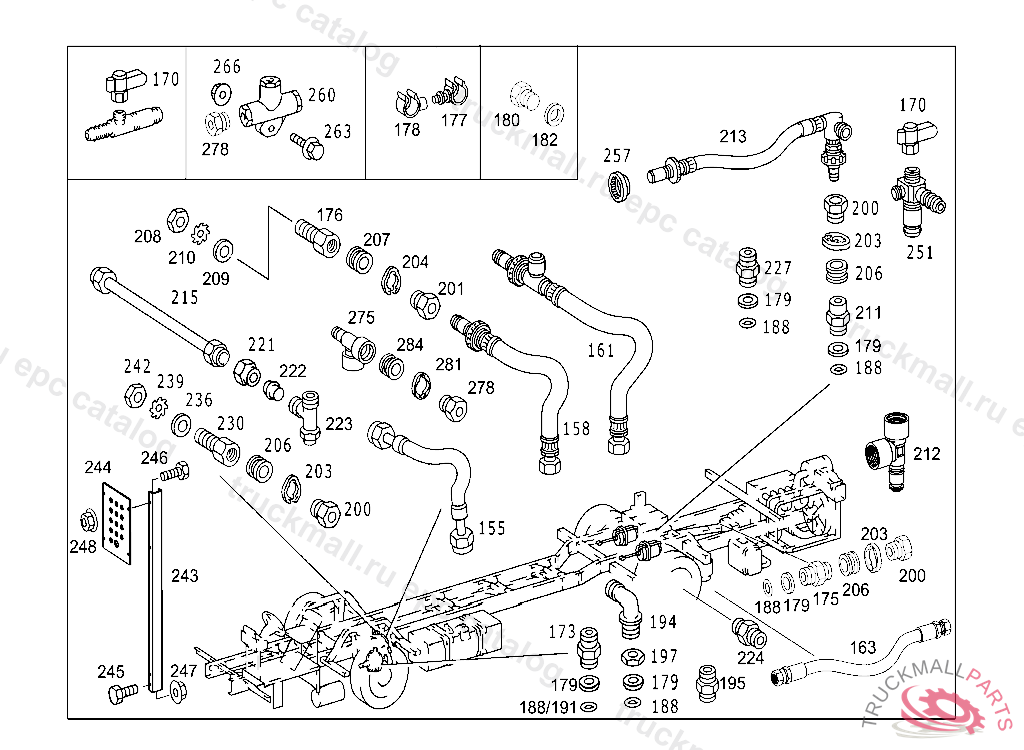

155
BRAKE HOSE AT TRISTOP CYLINDER
170
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
170
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
170
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
170
TEST CONNECTION
173
FITTING DELIVERY LINE TO PUMP
173
FITTING (PARTS KIT),LINE RUPTURE
173
SCREW-IN FITTING OIL LINE CONNECTION
173
FITTING , Replaced By: A0029971172
176
ADAPTER FITTING TEST CONNECTION
179
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
179
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
179
THRUST RING LOCKING VALVE
188
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
191
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
191
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
200
SCREW. UNION SCREW LINE CONNECTION
201
SCREW. UNION SCREW , Replaced By: A0009973734
203
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
204
LOCK , Replaced By: A0009945448
206
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
207
SEAL RING , Replaced By: A0009940747
208
NUT ,D 091466
209
WASHER SUPPORT TO FRAME,D 127794
211
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
215
LINE FROM BRAKE HOSE TO RIGHT DIAPHRAGM CYLINDER
215
LINE FROM BRAKE HOSE TO LEFT DIAPHRAGM CYLINDER
215
LINE FROM BRAKE HOSE TO LEFT DIAPHRAGM CYLINDER
215
LINE FROM BRAKE HOSE TO RIGHT DIAPHRAGM CYLINDER
221
UNION NUT LINE CONNECTION, Replaced By: N000000006239
222
GLAND , Replaced By: A0019901967
223
T-FITTING LEFT AND RIGHT BRAKE HOSES
224
CONNECTION FITTING , Replaced By: A0049971772
224
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
230
ADAPTER FITTING LINE CONNECTION TO ENGINE
236
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
239
TOOTHED WASHER SENDER UNIT TO BRACKET
242
NUT BRACKET TO SIDE MEMBER
260
DISTRIBUTOR REAR AXLE
