W 3 E 110/2,2 R
720.456
27 MERCEDES-BENZ AUTOMATIC TRANSMISSION

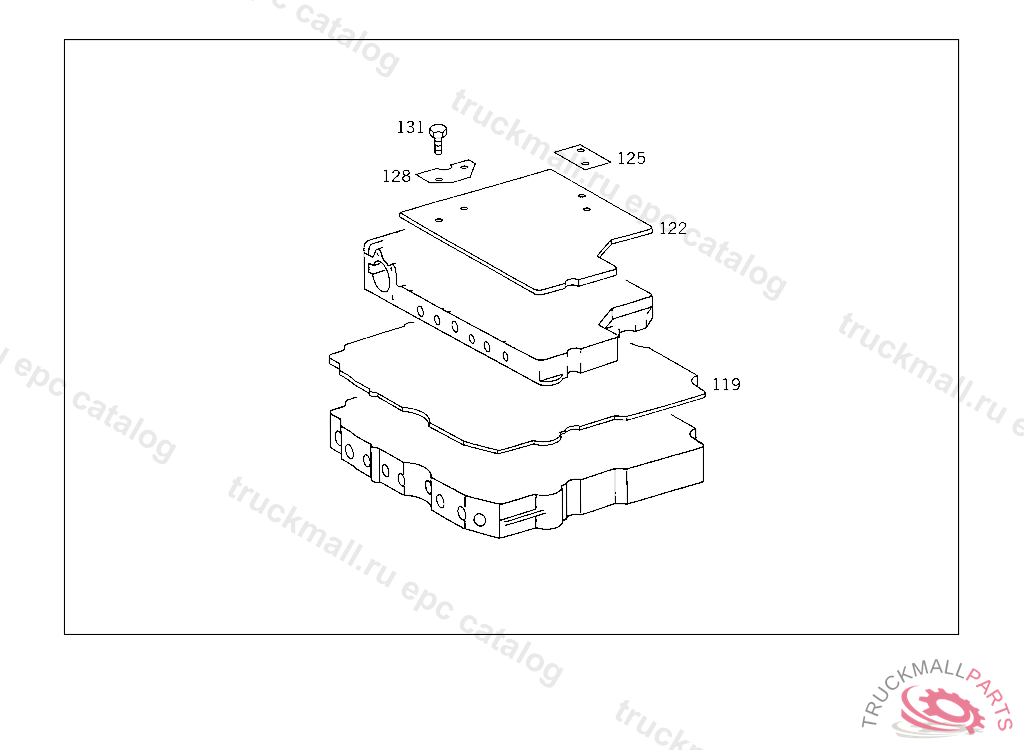

550 VALVE BODY ASSY.: OIL SEPARATOR PLATE, PISTON,RETARDER CONTROL PRESSURE IL. 2

Mercedes N304017006016 - Винт M 6 X 16 8.8

W 3 E 110/2,2 R 720.456

27 MERCEDES-BENZ AUTOMATIC TRANSMISSION - 550 VALVE BODY ASSY.: OIL SEPARATOR PLATE, PISTON,RETARDER CONTROL PRESSURE IL. 2

Поз.
Артикул
Описание
119
A3572771914
INTERMEDIATE PLATE VALVE BODY ASSEMBLY
122
A3572771983
LOCKING SHEET , FIRST EXHAUST STOCK OF OLD PARTS UP TO TRANSMISSION 003811, Replaced By: A3572773283
122
A3572773283
LOCKING SHEET VALVE BODY ASSEMBLY
125
A3572772983
LOCKING SHEET VALVE BODY ASSEMBLY
128
A3572773083
LOCKING SHEET VALVE BODY ASSEMBLY
131
N000933006183
SCREW , Replaced By: N304017006016
131
N304017006016
SCREW PUMP TO BRACKET
131
A3579900801
SCREW PISTON BODY TO VALVE BODY ASSEMBLY
999
A3579933601
SPRING OVERLAP 0.70X7.80X26.60,002577 EXCEPT FOR 002555,002566,002568.
