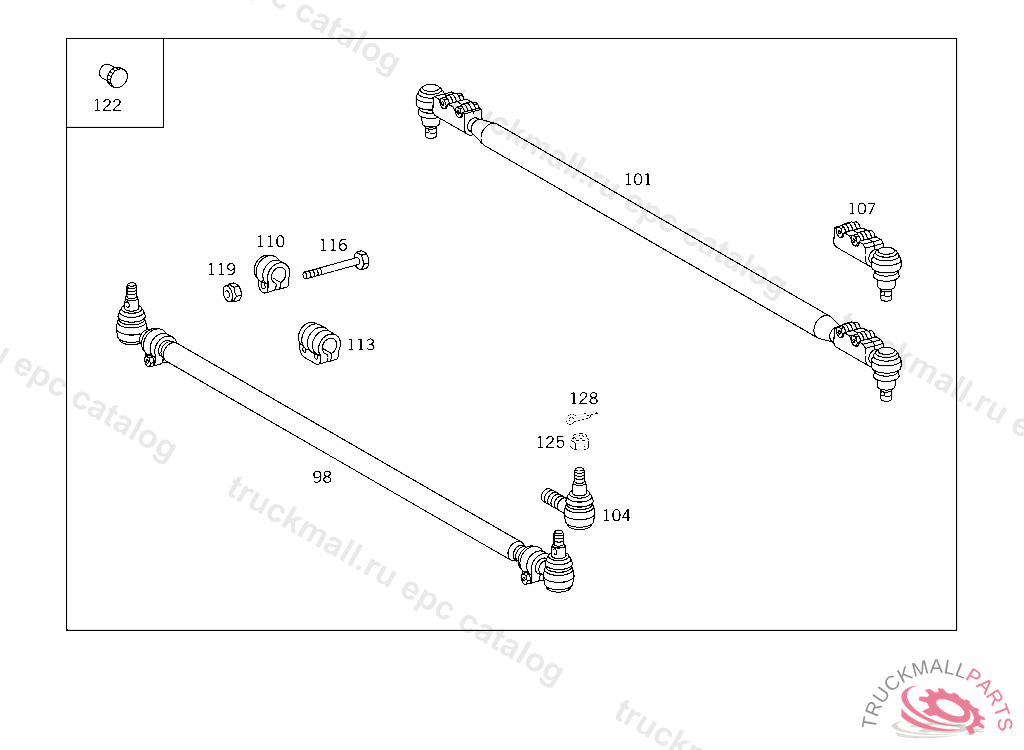

VO 3/9 DL-5 - 730.062 - 33 FRONT AXLE
Поз.
Артикул
Описание
101
TIE RODLEMFOERDER
101
TIE RODEHRENREICH,000490
107
JOINT L.H. THREAD LEMFOERDER
107
JOINT L.H. THREAD EHRENREICH,1 376534
107
JOINT R.H. THREAD LEMFOERDER
107
JOINT R.H. THREAD EHRENREICH
116
SCREW CONSOLE TO SIDE MEMBER
119
HEXAGON NUT
122
PLUG REAR PANEL
125
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
128
COTTER PINROCKINGER TYP 260 G140
