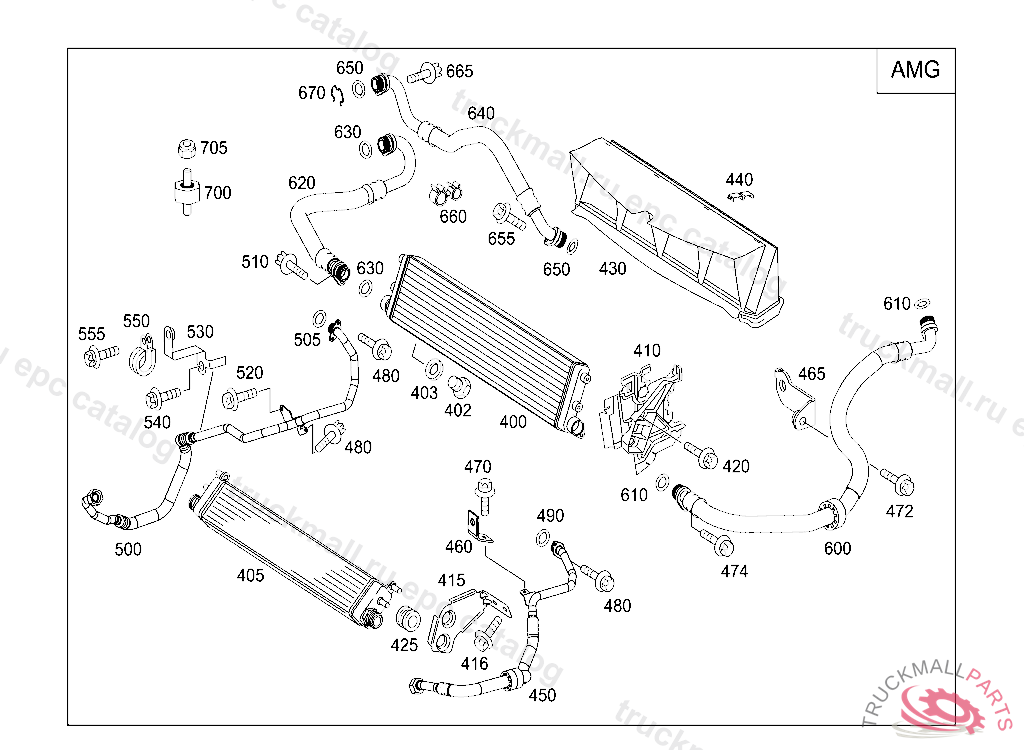

Поз.
Артикул
Описание
400
OIL COOLER FRONT
410
BRACKET OIL COOLER TO WATER COOLER, LEFT
410
BRACKET OIL COOLER TO WATER COOLER, RIGHT
410
HOLDER RH OIL COOLER TO WATER COOLER, RIGHT, A 10884320061109
410
HOLDER LH OIL COOLER TO WATER COOLER, LEFT, A 10884320061109
416
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
420
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
430
AIR BAFFLE TO OIL COOLER, A 29016920090630
430
AIR BAFFLE TO OIL COOLER
430
AIR DUCT TO OIL COOLER, A 29017020090630
440
CLAMP AIR DUCT PART MOUNTING
465
BRACKET INLET LINE TO COMPRESSOR
472
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
474
HEXALOBULAR BOLT. SCREW
480
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
490
SEAL RING OIL LINE TO OIL FILTER
500
OIL LINE RETURN
505
SEAL RING OIL LINE TO OIL FILTER
510
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
520
BOLT BRACKET FASTENING STARTER WIRING HARNESS M7X16
530
BRACKET RETURN LINE TO TIMING CASE
540
HEXALOBULAR BOLT. SCREW
550
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
600
OIL LINE FEED
610
SEAL RING OIL LINE TO OIL FILTER
620
OIL LINE RETURN
630
SEAL RING OIL LINE TO OIL FILTER
670
DETENT SPRING OIL LINE
