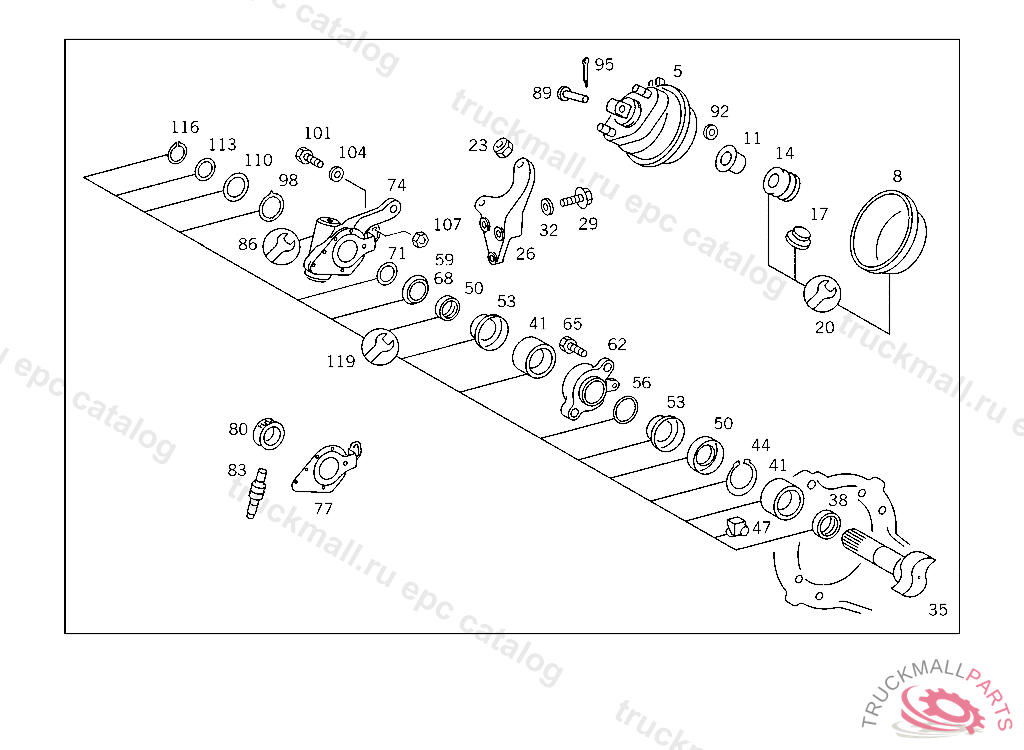

Поз.
Артикул
Описание
5
BRAKE CYLINDER (DIAPHRAGM CYLINDER),FRONT AXLE WABCO,16"
5
BRAKE CYLINDER (DIAPHRAGM CYLINDER)
8
DIAPHRAGMWABCO
8
DIAPHRAGM , Replaced By: A0004315428
17
PLUGTO 694 420 71 18/72 18
23
NUT COMBINATION CYLINDER TO BEARING BRACKET
26
BRAKE ANCHOR RIGHT,DIAPHRAGM CYLINDER
26
BRAKE ANCHOR LEFT,DIAPHRAGM CYLINDER
29
SCREW HYDRAULIC CLUTCH TO FOLLOWER DISC
29
SCREW , Replaced By: A9759900104
32
SEAL RING SUPPORT TO JOINT HOUSING
35
BRAKE CAMSHAFT , Replaced By: A6174210036
35
BRAKE CAMSHAFT , Replaced By: A6174210136
35
BRAKE CAMSHAFT LEFT
35
BRAKE CAMSHAFT RIGHT, ONLY INSTALL PARTS HAVING THE SAME PART NUMBER
38
SEAL RING OUTSIDE BEARING BRACKET
38
SEAL RING OUTSIDE BEARING BRACKET
38
SEAL RING OUTSIDE BEARING BRACKET
38
SEAL RING BRAKE CAMSHAFT BEARING
41
JOINT BEARING BEARING BRACKET
41
JOINT BEARING BEARING BRACKET
41
JOINT BEARING BRAKE CAMSHAFT BEARING IN CASE
44
SNAP RING BEARING BRACKET TO AXLE
44
SNAP RING BRAKE CAMSHAFT BEARING
47
GREASE NIPPLE FOR SPRING
50
SEAL RING INSIDE BEARING BRACKET
50
SEAL RING BRAKE CAMSHAFT BEARING IN CASE
50
SEAL RING INSIDE BEARING BRACKET
50
SEAL RING , Replaced By: A0129974147
50
SEAL RING INSIDE BEARING BRACKET
53
SEAL HOLDER , Replaced By: A9454230058
53
SEAL HOLDER BEARING BRACKET
56
SEAL RING BRAKE ANCHOR PLATE AND SUPPORTING SLEEVE TO JOINT HOUSING
59
SPACER WASHER BEARING BRACKET TO AXLE
62
BRAKE ANCHOR RIGHT BRAKE CAMSHAFT
62
BRAKE ANCHOR LEFT BRAKE CAMSHAFT
65
SCREW , Replaced By: A0009907404
65
SCREW STEERING ARM TO STEERING KNUCKLE M 16X70, SERRATED BOLT
65
SCREWM14X40
65
SCREW CROSS MEMBER TO SIDE MEMBERS M 16X1.5X60
74
ADJUSTER , Replaced By: A9454200538
74
ADJUSTER RIGHT
77
CONTROL UNIT
80
WORM GEAR"SAB"
83
WORM SCREW"SAB"
86
REPAIR KIT SLACK ADJUSTER "SAB"
89
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
92
WASHER SHIFT LEVER TO PIVOT PIN
95
COTTER PIN WHEEL CYLINDER TO SLACK ADJUSTER,4 637963
98
STOP WASHER SLACK ADJUSTER TO BRAKE SHAFT
101
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
104
WASHER TRAILER PLUG SOCKET TO BRACKET
107
NUT BATTERY CASE
110
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
110
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
110
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
110
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
113
SPACER WASHER ADJUSTER
116
LOCK RING ADJUSTER TO BRAKE CAMSHAFT
