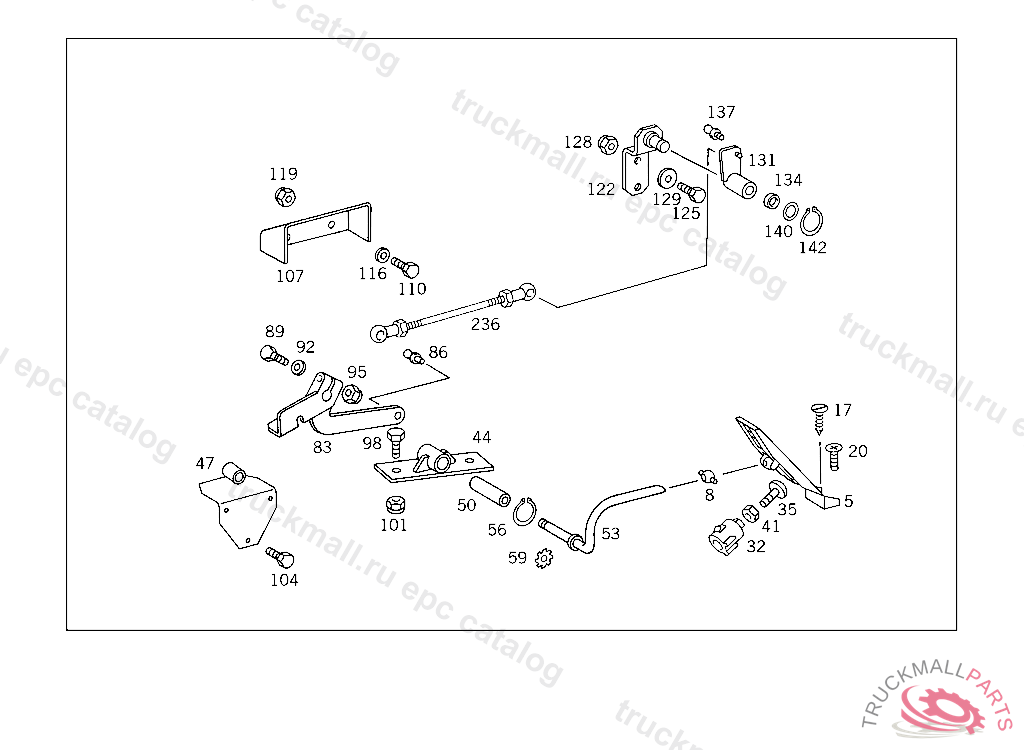

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
5
ACCELERATOR PEDAL
8
JOINT
20
SCREW PEDAL TO CAB FLOOR
32
STOP FULL THROTTLE
44
BEARING BRACKET ,D 209702
50
BUSHING ACCELERATOR CONTROL LINKAGE BEARING
50
BUSHING ,B 892893
53
LEVER (PEDAL LEVER)
56
LOCK RING. RETAINING RING ACCELERATOR PEDAL TO LEVER
83
LEVER (CONTROL LEVER),1B 915840
86
BALL STUD. BALL PIVOT TOP B10X4,5 MM
89
SCREW BRACKET TO FRAME
92
WASHER PLUG SOCKET TO BRACKET
95
NUT BRACKET TO FIRE WALL
98
SCREW SWITCH TO BRACKET 8X16
101
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
107
BRACKET TO PEDESTAL
110
SCREW DAMPING PAD TO SUPPORT M 8X45,B 884219
116
WASHER TRAILER PLUG SOCKET TO BRACKET
119
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
122
BRACKET AT LEFT SIDE MEMBER
