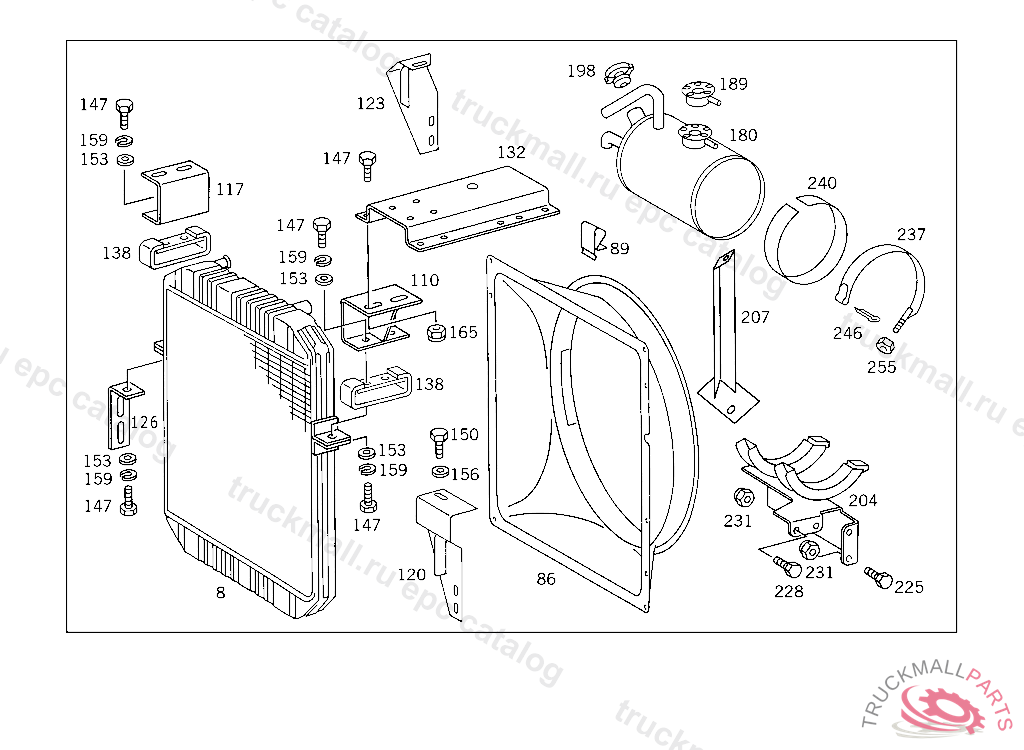

Поз.
Артикул
Описание
8
RADIATOR , Replaced By: A3845008003
8
RADIATOR WATER
8
RADIATOR WATER
8
RADIATOR WATER
86
FAN SHROUD RADIATOR
86
FAN SHROUD RADIATOR
86
FAN SHROUD RADIATOR
86
FAN SHROUD RADIATOR
89
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
110
BRACKET , Replaced By: A3845008331
110
BRACKET LEFT
117
BRACKET , Replaced By: A3845008431
117
BRACKET RIGHT
126
BRACKET , Replaced By: A3464296040
138
RUBBER MOUNTING RADIATOR
138
RUBBER MOUNTING RADIATOR
147
SCREW , Replaced By: N304017010040
147
SCREW , Replaced By: N304017010002
153
WASHER GROUND CABLE
159
LOCK WASHER , Replaced By: N912004010102
165
NUT BRACKET TO SIDE MEMBER,XB209706
180
TANK EXPANSION TANK
180
TANK EXPANSION TANK
189
VALVE
198
RADIATOR CAP
198
RADIATOR CAP FILLER NECK
204
BRACKET LEFT
225
SCREW , Replaced By: N304017010040
228
SCREW , Replaced By: N304017010002
231
NUT BRACKET TO SIDE MEMBER,XB209706
237
STRAP
240
RUBBER STRIP STRAP TO BRACKET
246
COTTER PIN6.3X63 MM
255
NUT LEVER TO SHIFTING SHAFT
999
RUBBER STRIP EXPANSION TANK TO SUPPORT
