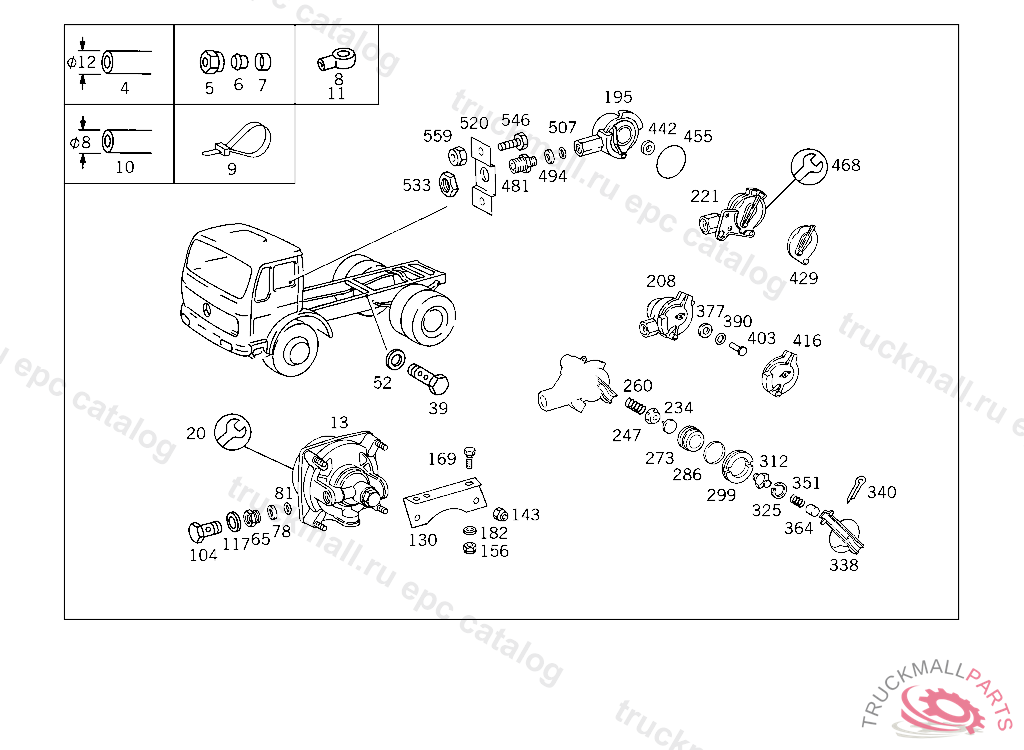

Поз.
Артикул
Описание
4
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
4
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
4
HOSE , Replaced By: A0009872827
5
UNION NUT LINE CONNECTION
5
UNION NUT LINE CONNECTION, Replaced By: N000000006239
6
SEAL CONE LINE CONNECTION
6
GLAND , Replaced By: A0019901967
7
SLEEVE LINE CONNECTION
8
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
8
BANJO UNION , Replaced By: N915052009009
9
LOOM TIE LINE MOUNTING 280 MM
10
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
11
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
11
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
13
BRAKE VALVE (TRAILER CONTROL VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
13
BRAKE VALVE (TRAILER CONTROL VALVE) "BOSCH"
20
REPAIR KIT TRAILER CONTROL VALVE TO 001 431 46 05,BOSCH
20
REPAIR KIT TRAILER CONTROL VALVE TO 001 431 52 05, WABCO
20
REPAIR KIT , Replaced By: A0014306160
39
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
52
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
65
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
78
THRUST RING CHECK VALVE TO AIR RESERVOIR
78
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
81
O-RING CHECK VALVE TO AIR RESERVOIR
104
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
117
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
130
BRACKET TRAILER CONTROL VALVE,4 637964
130
BRACKET TRAILER CONTROL VALVE
143
NUT STRAP TO BRACKET
143
NUT , Replaced By: N910113010000
156
NUT SUPPORT TO SIDE MEMBER
169
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
169
SCREW , Replaced By: N308676012026
182
WASHER
195
BRAKE LINE COUPLING , Replaced By: A0004297530
195
BRAKE LINE COUPLING AT REAR CROSS MENBER
208
BRAKE LINE COUPLING AT REAR CROSS MENBER
221
BRAKE LINE COUPLING AT REAR CROSS MENBER
234
VALVE DISCTO 000 429 48 30
247
VALVE DISCTO 000 429 48 30
260
SPRINGTO 000 429 16 30
273
VALVE PARTTO 000 429 16 30
286
GASKETTO 000 429 16 30
299
NUTTO 000 429 16 30
312
VALVE TAPPETTO 000 429 16 30
325
SNAP RINGTO 000 429 16 30
338
COVERTO 000 429 16 30,BOSCH
340
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
351
SPRINGTO 000 429 16 30
364
SPRING CAPSULETO 000 429 16 30
377
SEAL RINGTO 000 429 16 30
390
SEAL RINGTO 000 429 16 30
403
PIN
416
COVERTO 000 429 48 30
429
COVERWABCO
442
VALVE CONEBOSCH
455
SEAL RINGBOSCH
468
REPAIR KITWABCO
481
FITTING SHUTTLE VALVE
494
THRUST RING CHECK VALVE TO AIR RESERVOIR
494
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
507
O-RING CHECK VALVE TO AIR RESERVOIR
520
BRACKET AT BRAKE LINE COUPLING
520
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 686340, Replaced By: A3184291640
533
NUT BRACKET TO SIDE MEMBER
546
SCREW PIPE CLAMP
546
SCREW , Replaced By: N304017008021
559
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
559
NUT , Replaced By: N913004008001
999
REPAIR KITKNORR
