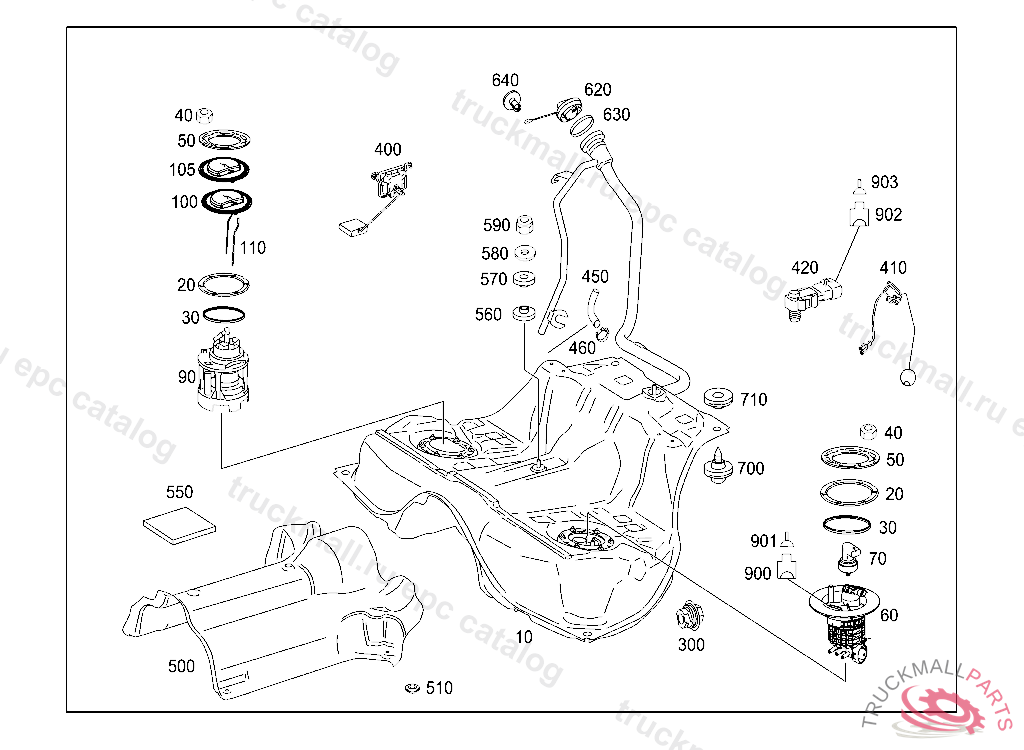

Поз.
Артикул
Описание
10
FUEL TANK
10
FUEL TANK
10
FUEL TANK
10
FUEL TANK , Replaced By: A2214704901
20
RING , OBSERVE WORK INSTRUCTIONS IN WIS WIS-NET#AP47.00-P-4750-TZV#
30
SEAL RING FASTENING FOR FUEL PUMP AND FUEL FILTER ON TANK
40
MULTIPLE NUT DELIVERY UNIT TO RESERVOIR
50
COVER RING PUMP TO RESERVOIR, OBSERVE WORK INSTRUCTIONS IN WIS WIS-NET#AP47.00-P-4750-TZV#
60
FUEL FILTER UNIT IN TANK AT LEFT WITHOUT FUEL LINES, OBSERVE WORK INSTRUCTIONS IN WIS WIS-NET#AP47.00-P-4750-TZV#
70
PRESSURE SENSOR
90
FUEL PUMP IN TANK AT RIGHT WITHOUT FUEL LINES, OBSERVE WORK INSTRUCTIONS IN WIS WIS-NET#AP47.00-P-4750-TZV#
100
CAP WITH INDEPENDENT HEATER CONNECTION
105
CAP DELIVERY UNIT
110
SUCTION LINE
300
COCK FUEL DISCHARGE
400
SENDER UNIT FUEL SUPPLY, RIGHT
410
FUEL GAUGE TRANSMITTER FUEL SUPPLY, LEFT
420
PRESSURE SENSOR
450
HOSE FILLER NECK TO FUEL TANK 25X4 MM
460
HOSE CLAMP. LOOM TIE (PRESSURE RELIEF VALVE)
510
LOCK. CLIP LICENSE PLATE FLAP
550
DAMPING STRIP FUEL TANK 40X40X4 MM
560
RUBBER SLEEVE , A 74703120041029 E 01999920070101
570
RUBBER SLEEVE
580
WASHER BRACKET TO FENDER,K 104588
590
HEXAGON NUT. NUT SPARE WHEEL CARRIER TO REAR END DOOR
620
FILLER CAP
620
FILLER CAP
630
SEAL RING FILLER CAP TO FILLER NECK
630
SEAL RING FILLER CAP
640
EXPANSION RIVET. RIVET
700
BOLT MOUNT FILLER NECK
710
BUSHING FILLER NECK TO BODY, BOTTOM
900
CLUTCH PLUG CONNECTION FOR FUEL PUMP WIRING HARNESS 7-PIN SLK2.8, MLK1.2,X36/3
901
SEAL. GASKET YELLOW,V 215932
901
GASKET ALTERNATOR 5.2 MM,G2
901
CRIMP RECEPTACLE CONTACT WITH SINGLE-WIRE SEAL 0.22-0.35 MM2 MLK1.2S
901
FEMALE CONTACT RELAY SUPPORT 2.5-4.0 MM2 SLK2.8,K100
901
GASKET
901
CONTACT SPRING. PLUG SOCKET0,5-1,0
902
PIN BUSHING HOUSING 3-POLE
903
PIN BUSHING WITH SINGLE-WIRE SEAL 0.75-1.5MM2 TO A0065427220
