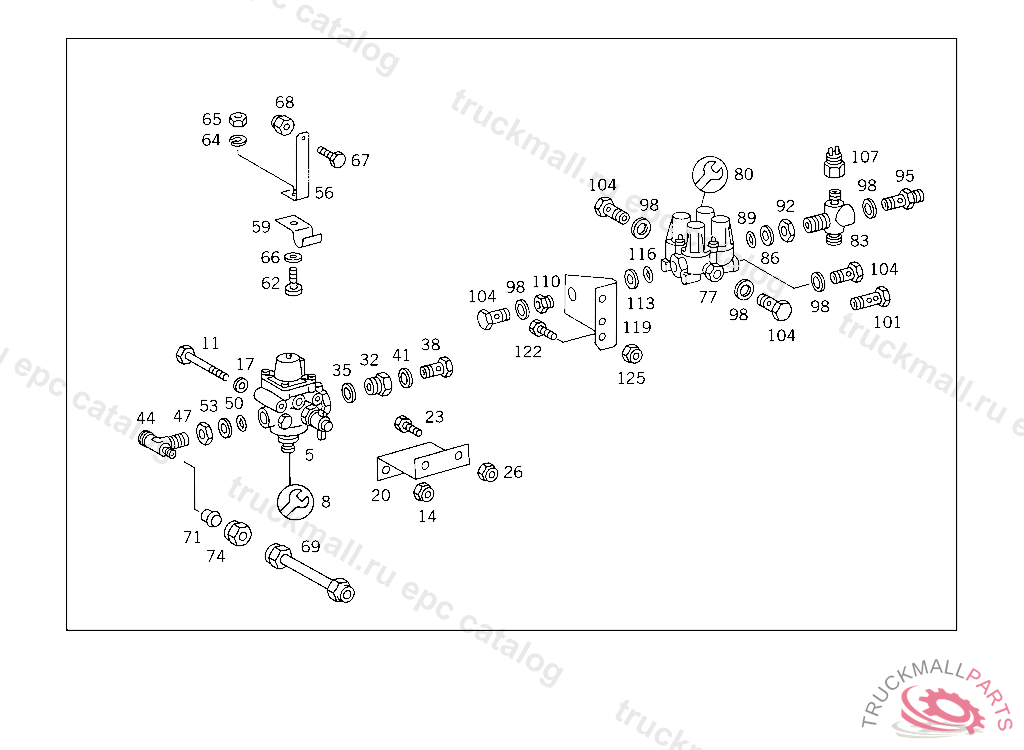

Поз.
Артикул
Описание
5
PRESSURE REGULATOR , Replaced By: A0024314306
5
PRESSURE REGULATORKNORR,5 7999995 800000 - 5 8127305 900000 - 5 936365
5
PRESSURE REGULATOR , Replaced By: A0024318306
5
PRESSURE REGULATOR , Replaced By: A0024314906
5
PRESSURE REGULATOR , Replaced By: A0024314906
8
REPAIR KIT VALVE KIT WABCO,5 148812
8
REPAIR KIT SEAL RING BOSCH,209
8
REPAIR KIT , Replaced By: A0004301107
8
REPAIR KIT DIAPHRAGM PART BOSCH,209
8
REPAIR KITTO 002 431 83 06
8
REPAIR KITTO 001 431 98 06
8
REPAIR KITTO 001 431 12 06, KNORR 3200
11
SCREW PRESSURE REGULATOR TO BRACKET M 8X75
14
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
14
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
17
WASHER TRAILER PLUG SOCKET TO BRACKET
20
BRACKET PRESSURE REGULATOR
20
BRACKET , Replaced By: A3944207086
23
SCREW , Replaced By: N304017010002
26
NUT BRACKET TO SIDE MEMBER,XB209706
32
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
35
SEAL RING LINE CONNECTION
38
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
41
SEAL RINGTO 006 997 00 72
44
T-FITTING PRESSURE REGULATOR,CONNECTION: "1"
47
NUT CHECK VALVE TO AIR RESERVOIR
50
O-RING CHECK VALVE TO AIR RESERVOIR
53
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
53
THRUST RING CHECK VALVE TO AIR RESERVOIR
56
BRACKET AT TRANSMISSION,B 965920
59
CLAMP , Replaced By: A6739950001
59
CLAMP , Replaced By: A3129952420
62
SCREW CLAMP TO BRACKET
62
SCREW CONTROL UNIT
64
LOCK WASHER CABLE TO FUSE BOX
65
NUT PUMP TO BRACKET
65
NUT
69
LINE FROM PRESSURE REGULATOR TO T-FITTING
71
GLAND , Replaced By: A0019901667
74
UNION NUT
77
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO
77
VALVE , Replaced By: A3454317406
77
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR
77
VALVE , Replaced By: A0024314006
77
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 087820, Replaced By: A0034315006
80
REPAIR KITTO 001 431 30 06
80
REPAIR KITTO 345 431 74 06
80
REPAIR KITTO 002 431 01 06
80
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE
80
REPAIR KITTO 002 431 01 06
83
CONNECTOR FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
86
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
89
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
92
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
95
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
95
HOLLOW SCREW FITTING SERVICE BRAKE VALVE,CONNECTION: "12"
98
SEAL RINGTO 006 997 00 72
104
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
107
SWITCH SUPPLY PRESSURE,5 966147
107
SWITCH RELAY VALVE,CONNECTION "2",RIGHT
110
FITTING AIR RESERVOIR,CONNECTION: "11"
113
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
113
THRUST RING CHECK VALVE TO AIR RESERVOIR
116
O-RING CHECK VALVE TO AIR RESERVOIR
119
BRACKET FOUR-CIRCUIT PROTECTIVE VALVE
122
SCREW CONSOLE TO SIDE MEMBER
125
NUT SUPPORT TO SIDE MEMBER
