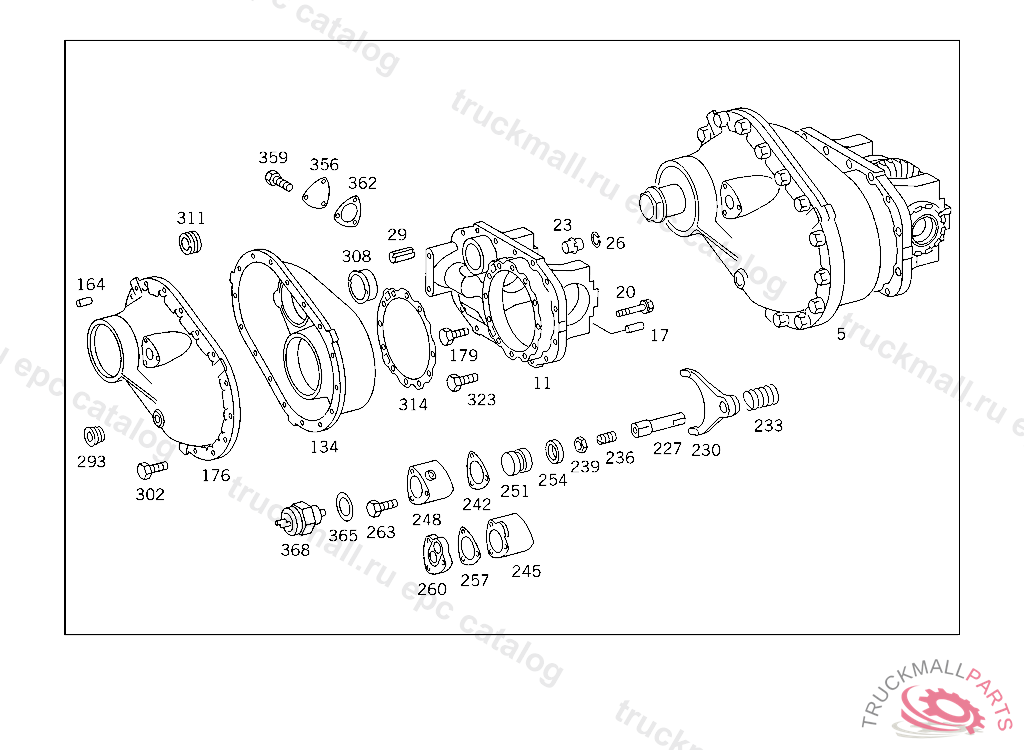

Поз.
Артикул
Описание
5
DIFFERENTIAL GEAR , Replaced By: A6583500920, +001A3553500745
11
AXLE HOUSING DIFFERENTIAL GEAR BEARING, MAN AXLE
17
CYLINDRICAL PIN , Replaced By: N000007008101
20
SCREW BEARING COVER TO AXLE HOUSING
23
PIN AXLE HOUSING
26
SNAP RING
29
PIN PINION HOUSING TO AXLE HOUSING
134
HOUSING (PINION HOUSING)
164
CYLINDRICAL PIN , Replaced By: N000007012218
176
COVER THROUGH DRIVE
179
SCREW RADIATOR PROTECTIVE GRILLE TO ANGLE
179
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
227
SHAFT SHIFTING ROD,232175
230
SHIFTING FORK LONGITUDINAL DIFFERENTIAL LOCK, MAN AXLE
233
SPRING SHIFTING FORK
236
HEADLESS SETSCREW TRANSVERSE DIFFERENTIAL LOCK
239
NUT
242
GASKET DIFFERENTIAL LOCK TO 355 353 02 80
245
CYLINDER , Replaced By: A3463530655, +003N000931008278, +001N007603018100
245
CYLINDER TRANSVERSE DIFFERENTIAL LOCK
251
PISTON TRANSVERSE DIFFERENTIAL LOCK
254
SEAL RING SHIFTING CYLINDER
257
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
260
COVER , Replaced By: A3463530655
263
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
293
SCREW PLUG BELL HOUSING
302
SCREW RADIATOR PROTECTIVE GRILLE TO ANGLE
302
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
308
SEAL HOLDER PINION HOUSING TO AXLE HOUSING
311
THREADED INSERT
314
SPACER WASHER PINION HOUSING,AS REQUIRED 1.00 MM, NOT USED
314
SPACER WASHER PINION HOUSING,AS REQUIRED 0.10 MM, NOT USED
314
SPACER WASHER PINION HOUSING,AS REQUIRED 0.15 MM
314
SPACER WASHER PINION HOUSING,AS REQUIRED 1.50 MM
314
SPACER WASHER DIFFERENTIAL HOUSING,AS REQUIRED 0.50 MM
323
SCREW BRACKET TO BRACKET
323
SCREW , Replaced By: A0069908101
356
COVER
359
SCREW , Replaced By: N304017008021
359
SCREW PIPE CLAMP
362
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
365
SEAL RING
368
SWITCH , Replaced By: A0015455709
368
SWITCH
999
REPAIR KIT. DIFFERENTIAL PINION THROUGH DRIVE
999
THRUST WASHER THROUGH DRIVE,AS REQUIRED 2.45 MM, NOT USED
999
BUSHING THROUGH-DRIVE DIFFERENTIAL GEAR,V 151343
999
SPACER RING DIFFERENTIAL PINION
999
SPACER RING THROUGH-DRIVE DIFFERENTIAL GEAR,V 151343
999
REPAIR KIT INTER-AXLE DIFFERENTIAL IN INDIVIDUAL COMPONENTS
999
SCREW IMPELLER TO COVER
