Поз.
Артикул
Описание

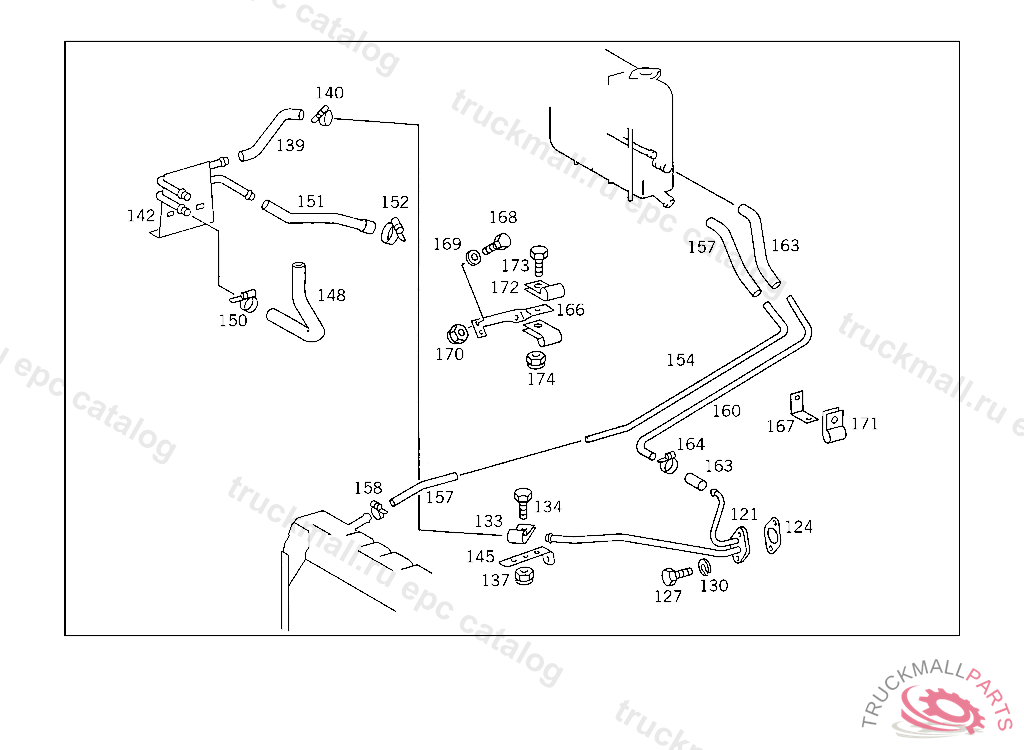

121
FLANGE AT ENGINE, WITH 387.134 ON VEHICLES HAVING NO MERCEDES BENZ CAB UP TO CHASSIS 4 367398
124
GASKET. SEAL DE-AERATION PIPE TO ENGINE
127
SCREW END PIECE TO EXHAUST PIPE M 10X25
130
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
133
CLAMP FEED LINE TO THERMOSTAT
133
CLAMP , Replaced By: A3609950601
134
SCREW , Replaced By: N304017008016
134
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
137
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
137
NUT , Replaced By: N913004008001
139
HOSE FROM FLANGE TO HEATING PIPE
140
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
140
CLAMP , Replaced By: N000000000667
142
LINE , Replaced By: A3835000072
142
LINE , Replaced By: A3875000072
142
LINE HEATING,MOUNTED TOGETHER WITH RADIATOR AT RUBBER BUFFER, 415 5 014668 416 5 000515 417 4 972023
145
BRACKET ENGINE CABLE HARNESS PLUG-CONNECTION,5 452356
148
HOSE FROM HEATING LINE TO HEATING LINE
148
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
150
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
150
CLAMP , Replaced By: N000000000667
151
HOSE , Replaced By: A3635060235
151
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR,5 534803
152
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
152
CLAMP , Replaced By: N000000000667
152
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
152
CLAMP25-40X13 MM
154
BREATHER PIPE VENTILATION, FROM RADIATOR TO EXPANSION TANK 1015 MM,4 635938
154
BREATHER PIPE VENTILATION, FROM RADIATOR TO EXPANSION TANK 985 MM,4 635939
157
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
158
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
158
CLAMP , Replaced By: N000000000667
160
BREATHER PIPE FROM ENGINE TO EXPANSION TANK,4 635939
160
BREATHER PIPE FROM ENGINE TO EXPANSION TANK,4 635938
163
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
164
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
164
CLAMP , Replaced By: N000000000667
166
BRACKET RADIATOR AND ENGINE BREATHING,AT ENGINE,4 635938
167
BRACKET FUEL LINE TO BELL HOUSING
167
BRACKET , Replaced By: A6454310740
168
SCREW EXHAUST PIPE TO BRACKET
168
SCREW REAR EXHAUST PIPE TO MUFFLER
169
WASHER , Replaced By: N000125010532
169
WASHER RADIATOR TO RUBBER MOUNTING
170
NUT , Replaced By: N910113010000
170
NUT STRAP TO BRACKET
171
CLAMP AT BRACKET
171
CLAMP , Replaced By: N916016011202
172
CLAMP , Replaced By: A6739950001
172
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
172
CLAMP DELIVERY AND SUCTION LINES TO STEERING
172
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
173
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
173
SCREW COVER PLATE TO BRACKET
173
SCREW , Replaced By: N304017008016
174
NUT , Replaced By: N913004008001
174
NUT , Replaced By: N913004006001
174
NUT PUMP TO BRACKET
174
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
SUPPORT RIGHT,4 232358
999
SUPPORT LEFT,4 232358
999
BRACKET , Replaced By: A3855010220
999
CLAMP , Replaced By: A3609951201
