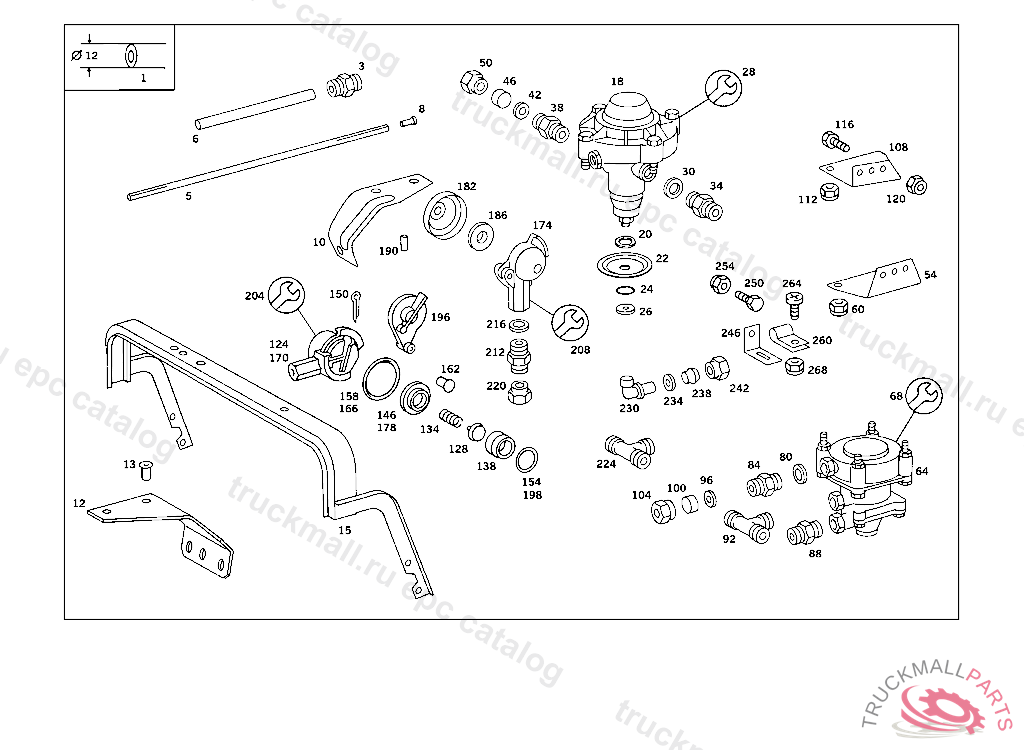

Поз.
Артикул
Описание
1
LINE12 MM, ORDER BY THE METER4 691315
3
FITTING DELIVERY LINE TO FRAME
3
FITTING (PARTS KIT),LINE RUPTURE
3
FITTING , Replaced By: A0029906171
3
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
3
FITTING
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
6
INSULATING HOSE COLOR CODE BLUE,YB227219
6
INSULATING HOSE
8
SLEEVE LINE CONNECTION
8
SLEEVE , Replaced By: N915062006000
10
BRACKET AT FRAME
12
BRACKET AT FRAME
13
RIVET , Replaced By: N910005012026
13
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
15
SUPPORT
18
BRAKE VALVE , Replaced By: A0004318705
18
BRAKE VALVEBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
20
CUPBOSCH
22
CUPBOSCH
24
CUPBOSCH
26
VALVE DISCTO 000 429 48 30
28
REPAIR KIT TRAILER CONTROL VALVE GRAU
28
REPAIR KIT , Replaced By: A0004303606
30
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
34
FITTING DELIVERY LINE TO PUMP
34
SCREW-IN FITTING OIL LINE CONNECTION
38
FITTING ,4 667210
42
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
46
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
50
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
54
BRACKET
54
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3874300610
60
NUT STRAP TO BRACKET
60
NUT , Replaced By: N910113010000
64
BRAKE VALVE TRAILER CONTROL VALVE BOSCH,4 375193 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
64
BRAKE VALVE , THE OLD PART MUST NO LONGER BE INSTALLED PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034313505
64
BRAKE VALVE TRAILER CONTROL VALVE WABCO,4 375193
64
BRAKE VALVE , Replaced By: A0014313705
68
REPAIR KITTO 001 431 48 05,4 375193
68
REPAIR KIT VALVE KIT TO 001 431 37 05,4 375193
68
REPAIR KITTO 001 431 37 05,4 375193
68
REPAIR KIT , Replaced By: A0024306581
68
BRAKE VALVE SEAL RING TO 001 431 18 05,4 412020
68
REPAIR KIT , Replaced By: A0004304606
68
REPAIR KITTO 001 431 34 05,4 375193
80
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
80
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
84
FITTING DELIVERY LINE TO PUMP
84
FITTING DELIVERY LINE TO PUMP
88
FITTING RELAY VALVE,CONNECTION: "40",5 359430
88
FITTING RELAY VALVE,CONNECTION: "40",5 359430
88
FITTING , Replaced By: A0029979572
92
FITTING CONNECTION: 4
96
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
100
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
104
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
108
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3894300010
108
BRACKET , Replaced By: A3894300110
108
BRACKET ,4 667210
108
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3874300710
108
BRACKET TRAILER CONTROL VALVE
112
NUT , Replaced By: N913004008001
112
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
112
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
116
SCREW , Replaced By: N304017008021
116
SCREW PIPE CLAMP
120
NUT , Replaced By: N913004008001
120
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
120
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
124
BRAKE LINE COUPLING , Replaced By: A0004297530
124
BRAKE LINE COUPLING AT REAR CROSS MENBER
124
BRAKE LINE COUPLING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004296730
124
BRAKE LINE COUPLING AT REAR CROSS MENBER
124
BRAKE LINE COUPLING AT REAR CROSS MENBER
124
BRAKE LINE COUPLING AT REAR CROSS MENBER
124
BRAKE LINE COUPLING AT REAR CROSS MENBER
124
BRAKE LINE COUPLING AT REAR CROSS MENBER
128
VALVE DISCTO 000 429 48 30
134
SPRINGTO 000 429 16 30
138
GASKETTO 000 429 16 30
146
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
146
THRUST RING CHECK VALVE TO AIR RESERVOIR
150
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
154
SEAL RINGTO 000 429 16 30
158
SEAL RINGTO 000 429 16 30
162
PIN
162
SEAL RINGTO 000 429 16 30
166
SEAL RINGTO 000 429 75 30
170
BRAKE LINE COUPLING SUPPLY, RED
170
BRAKE LINE COUPLING , Replaced By: A0004297830
170
BRAKE LINE COUPLING SUPPLY, RED
170
BRAKE LINE COUPLING SUPPLY, RED
170
BRAKE LINE COUPLING SUPPLY, RED
170
BRAKE LINE COUPLING BRAKE,YELLOW BOSCH
174
BRAKE LINE COUPLING BRAKE,YELLOW BOSCH
174
BRAKE LINE COUPLING , Replaced By: A0004297930
174
BRAKE LINE COUPLING BRAKE,YELLOW WESTINGHOUSE
174
BRAKE LINE COUPLING BRAKE,YELLOW GRAU
174
BRAKE LINE COUPLING BRAKE,YELLOW KNORR
178
SEAL RING , Replaced By: A0004296930
178
BRAKE LINE COUPLINGTO 000 429 38 30
178
SEAL RINGTO 000 429 38 30
182
COVERTO 000 429 51 30,4 434235
182
COVER"WABCO", NOT USED
186
SEAL RING"WABCO"
190
GROOVED PINTO 000 429 51 30,4 434235
196
COVERTO 000 429 49 30
198
SEAL RING"GRAU"
204
REPAIR KITTO 000 429 37 30
204
REPAIR KITTO 000 429 63 30
204
REPAIR KIT , TO 000 429 49 304 434235
208
REPAIR KIT"KNORR"
212
FITTING , Replaced By: A0029971372
212
FITTING SHUTTLE VALVE
212
FITTING BRAKE LINE COUPLING TO BRACKET
216
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
220
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
224
FITTING , Replaced By: A0009909970
224
T-FITTING 3/2-WAY VALVE,CONNECTIONS: "30,50"
224
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
230
FITTING ,4 667210
234
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
234
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
238
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
242
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
246
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
246
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
246
BRACKET , Replaced By: A3812950440
250
SCREW PIPE CLAMP
250
SCREW , Replaced By: N304017008021
254
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
254
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
254
NUT , Replaced By: N913004008001
260
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
260
CLAMP ,K 147121, Replaced By: N000000000319
260
CLAMP , Replaced By: N916016008200
260
CLAMP , Replaced By: A3604300143
260
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
264
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
268
NUT PUMP TO BRACKET
268
NUT , Replaced By: N913004006001
999
VALVE CONEBOSCH
999
COVERTO 000 429 48 30
999
COVERWABCO
999
SEAL RING , Replaced By: A0004292184
999
REPAIR KITKNORR
999
COVERTO 000 429 16 30,BOSCH
999
SPRING CAPSULETO 000 429 16 30
999
NUTTO 000 429 16 30
999
VALVE PARTTO 000 429 16 30
999
VALVE TAPPETTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
SPRINGTO 000 429 16 30
999
PLUG FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KITWABCO
999
PLUG EXHAUST BRAKE VALVE, CONNECTION: "20"
999
SUPPORT
999
SNAP RINGTO 000 429 16 30
999
NUT BRACKET TO SIDE MEMBER
