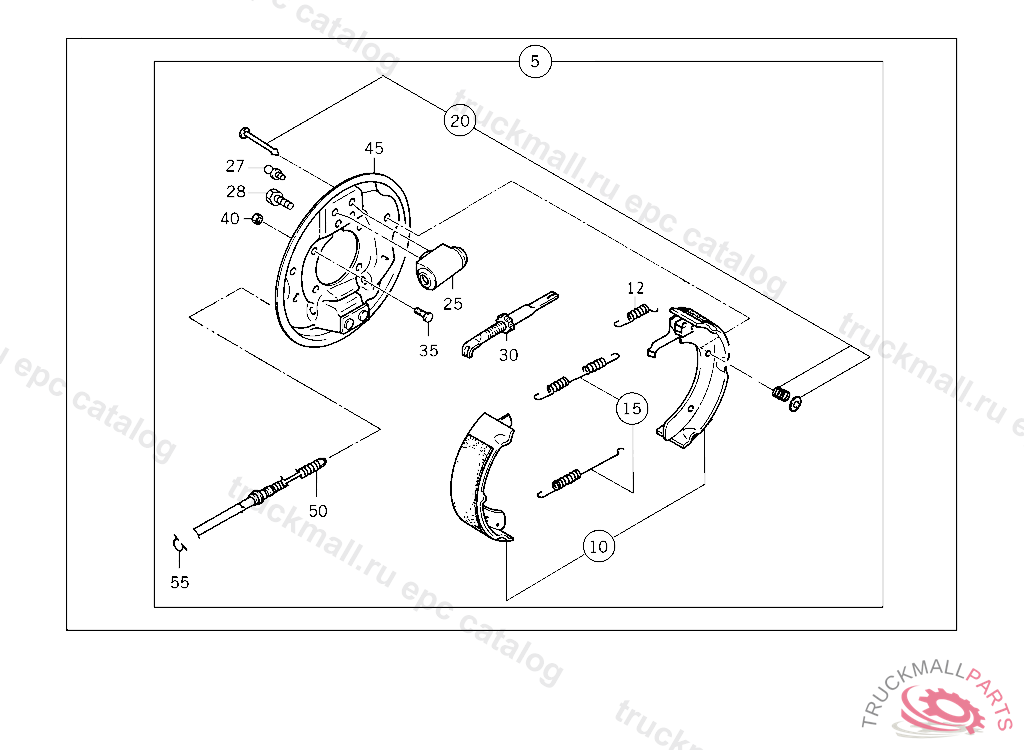

AXLE N/N - 741.634 - 42 REAR WHEEL BRAKE
Поз.
Артикул
Описание
5
REAR WHEEL BRAKE RIGHT
5
REAR WHEEL BRAKE LEFT
10
BRAKE SHOE PARTS KIT, ONLY REPLACEABLE BY THE SET
12
SPRING
15
SPRING PARTS KIT
20
THRUST PIN PARTS KIT
25
WHEEL BRAKE CYLINDER LEFT AND RIGHT
27
BLEEDER VALVE
28
BOLT
30
ADJUSTER RIGHT
30
ADJUSTER LEFT
35
SCREW REAR WHEEL BRAKE TO CONTROL ARM
40
NUT BRACKET TO SIDE MEMBER,XB209706
45
BRAKE ANCHOR PLATE LEFT
45
BRAKE ANCHOR PLATE RIGHT
50
BRAKE CABLE LEFT
50
BRAKE CABLE RIGHT
50
BRAKE CABLE , Replaced By: A6614208285
50
BRAKE CABLE , Replaced By: A6614208185
55
LOCKK 49203-03001
