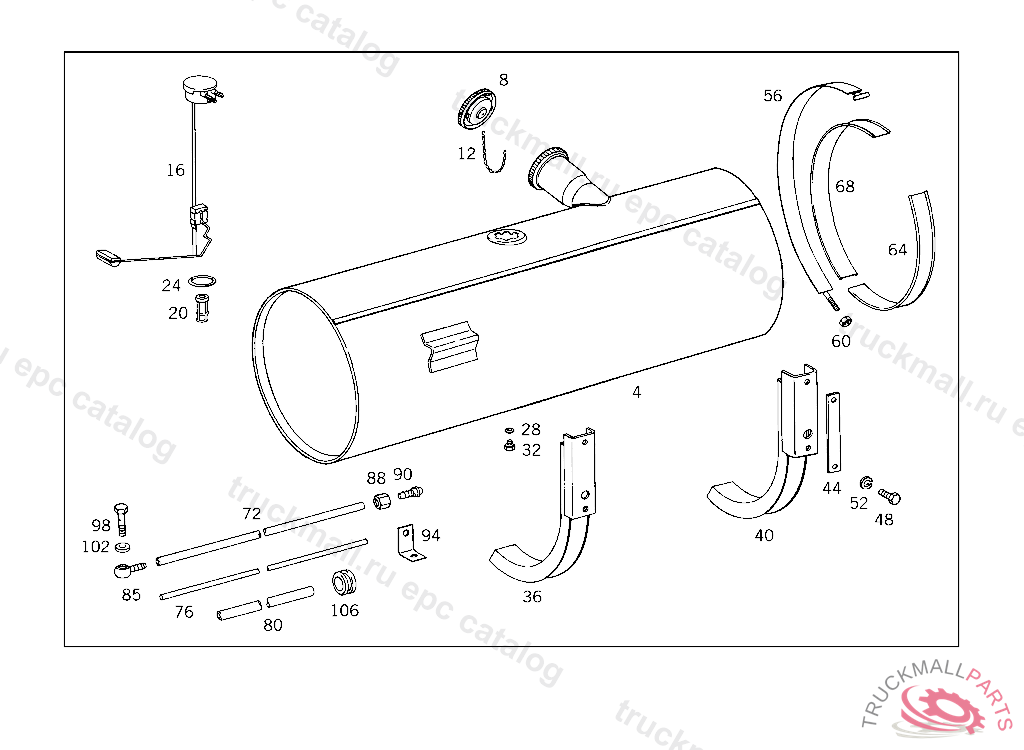

Поз.
Артикул
Описание
4
FUEL TANK , Replaced By: A3874701501
4
FUEL TANK , Replaced By: A3874701301
4
FUEL TANK , Replaced By: A3554700101
4
FUEL TANK200 L
8
FILLER CAP , Replaced By: A0004700305
8
FILLER CAP , Replaced By: A0004717930
8
FILLER CAP , Replaced By: A0004700305
8
FILLER CAP
8
FILLER CAP , Replaced By: A0004700305
12
CHAIN FILLER CAP
16
SENDER UNIT , Replaced By: A0055423817
16
SENDER UNIT , Replaced By: A0085428017
16
SENDER UNIT FUEL GAUGE
20
FUEL STRAINER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 261141, Replaced By: A0004710235
20
FUEL STRAINER FUEL TANK,K 169122
24
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
28
SEAL RING FUEL LINE TO FEED PUMP
32
SCREW PLUG , Replaced By: N007604014110
32
SCREW PLUG FUEL TANK
36
SUPPORT , Replaced By: A3874703342
36
SUPPORT , Replaced By: A3874703342
36
SUPPORT FUEL TANK TO FRAME
40
SUPPORT , Replaced By: A3874703242
40
SUPPORT FUEL TANK TO FRAME
44
SHIM SUPPORT TO SIDE MEMBER
48
SCREW BRACKET TO CAB CONSOLE,K 035197
52
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
56
STRAP ,5 149419, Replaced By: A6204700340, +001N000934012022
56
STRAP FUEL TANK TO CONSOLE,5 149420
60
NUT STRAP TO SUPPORT,5 149419
60
NUT STRAP TO SUPPORT
64
PAD , Replaced By: A3634750220
64
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
68
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
72
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
76
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
80
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
85
BANJO UNION , Replaced By: N000000000363
88
UNION NUT FUEL HOSE
90
FITTING RETURN
94
BRACKET , Replaced By: A6454310740
94
BRACKET FUEL LINE TO BELL HOUSING
98
HOLLOW SCREW , Replaced By: N915036010108
98
HOLLOW SCREW FUEL LINE TO FEED PUMP
102
SEAL RING FUEL LINE TO FEED PUMP
106
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
999
CLAMP , Replaced By: N000000000665
999
SLEEVE FEED
999
NUT , Replaced By: N910113014001
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW , Replaced By: N304017008034
999
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
BRACKET FUEL LINES TO TRANSMISSION
999
CONNECTOR RIGHT,177-LITER
999
BRACKET , Replaced By: A6205240340
999
HOSE LEAK LINE
999
SEAL RING
999
SENDER UNIT ,4 312464, Replaced By: A0045423717, +002A3054760126, +001A3879900078
999
SENDER UNIT ,4 261141, Replaced By: A0045423717, +001A0004710235, +002A3054760126, +001A3879900078
999
CLIP LEAK LINE
999
SENDER UNIT , Replaced By: A0045423717, +001A0004710235, +001A3054760126, +002A3879900078
999
LOOM TIE LINE MOUNTING
999
LOOM TIE LINE MOUNTING 280 MM
999
EXPANSION PLUG
