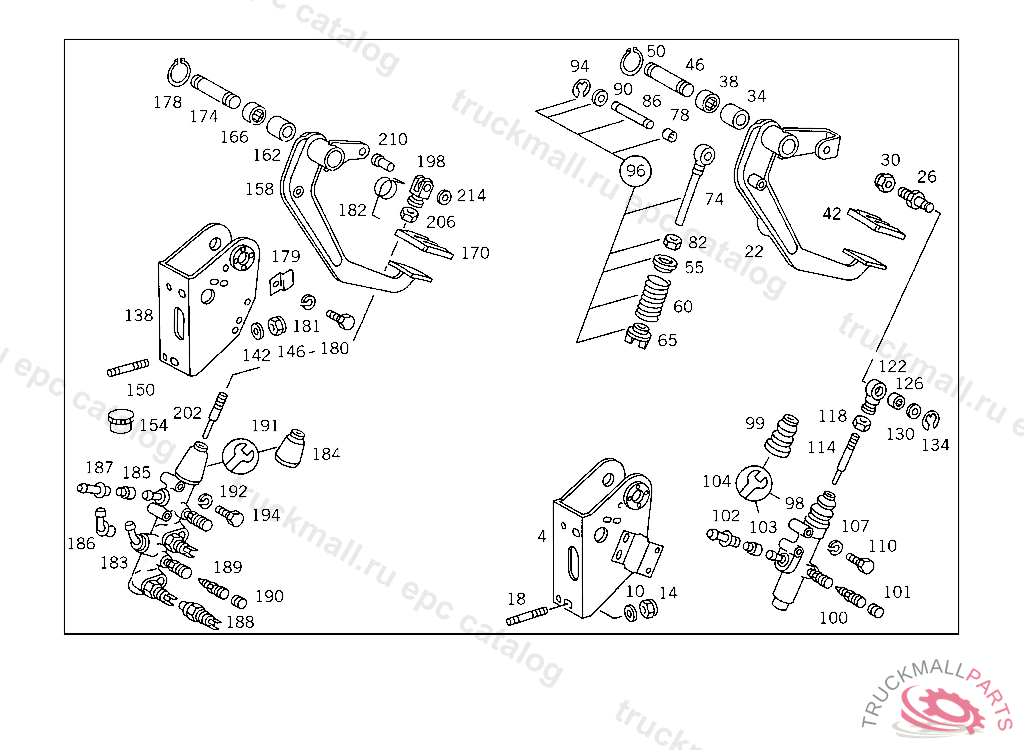

Поз.
Артикул
Описание
4
BEARING BRACKET CLUTCH, IN CASE OF PEDAL BEARING BRACKET WITH SHIMS,DELIVER ADDITIONALLY: 3X 000939 008136,1X 620 290 03 34 UP TO IDENT NO. 5 238024, SEE SERVICE INFORMATION 29/4
4
BEARING BRACKET ,4 247126 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 655107, Replaced By: A3812901219
4
BEARING BRACKET ,4 247125, Replaced By: A3812901319, +001A3812901016, +001A3812910073, +001A3812910574, +001A3812940707, +001A3819930710, +001N000933006102, +001N912004006102
10
WASHER EXHAUST MUFFLER TO STRAP
10
WASHER , Replaced By: N000125008443
14
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
14
NUT , Replaced By: N913004008001
18
STUD BOLT BRACKET TO CROSS MEMBER
18
STUD BOLT BRACKET TO TRANSMISSION
22
PEDAL CLUTCH PEDAL,4 915383
22
PEDAL , 415 5 014669 416 5 000516 417 4 972024, Replaced By: A6202900216
22
PEDAL , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 4 972492, Replaced By: A6202900216, +001A3529902101, +001N000439008211
22
PEDAL , Replaced By: A3812901016
22
PEDAL ,4 247125, Replaced By: A3812900916, +001A3812901319, +001A3812910073, +001A3812910574, +001A3812940707, +001N000933006102, +001N912004006102
26
PIN CLUTCH PEDAL,5 238024
30
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
30
NUT , Replaced By: N913004008001
34
SPACER TUBE CLUTCH PEDAL
38
NEEDLE BEARING
38
NEEDLE BEARING , Replaced By: A0119813410
38
NEEDLE BEARING , Replaced By: A0119813410
42
PAD BRAKE
42
PAD , Replaced By: A1072910182
46
PIVOT PIN PEDAL TO BEARING BRACKET
46
PIVOT PIN PEDAL TO BEARING TUBE,4 257007
50
LOCK RING
50
LOCK RING
55
SPRING RETAINER SPRING TO PUSH ROD
60
SPRING (DEAD CENTER SPRING) 23.2 MM
60
SPRING (DEAD CENTER SPRING) 35 MM
65
SPRING RETAINER SPRING TO PUSH ROD
65
SPRING RETAINER , Replaced By: A3092910091
65
BUSHING , Replaced By: A3092910091
65
BRACKET , Replaced By: A3092910091
74
ROD OVER-CENTER ACTING SPRING
74
ROD OVER-CENTER ACTING SPRING
74
ROD , Replaced By: A3812910233
78
NEEDLE BEARING JOINT TO PIN
78
NEEDLE BEARING JOINT TO PIN
78
NEEDLE BEARING JOINT TO PIN
78
NEEDLE BEARING JOINT TO PIN
78
NEEDLE BEARING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0059814410
82
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
86
PIN PUSH ROD TO PEDAL
86
PIN PUSH ROD TO PEDAL,4 247125
90
WASHER BRACKET TO CROSS MEMBER
94
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
96
REPAIR KIT DEAD CENTER SPRING
98
MASTER CYLINDER CLUTCH,LESS DE-AERATION
98
MASTER CYLINDER , Replaced By: A0012956006
98
MASTER CYLINDER , Replaced By: A0012952906
99
BOOTTO 001 295 30 06
99
BOOT
100
VALVE CLUTCH SLAVE CYLINDER
100
VALVE , Replaced By: A3075530107
101
PROTECTIVE CAP , Replaced By: A0004217187
101
PROTECTIVE CAP ,5 962906
101
PROTECTIVE CAP , Replaced By: A0004217187
101
PROTECTIVE CAP , Replaced By: A0004210887
102
INTERMEDIATE PIECE CLUTCH MASTER CYLINDER
103
PLUG
103
PLUG , Replaced By: A0009971186
104
REPAIR KIT TO MASTER CYLINDER HAVING SYNTHETIC PISTON TO 001 295 60 06
104
REPAIR KIT TO MASTER CYLINDER HAVING ALUMINUM PISTON TO 000 295 68 06,001 295 29 06
104
REPAIR KIT , Replaced By: A0002903412
107
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
110
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
114
ROD MASTER CYLINDER
118
NUT
118
NUT , Replaced By: N304035008001
122
ARTICULATION PIECE CLUTCH MASTER CYLINDER
122
ARTICULATION PIECE CLUTCH MASTER CYLINDER
122
END PIECE , Replaced By: A0009961045
126
NEEDLE BEARING JOINT TO PIN
126
NEEDLE BEARING JOINT TO PIN
126
NEEDLE BEARING JOINT TO PIN
126
NEEDLE BEARING JOINT TO PIN
126
NEEDLE BEARING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0059814410
130
WASHER BRACKET TO CROSS MEMBER
134
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
138
BEARING BRACKET BRAKE, 415 5 014668 416 5 000515 417 4 972023
138
BEARING BRACKET ,4 247125, Replaced By: A3812901519, +001A3812910073, +001A3812940707, +001N000127006205, +001N000933006102
142
WASHER EXHAUST MUFFLER TO STRAP
142
WASHER , Replaced By: N000125008443
146
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
146
NUT , Replaced By: N913004008001
150
STUD BOLT BRACKET TO TRANSMISSION
154
PLUG CAB FLOOR SEALING
158
PEDAL BRAKE, 415 5 014668 416 5 000515 417 4 972023
162
SPACER TUBE CLUTCH PEDAL
166
NEEDLE BEARING
166
NEEDLE BEARING , Replaced By: A0119813410
166
NEEDLE BEARING , Replaced By: A0119813410
170
PAD BRAKE
170
PAD , Replaced By: A1072910182
174
PIVOT PIN PEDAL TO BEARING BRACKET
174
PIVOT PIN PEDAL TO BEARING TUBE,4 257007
178
LOCK RING
178
LOCK RING
179
LOCK PEDAL TO BEARING BRACKET
180
SCREW COVER PLATE TO BRACKET
181
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
182
SPRING BRAKE PEDAL RELEASE SPRING, 415 5 014668 416 5 000515 417 4 972023
183
MASTER CYLINDER FOR BRAKE VALVE,SEE GROUP 42, 415 5 014669 416 5 000516 417 4 972024
184
BOOT , Replaced By: A0005864729
185
BUSHING , 415 5 014668 416 5 000515 417 4 972023
185
BUSHING , Replaced By: A0004310950
185
SCREW PLUG , Replaced By: A0002950050
186
INTERMEDIATE PIECE DEPARTURE ANGLE DEGREE: 45, 415 5 014668 416 5 000515 417 4 972023
187
INTERMEDIATE PIECE DEPARTURE ANGLE DEGREE: 90, 415 5 014668 416 5 000515 417 4 972023
188
SWITCH BRAKE FLUID TELL-TALE LAMP, 415 5 014668 416 5 000515 417 4 972023
188
SENDER UNIT , Replaced By: A0005455509
189
VALVE CLUTCH SLAVE CYLINDER
189
VALVE , Replaced By: A3075530107
190
PROTECTIVE CAP , Replaced By: A0004217187
190
PROTECTIVE CAP ,5 962906
190
PROTECTIVE CAP , Replaced By: A0004217187
190
PROTECTIVE CAP , Replaced By: A0004210887
191
REPAIR KIT MASTER CYLINDER, 415 5 014668 416 5 000515 417 4 972023
191
REPAIR KIT , Replaced By: A0005864729
192
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
194
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
198
YOKE PISTON ROD AND PUSH ROD, 415 5 014668 416 5 000515 417 4 972023
202
ROD PISTON ROD AND PUSH ROD, 415 5 014668 416 5 000515 417 4 972023
206
NUT
206
NUT , Replaced By: N304035008001
210
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
210
PIN , Replaced By: A3529910007
214
WASHER VIBRATION ABSORBER TO BRACKET
214
WASHER , Replaced By: N000433010510
999
VALVE , Replaced By: A0009885435
999
INTERMEDIATE PIECE CLUTCH HOSE,K 172342
999
JOINT BEARING ROD TO CLUTCH PEDAL,4 247125
999
JOINT BEARING ROD TO CLUTCH PEDAL,4 247125
999
CLIP CABLE HARNESS TO ROOF RAIL
999
CAP RESERVOIR DE-AERATION
999
LOCK STOP TO BEARING BRACKET
999
SPACER TUBE COMPRESSED AIR LINE BRACKET
999
GROMMET BATTERY CASE
999
BRACKET , Replaced By: A3464296040
999
BRACKET OIL LINE MOUNTING
999
BRACKET JOINT TO FRAME,4 645187
999
BRACKET , Replaced By: A3464296440
999
CLAMP , Replaced By: N916016008200
999
CLAMP , Replaced By: A3604300143
999
CLAMP LINE MOUNTING
999
LINE , Replaced By: A3812901714
999
LINE , Replaced By: A3812903214
999
LINE , Replaced By: A3812902513
999
LINE FROM HYDRAULIC LINE TO CONNECTION FITTING 2000 MM, NOT USED
999
LINE FROM FITTING TO CLUTCH BOOSTER 3000 MM
999
LINE , Replaced By: A3812902214
999
LINE , Replaced By: A3812902513
999
LINE , Replaced By: A3812902513
999
LINE FROM VALVE TO CONNECTION FITTING,K 172343
999
LINE , Replaced By: A3812902414
999
STOP , Replaced By: A3812910186
999
STOP PEDAL ASSEMBLY
999
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
999
LEVER ,4 391855, Replaced By: A3815450144, +001A0005456909
999
LEVER STOP LIGHT SWITCH, 415 5 014668 416 5 000515 417 4 972023
999
SPRING , Replaced By: A3819930710
999
SPRING CLUTCH PEDAL RESET
999
GROMMET TEMPERATURE GAUGE SENDER UNIT
999
GROMMET , Replaced By: A3149970581
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 4 337905- 4 413470, Replaced By: A3852952140
999
BRACKET HYDRAULIC LINE, 415 5 014668 416 5 000515 417 4 972023
999
BRACKET HOSE TO TRANSMISSION,4 263013, 002,006, 4 276783, 034,134
999
BRACKET BRAKE AND CLUTCH LINES, 415 5 014668 416 5 000515 417 4 972023
999
BRACKET HIGH PRESSURE HOSE
999
BRACKET HYDRAULIC LINE TO CAB, 415 5 014668 416 5 000515 417 4 972023
999
BRACKET BRACKET TO CAB FLOOR,4 655107
999
BRACKET HYDRAULIC LINE TO CAB, 415 5 014668 416 5 000515 417 4 972023
999
PIPE WITH BEAD, MASTER CYLINDER COUPLING TO EXPANSION RESERVOIR, 415 5 014668 416 5 000515 417 4 972023
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
COTTER PIN CYLINDER TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
LOCK RING , Replaced By: A0079942041
999
SCREW VALVE TO BRACKET
999
SCREW CLUTCH TO FLYWHEEL
999
SCREW CAB FLOOR COVERING M 6X25
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
NUT BALL PIVOT TO LEVER
999
SCREW BRACKET TO SIDE MEMBER
999
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
999
SCREW PIPE CLAMP
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
CLAMP HOSE TO CAB,4 238841
999
CLAMP LINE MOUNTING,4 257007
999
NUT STRAP TO BRACKET
999
NUT BRACKET TO SIDE MEMBER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N910113014001
999
CLAMP ,K 147121, Replaced By: N000000000319
