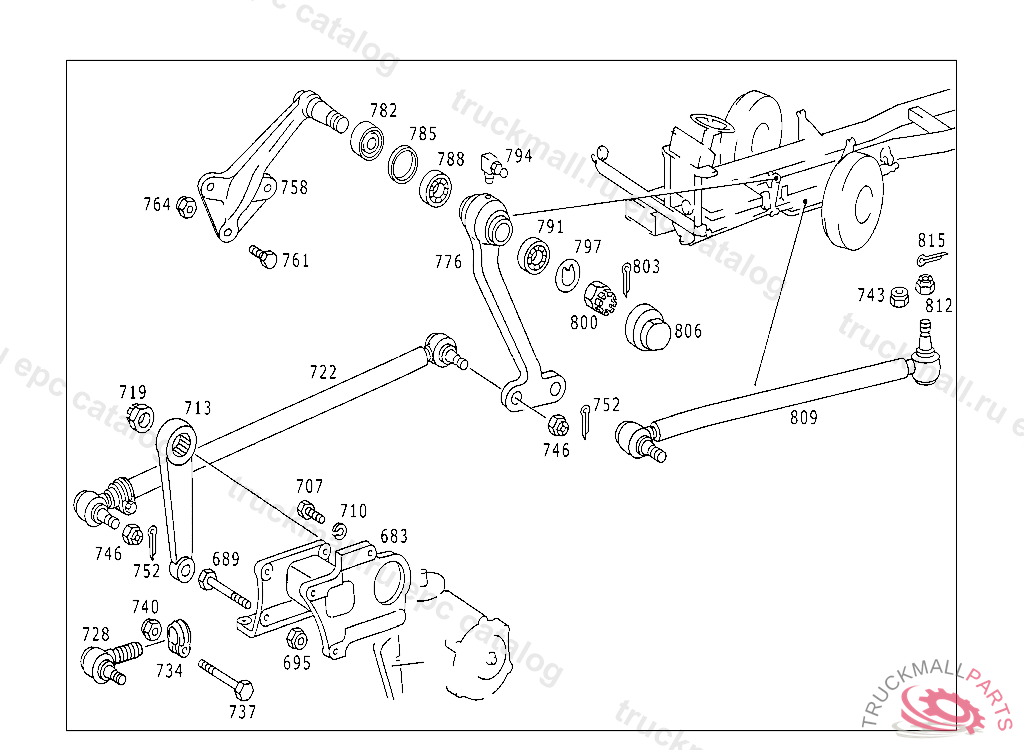

Поз.
Артикул
Описание
683
STEERING SUPPORT STEERING TO FRAME
683
STEERING SUPPORT STEERING TO FRAME
689
SCREW STEERING SUPPORT TO FRAME M 14X50
689
SCREW STEERING SUPPORT TO FRAME M 14X55
695
NUT STEERING SUPPORT TO FRAME
707
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
707
SCREW , Replaced By: N308676016007
710
LOCK WASHERROCKINGER TYP 59 G140,59 G150
713
PITMAN ARM
713
PITMAN ARM
719
NUT PITMAN ARM TO STEERING BOX ASSEMBLY,5 386585
719
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
722
DRAG LINK FROM PITMAN ARM TO INTERMEDIATE LEVER LEMFOERDER
722
DRAG LINK , Replaced By: A3964604805
728
DRAG LINK END , Replaced By: A0004602848
728
DRAG LINK END , Replaced By: A0014600848
728
DRAG LINK END , Replaced By: A0014602248
728
DRAG LINK END , Replaced By: A0014607748
728
DRAG LINK END R.H. THREAD EHRENREICH
734
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
737
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
737
SCREW , Replaced By: N308676012017
740
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
743
NUT DRAG LINK END M 24X1.5
746
NUT DRAG LINK TO LEVER
752
COTTER PIN DRAG LINK TO LEVER
758
STEERING SUPPORT (STEERING INTERMEDIATE BRACKET),6 900232, 10/205 315819, 50/60
758
STEERING SUPPORT (STEERING INTERMEDIATE BRACKET),6 900233, 10/205 315820, 50/60
761
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
761
SCREW SUPPORT TO SIDE MEMBER M 14X45
761
SCREW PROPELLER SHAFT TO TRANSMISSION
764
NUT STEERING SUPPORT TO FRAME
776
STEERING INTERMEDIATE ARM DRAG LINK,4 428828
782
SEAL RING
785
SPACER WASHER INTERMEDIATE LEVER TO BEARING BRACKET
788
TAPERED ROLLER BEARING FRONT
791
TAPERED ROLLER BEARING BOTTOM
794
GREASE NIPPLE
797
THRUST WASHER STEERING INTERMEDIATE ARM BEARING
800
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
803
COTTER PINROCKINGER TYP 260 G140
806
CAP AT STEERING INTERMEDIATE ARM
809
DRAG LINK FROM INTERMEDIATE LEVER TO STEERING ARM LEMFOERDER,6 900233, 10/205 315820, 50/60
809
DRAG LINK FROM INTERMEDIATE LEVER TO STEERING ARM LEMFOERDER,6 900232, 10/205 315819, 50/60
809
DRAG LINK FROM INTERMEDIATE LEVER TO STEERING ARM LEMFOERDER,6 900233, 10/205 315820, 50/60
809
DRAG LINK FROM INTERMEDIATE LEVER TO STEERING ARM LEMFOERDER,6 900232, 10/205 315819, 50/60
809
DRAG LINK , Replaced By: A3964604605
809
DRAG LINK , Replaced By: A3964604705
812
NUT DRAG LINK TO LEVER
815
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
