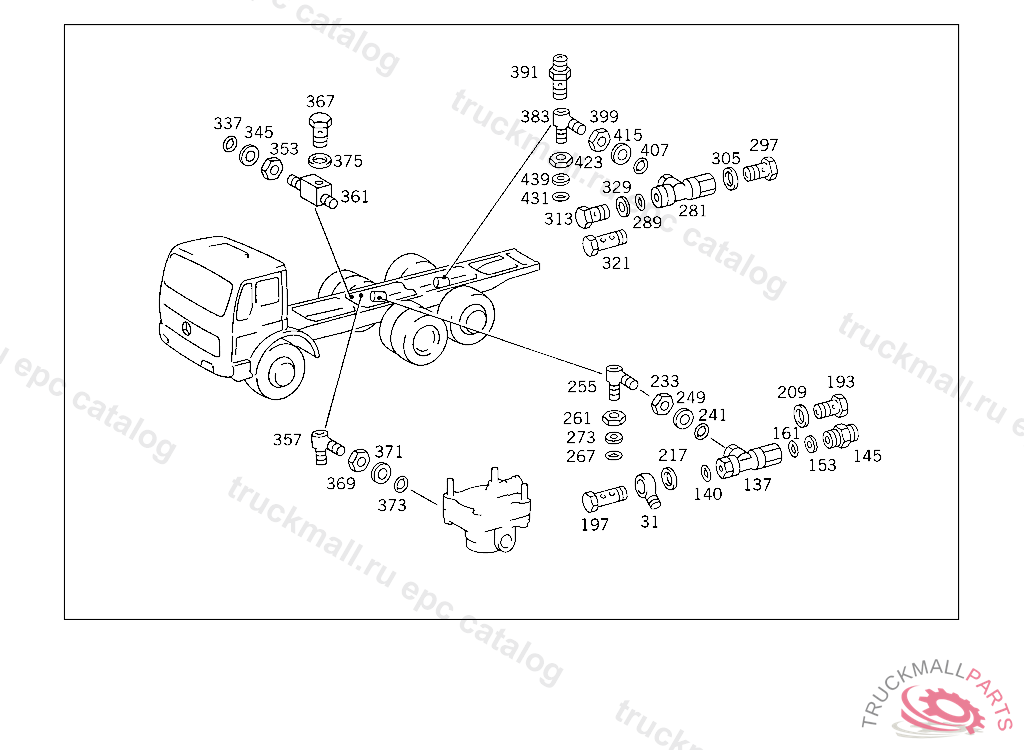

Поз.
Артикул
Описание
31
BANJO UNION HEATING CONNECTION,K 169122
137
VALVE (LOCKING VALVE) VOSS
137
VALVE (LOCKING VALVE) WABCO
140
SEAL RINGTO 003 429 46 44,WABCO
145
FITTING DELIVERY LINE TO PUMP
153
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
161
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
193
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
197
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
209
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
217
SEAL RING FUEL LINE TO FEED PUMP
233
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
241
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
249
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
255
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
261
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
267
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
273
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
281
VALVE (LOCKING VALVE) VOSS
281
VALVE (LOCKING VALVE) WABCO
289
SEAL RINGTO 003 429 46 44,WABCO
297
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
305
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
313
HOLLOW SCREW FUEL LINE TO FEED PUMP
313
HOLLOW SCREW , Replaced By: N915036010108
321
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
329
SEAL RING FUEL LINE TO FEED PUMP
337
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
345
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
353
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
357
FITTING RELAY VALVE,CONNECTION "20",LEFT
361
T-FITTING AT SIDE MEMBER,5 418366
367
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
369
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
371
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
373
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
375
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
383
FITTING RELAY VALVE,CONNECTION "20",LEFT
391
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
399
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
407
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
415
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
423
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
431
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
439
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
ADAPTER FITTING , Replaced By: A0004296934
999
REPAIR KITTO 001 430 68 81/69 81,KNORR
999
VALVE PARKING BRAKE VALVE BOSCH
999
VALVE PARKING BRAKE VALVE BOSCH
999
T-FITTING AIR RESERVOIR,CONNECTION: "31"
999
HOLLOW SCREW LINE CONNECTION
