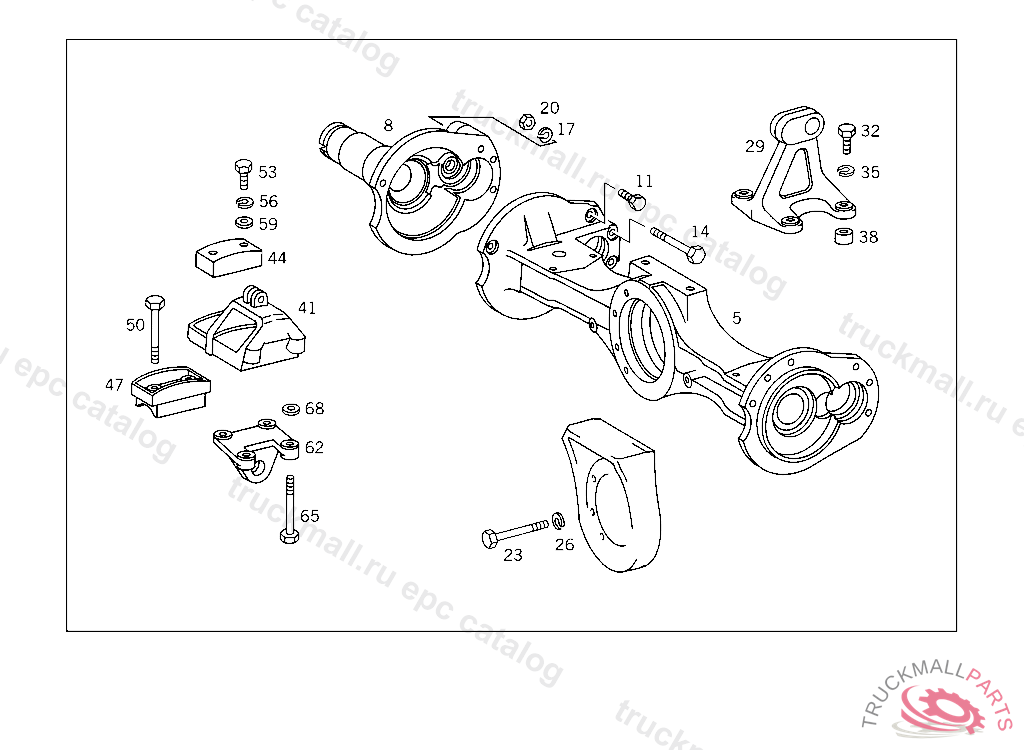

Поз.
Артикул
Описание
5
AXLE CASING
5
AXLE CASING
8
REAR AXLE TUBE
11
SCREW BEARING BRACKET TO FRAME
14
SCREW SHOCK ABSORBER TO BOTTOM BRACKET
14
SCREW BRACKET TO REAR AXLE M 16X1.5X75
14
SCREW , Replaced By: N308676016014
14
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
14
SCREW RUBBER MOUNTING TO SUPPORTING ARM M 16X1.5X60
17
LOCK WASHERROCKINGER TYP 59 G140,59 G150
20
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
23
SCREW RIGHT BRACKET TO RIGHT BEARING BRACKET
26
LOCK WASHER FITTING TO BRACKET
29
BEARING BODY
32
SCREW SUPPORT TO TRANSMISSION M 22X1,5X60
35
LOCK WASHER , Replaced By: N912004022101
35
LOCK WASHER SPARE WHEEL CARRIER
38
BUSHING
41
SPRING SEAT
44
RUBBER BUFFER SPRING SEAT AND BEARING BRACKET TO REAR AXLE
47
BRACKET SPRING SEAT AND BEARING BRACKET TO REAR AXLE
50
SCREW STRAP TO BRACKET
56
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
59
WASHER STRUT TO CROSS MEMBER
59
WASHER , Replaced By: N007349010007
62
BEARING BRACKET
65
SCREW , Replaced By: N000000000643
65
SCREW CASE PART I
65
HEXAGON HEAD BOLT FRONT SPRING TO FRONT SPRING FRONT BRACKET M18X1.5X160
65
SCREW BELL HOUSING TO TRANSMISSION M 18X1,5X170
65
SCREW PLATE TO FRAME
68
SPACER WASHER BEARING BRACKET,AS REQUIRED 7.40 MM
68
SPACER WASHER6.2 MM
68
SPACER WASHER7.8 MM
68
SPACER WASHER , Replaced By: A3433251252
68
SPACER WASHER6.6 MM
