Поз.
Артикул
Описание

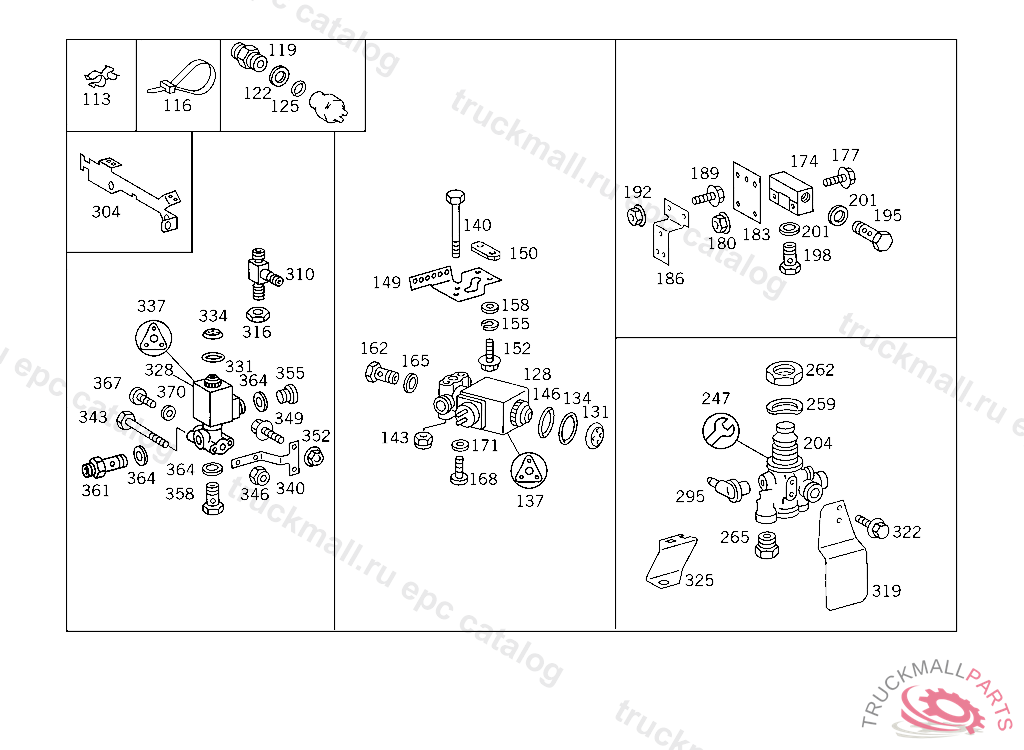

113
LOOM TIE BRAKE LINE MOUNTING
116
LOOM TIE LINE MOUNTING
116
LOOM TIE LINE MOUNTING 280 MM
119
FITTING CONNECTION TO STOP LIGHT SWITCH
122
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
122
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
125
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
128
VALVE (3/2-WAY SOLENOID VALVE) EKS
131
PROTECTIVE CAPWABCO
134
SEAL RINGWABCO
137
GASKET KITKNORR
140
SCREW. HEXAGON HEAD BOLT , Replaced By: A0019905504
143
NUT STRAP TO BRACKET
149
BRACKET 3/2-WAY SOLENOID VALVE
150
SHIM 3/2-WAY SOLENOID VALVE
152
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
152
SCREW SWITCH TO BRACKET 8X16
155
LOCK WASHER RAIL TO BATTERY SUPPORT
158
WASHER TRAILER PLUG SOCKET TO BRACKET
162
HOLLOW SCREW HEATING CONNECTION
165
SEAL RING LINE CONNECTION
168
SCREW BLINKER SENDER UNIT MOUNTING
171
SEAL RINGBOSCH
174
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
177
SCREW SHUTTLE VALVE TO BRACKET
177
SCREW BRACKET TO TWO-WAY VALVE
180
NUT TWO-WAY VALVE TO BRACKET
180
NUT CONTROL UNIT TO APPARATUS PANEL
183
BRACKET 3/2-WAY SOLENOID VALVE
195
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
198
HOLLOW SCREW , Replaced By: N915036010108
201
SEAL RING FUEL LINE TO FEED PUMP
204
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
204
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
247
REPAIR KIT 3/2-WAY VALVE WABCO
259
SPRING WASHER OPERATING VALVE TO SIDE MEMBER SHELL
262
NUT SUCTION LINE TO OIL PUMP
265
SCREW. UNION SCREW , Replaced By: A0009973734
295
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
295
BREATHER , Replaced By: A3933280065
