Поз.
Артикул
Описание

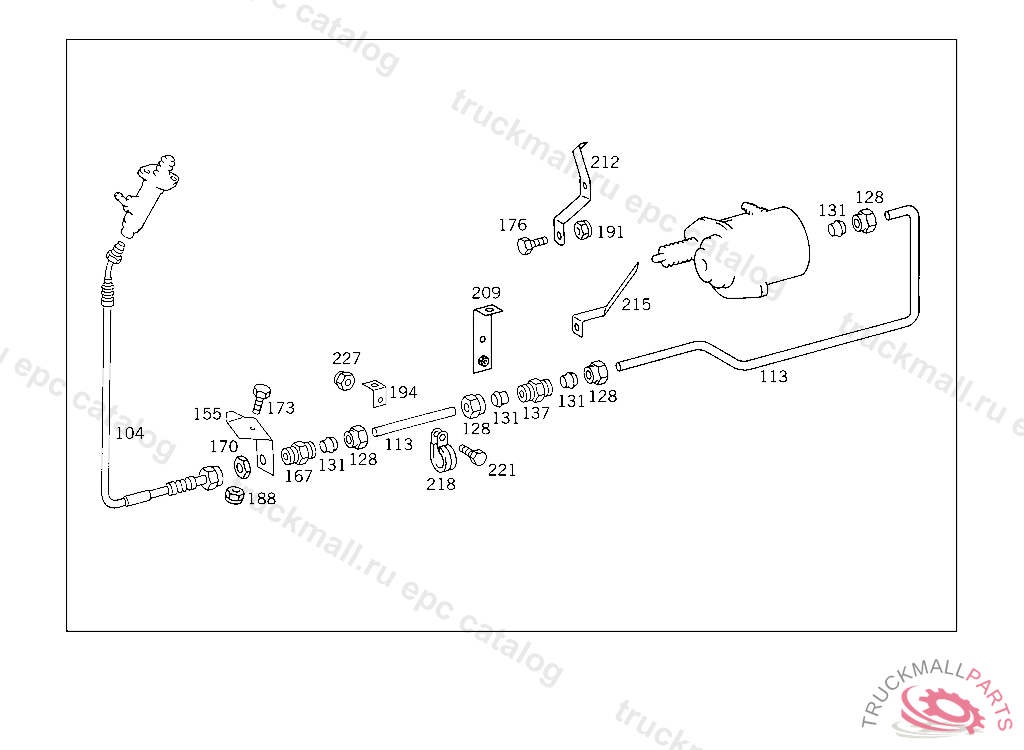

104
LINE FROM MASTER CYLINDER TO PARTITION FITTING 1680 MM,5 582441K 130132
113
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
128
UNION NUT LINE CONNECTION
131
GLAND LINE CONNECTION
137
CONNECTION FITTING ,TB108828
155
BRACKET BRACKET TO FAN SHROUD BRACKET,K 130132
167
FITTING LINE CONNECTIONS
170
NUT COMPRESSED AIR LINE TO FIRE WALL
173
SCREW BRACKET TO BELL HOUSING M 6X18
176
SCREW BRACKET TO BUMPER,LEFT M 10X25
188
NUT PUMP TO BRACKET
188
NUT , Replaced By: N913004006001
191
NUT EXHAUST PIPE TO SIDE MEMBER
194
BRACKET , Replaced By: A3875015920
194
BRACKET , Replaced By: A6454310740
194
BRACKET FUEL LINE TO BELL HOUSING
212
BRACKET HYDRAULIC LINE TO ENGINE CROSS MEMBER
215
ANGLE LINE MOUNTING
218
CLAMP ,K 147121, Replaced By: N000000000319
221
SCREW BRACKET TO BELL HOUSING M 6X18
227
NUT PUMP TO BRACKET
227
NUT , Replaced By: N913004006001
