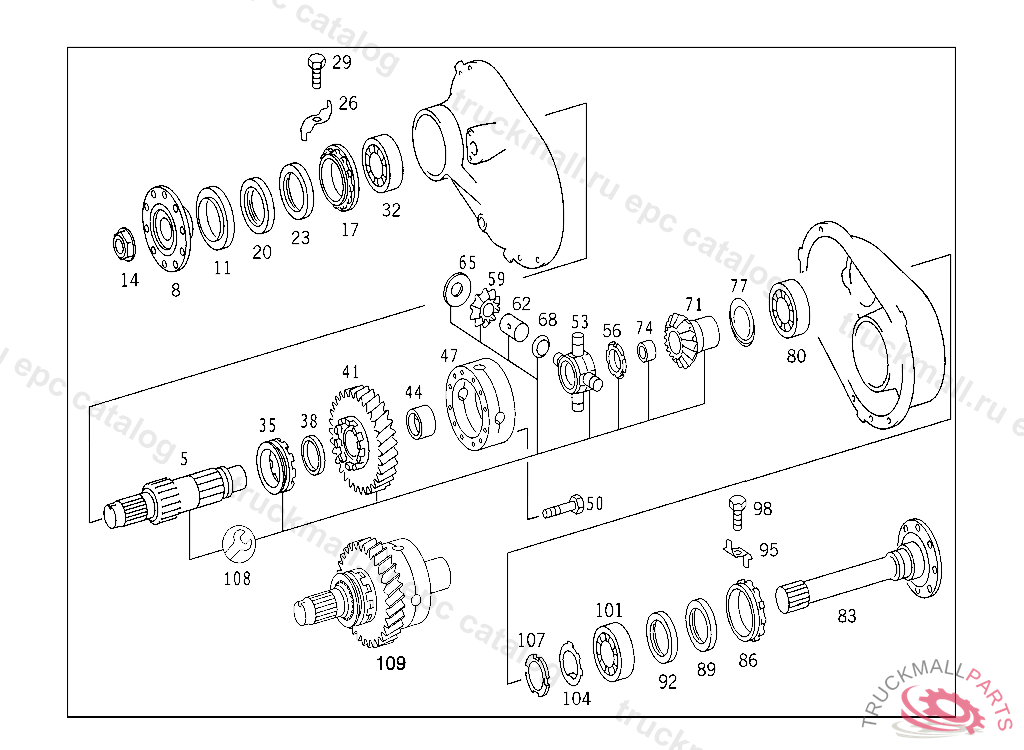

Поз.
Артикул
Описание
5
SHAFT THROUGH DRIVE
8
FLANGE REAR AXLE 200 MM
8
FLANGE (COUPLING FLANGE),DIA., 180 MM
8
FLANGE (COUPLING FLANGE),STAGGERED TEETH 180 MM
11
PROTECTIVE CAP SEAL
14
NUT FLANGE TO REAR AXLE SHAFT
14
NUT , Replaced By: A9463510072
17
SCREW COLLAR THROUGH DRIVE SHAFT SETTING
20
SEAL RING DRIVE SHAFT,REAR
23
SEAL RING DRIVE SHAFT,REAR
26
LOCK DIFFERENTIAL GEAR ADJUSTMENT
29
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
32
GROOVED BALL BEARING DRIVE SHAFT,FRONT
35
FOLLOWER , Replaced By: A3463530836, +001A3463530385
35
FOLLOWER ,V 440534, Replaced By: A3463531136, +001A3463501324
38
THRUST WASHER THROUGH DRIVE 4.0 MM
38
THRUST WASHER THROUGH DRIVE,AS REQUIRED 4.20 MM
38
THRUST WASHER THROUGH DRIVE 3.85 MM
38
THRUST WASHER THROUGH DRIVE,AS REQUIRED 3.65 MM
41
WHEEL HUB DRIVE WHEEL HUB DRIVE
41
GEAR , Replaced By: A3463531785, +001A3463531136
41
GEAR ,V 440534, Replaced By: A3463501324, +001A3463531136
44
BUSHING
44
BUSHING DRIVE SHAFT,REAR
47
DIFFERENTIAL CASE
50
SCREW , Replaced By: N308676012022
50
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT M 12X75
53
DIFFERENTIAL SPIDER
56
NUT DIFFERENTIAL SPIDER, V 138070
59
DIFFERENTIAL PINION , Replaced By: A3433500923
62
BUSHING
65
SPHERICAL WASHER
68
SPACER RING
68
SPACER RING
71
SIDE GEAR
74
BUSHING THROUGH DRIVE,DIFFERENTIAL GEAR
74
BUSHING THROUGH DRIVE,DIFFERENTIAL GEAR
77
THRUST WASHER THROUGH DRIVE,AS REQUIRED 2.35 MM
77
THRUST WASHER2.45 MM
77
THRUST WASHER2.60 MM
77
THRUST WASHER2.80 MM
80
BALL BEARING DRIVE SHAFT,REAR
80
GROOVED BALL BEARING DRIVE SHAFT,FRONT
83
SHAFT
83
SHAFT THROUGH DRIVE,136338
86
SCREW COLLAR THROUGH DRIVE SHAFT SETTING,136338
86
SCREW COLLAR THROUGH DRIVE SHAFT SETTING
89
SEAL RING OUTSIDE
92
SEAL RING HOUSING,BOTTOM
95
LOCK DIFFERENTIAL GEAR ADJUSTMENT
98
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
101
BALL BEARING HOUSING,INSIDE
101
BALL BEARING HOUSING,INSIDE
101
GROOVED BALL BEARING , Replaced By: A0059815925
104
LOCK PLATE
107
GROOVED NUT
108
REPAIR KIT THROUGH-DRIVE DIFFERENTIAL GEAR
109
REPAIR KIT INTER-AXLE DIFFERENTIAL,ASSEMBLED
999
WHEEL HUB DRIVE PARTS KIT
999
LOCK RING LINE CONNECTION
999
LOCK SPRING LOAD ACCUMULATOR CYLINDER TO M10 / VOSS 230,D 259885
999
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10
999
FOLLOWER LONGITUDINAL DIFFERENTIAL LOCK
