Mercedes N006799007007 - ДЕРЖАТЕЛЬ

2632 S/6X4 MBSA-RSA 397.193

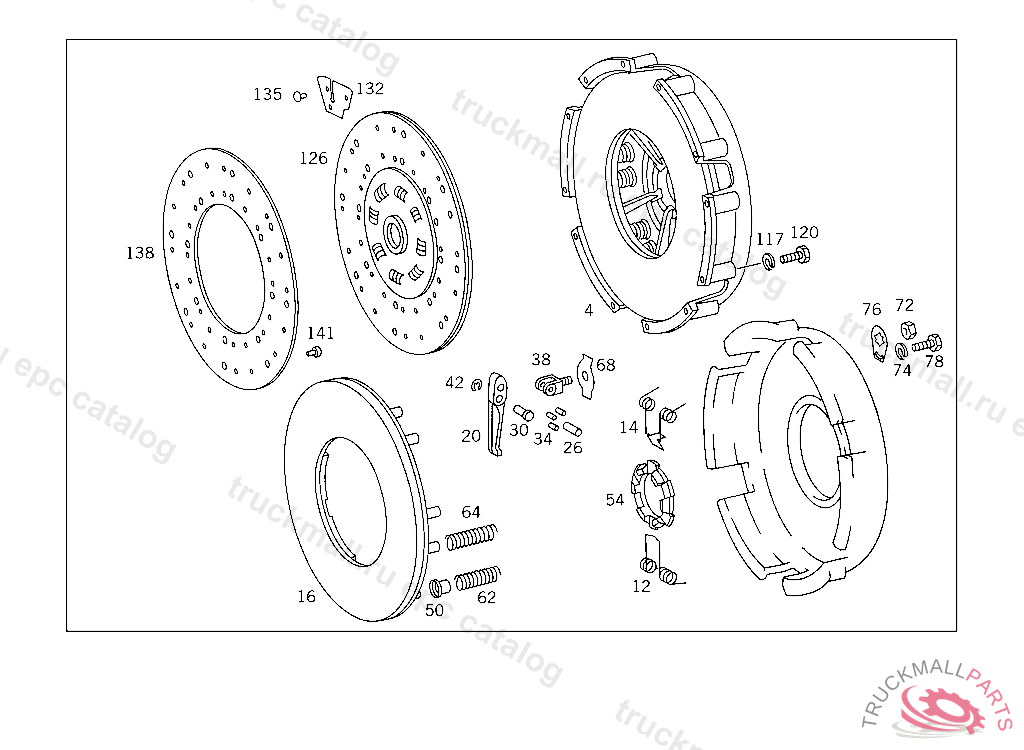

25 CLUTCH - 001 CLUTCH IL. 1

Поз.
Артикул
Описание
26
A0002520616
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
26
A0002522916
SPINDLE , Replaced By: A0002520616
30
A0002522816
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
34
A0002520118
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
38
A0002520614
BRACKET RELEASE LEVER
42
N006799007007
LOCK PLATE RELEASE LEVER TO SHAFT
68
A0002520519
LEAF SPRING THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
68
A0002523719
LEAF SPRING THIGH SPRING SUSPENDED BELOW LEAF SPRING
72
A0002523072
NUT FOR BRACKETS
76
A0002521073
LOCK FOR BRACKETS
78
A0002522971
SCREW RELEASE LEVER,BRACKET
117
N912004010102
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
