Mercedes N000125010532 - Диск

S 400 HYBRID 221.195

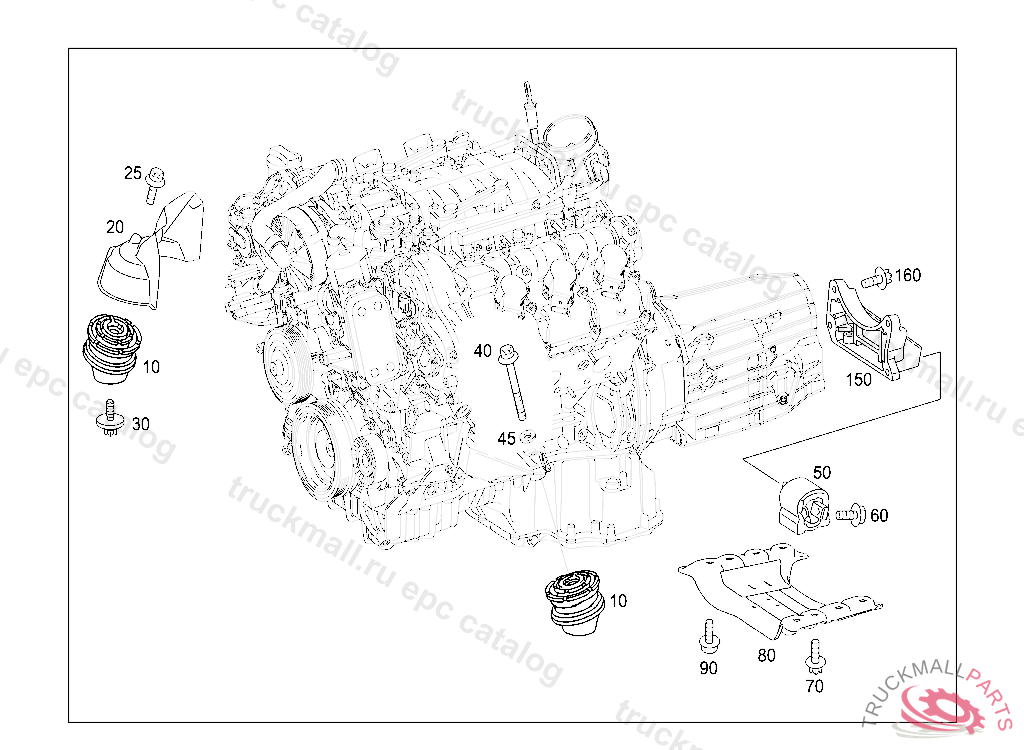

24 ENGINE SUSPENSION - 015 ENGINE SUSPENSION

Поз.
Артикул
Описание
10
A2212401117
ENGINE MOUNT FRONT
20
A2212410534
SCREENING PLATE FRONT LEFT
30
A2029902201
BOLT FRONT ENGINE MOUNT ON FRAME-TYPE INTEGRAL SUPPORT M8X21
40
N304017010051
SCREW
40
N914007010066
COMBINATION BOLT. SCREW-AND-WASHER ASSEMBLY ENGINE FRONT RIGHT MOUNTING M10X60, Replaced By: N304017010051, +001N000000003260
45
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
45
N000000003386
WASHER P.T.O. TO TRANSMISSION
50
A2212400918
ENGINE MOUNT REAR
60
N000000000428
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
70
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
80
A2212400402
ENGINE MOUNT REAR
90
A0009904800
BOLT ENGINE SUPPORT TO FRAME
150
A2112420340
BRACKET AT TRANSMISSION
160
A0049903412
BOLT BRACKET TO TRANSMISSION M6X30
