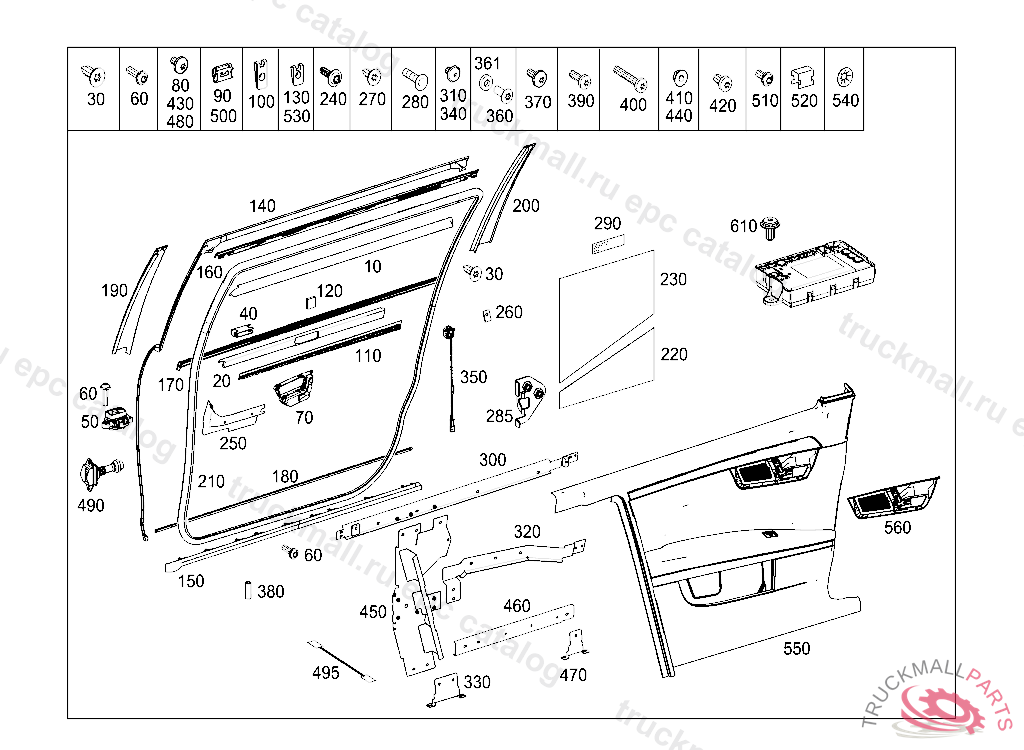

Поз.
Артикул
Описание
10
PANELING WINDOW FRAME,RIGHT
10
PANELING WINDOW FRAME,LEFT
20
COVER STRIP SHORT, RIGHT
20
COVER STRIP LONG, LEFT
20
COVER STRIP LONG, RIGHT
20
COVER STRIP LONG, RIGHT
40
CLIP COVERING
50
SWITCH RIGHT DOOR, A 01175020070731808 7J22QFT216A0006 SILVER
60
BOLT. SCREW (SENSOR CABLE) BRAKE WEAR INDICATOR, REAR,AXLE,LEFT AND RIGHT,V 207570
60
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
60
BOLT. SCREW
70
SWITCH ELECTRIC SEAT ADJUSTER, LEFT
70
SWITCH ELECTRIC SEAT ADJUSTER,RIGHT
80
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
90
CLIP FIXED WINDOW AREA
110
COVER STRIP ROLLER BLIND, RIGHT
110
COVER STRIP LEFT
120
STRIP FELT STRIP
140
SEAL RIGHT
140
SEAL LEFT
150
COVER STRIP LEFT CENTRAL DOOR
150
COVER STRIP RIGHT CENTRAL DOOR, A 28648320090430
150
COVER STRIP LEFT CENTRAL DOOR, Replaced By: A2216901170
150
COVER STRIP RIGHT CENTRAL DOOR, A 28648420090430
160
GARNISH MOULDING LEFT
160
GARNISH MOULDING RIGHT
170
GARNISH MOULDING LEFT DOOR EDGE
170
GARNISH MOULDING RIGHT DOOR EDGE
180
GARNISH MOULDING CENTRAL LEFT
180
GARNISH MOULDING CENTRAL RIGHT
190
ORNAMENTAL COVER LEFT
190
ORNAMENTAL COVER RIGHT
200
ORNAMENTAL COVER
200
ORNAMENTAL COVER RIGHT
210
SEAL
210
SEAL CENTRAL DOOR
220
INSULATION RIGHT BOTTOM
220
INSULATION BOTTOM
230
INSULATION RIGHT REAR DOOR
230
INSULATION TOP
240
BOLT BRACKET TO FRAME 4X14
240
HEXALOBULAR BOLT GAS CARTRIDGE TO ROOF FRAME, LEFT M5X10
250
COVER RIGHT
250
COVER LEFT
260
PLATE LEFT DOOR,BOTTOM
270
TAPPING SCREW ROOF MOUNTED OPERATING UNIT
280
BOLT. SCREW BRACKET MOUNTING M 6X20
285
BRACKET RIGHT BOWDEN CABLE
285
BRACKET LEFT BOWDEN CABLE
290
COVER TO FRAME CENTER, RIGHT
300
BRACKET TOP RIGHT
300
BRACKET TOP LEFT
310
SCREW , Replaced By: A1409842829
320
BRACKET CENTRAL LEFT
320
BRACKET CENTRAL RIGHT
330
BRACKET FRONT BRACKET
340
SCREW , Replaced By: A1409842829
350
LOUDSPEAKER
360
SCREW LOCK COVERING
360
SCREW LOCK COVERING
361
WASHER P.T.O. TO TRANSMISSION
370
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
380
HOSE INSULATING PLASTIC TUBE PURGE LINE
390
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
390
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
400
HEXALOBULAR BOLT PLATE TO BRACKET M6X40
410
NUT , Replaced By: N913023006001
420
HEXALOBULAR BOLT GAS CARTRIDGE TO ROOF FRAME, LEFT M5X10
430
SCREW , Replaced By: A1409842829
440
NUT , Replaced By: N913023006001
450
BRACKET RIGHT BRACKET
450
BRACKET CENTRAL LEFT
460
BRACKET LOWER BRACKET
460
BRACKET LEFT BRACKET
470
BRACKET
480
SCREW , Replaced By: A1409842829
490
ELECT. LINE RIGHT DOOR
490
ELECT. LINE LEFT DOOR
495
ELECTRICAL WIRING HARNESS LEFT CENTER DOOR AMBIANCE ILLUMINATION ADAPTER LINE
500
CLIP FIXED WINDOW AREA
510
BOLT. SCREW (SENSOR CABLE) BRAKE WEAR INDICATOR, REAR,AXLE,LEFT AND RIGHT,V 207570
520
CLIP BOTTOM COVERING,F 723282
530
SPRING NUT
540
LOCK. CLIP LICENSE PLATE FLAP
550
DOOR INTERIOR TRIM RIGHT
550
DOOR INTERIOR TRIM LEFT
550
DOOR INTERIOR TRIM LEFT
550
DOOR INTERIOR TRIM RIGHT
550
DOOR INTERIOR TRIM LEFT
550
DOOR INTERIOR TRIM LEFT
550
DOOR INTERIOR TRIM LEFT
550
DOOR INTERIOR TRIM RIGHT
550
DOOR INTERIOR TRIM RIGHT
550
DOOR INTERIOR TRIM RIGHT
550
DOOR INTERIOR TRIM LEFT
550
DOOR INTERIOR TRIM RIGHT
560
COVER
560
COVER
610
SCREW , Replaced By: A1409842829
610
BOLT UPPER RIGHT PANELING HOUSING 6X12
