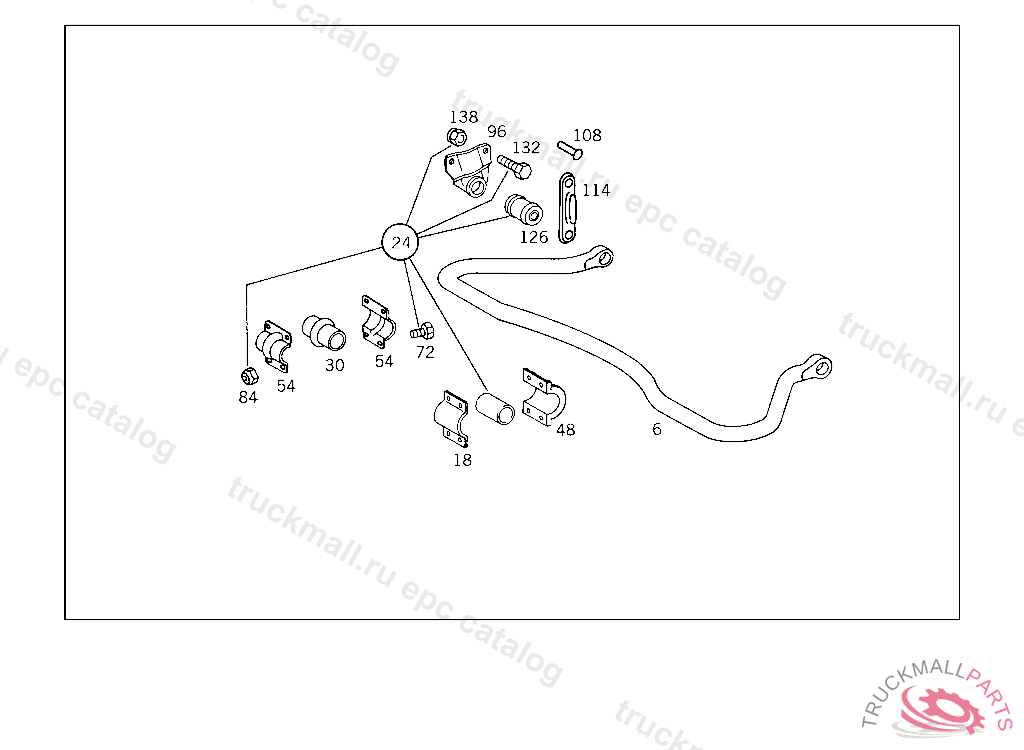

Поз.
Артикул
Описание
6
TORSION BAR REAR AXLE
6
TORSION BAR , Replaced By: A3103260165
6
TORSION BAR REAR AXLE
18
BRACKET TORSION BAR TO REAR AXLE, 309.000-049 UP TO CHASSIS 001041,309.100-149 UP TO CHASSIS 013725
24
REPAIR KIT TORSION BAR MOUNTING, 309.000-049 FROM CHASSIS 001042,309.100-149 FROM CHASSIS 013726
24
REPAIR KIT TORSION BAR MOUNTING
24
REPAIR KIT , Replaced By: A3093200528
24
REPAIR KIT , Replaced By: A3093200428
24
REPAIR KIT , Replaced By: A3093200128
24
REPAIR KIT TORSION BAR MOUNTING
24
REPAIR KIT TORSION BAR MOUNTING, 309.000-049 UP TO CHASSIS 001041,309.100-149 UP TO CHASSIS 013725
30
RUBBER MOUNTING TORSION BAR
30
RUBBER MOUNTING TORSION BAR, 309.000-049 FROM CHASSIS 001042,309.100-149 FROM CHASSIS 013726
30
RUBBER MOUNTING TORSION BAR, 309.000-049 UP TO CHASSIS 001041,309.100-149 UP TO CHASSIS 013725
48
BRACKET TORSION BAR TO REAR AXLE, 309.000-049 UP TO CHASSIS 001041,309.100-149 UP TO CHASSIS 013725
48
BRACKET , Replaced By: A3093260240
54
BRACKET TORSION BAR TO REAR AXLE, 309.000-049 FROM CHASSIS 001042,309.100-149 FROM CHASSIS 013726
72
SCREW PIPE CLAMP
72
SCREW , Replaced By: N304017008021
84
NUT STRAP TO BRACKET
96
CONSOLE LEFT,D 054472
108
RIVET REINFORCEMENT TO SIDE MEMBER
108
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
114
SHACKLE TORSION BAR,REAR
114
SHACKLE , Replaced By: A3093260347
114
SHACKLE , Replaced By: A3093200263
126
BEARING TORSION BAR BEARING
126
RUBBER MOUNTING , Replaced By: A3093200073
126
RUBBER MOUNTING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3093200073
126
SPACER TUBE , Replaced By: A3093200073
126
SPACER TUBE , Replaced By: A3093200073
132
SCREW ,5 903514, Replaced By: N000960012353
132
SCREW TORSION BAR TO SHACKLE,5 903514
138
NUT SUPPORT TO SIDE MEMBER
999
NUT , Replaced By: N910113016001
999
NUT , Replaced By: N910113010000
999
NUT CONSOLE TO SUPPORT
999
NUT STRAP TO BRACKET
999
SCREW
999
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
999
SCREW STRUT TO SIDE MEMBER M 12X55
999
SCREW , Replaced By: N000960012384
999
SCREW SUPPORT TO CROSS MEMBER M 10X28
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW BRACKET TO BELL HOUSING
999
SCREW STRAP TO BRACKET
999
WASHER CABLE TO BRACKET AND TO CONSOLE,RESP.
999
SHACKLE TORSION BAR MOUNTING
999
TUBE SHACKLE TO CONSOLE
999
BEARING SHACKLE TO FRAME
999
CONSOLE RIGHT,D 054472
999
TORSION BAR REAR AXLE
999
SHACKLE TORSION BAR
999
SHACKLE TORSION BAR
999
RUBBER MOUNTING TORSION BAR TO REAR AXLE
999
SHACKLE TORSION BAR TO CONSOLE
999
SHACKLE , Replaced By: A3093260447
999
SHACKLE , Replaced By: A3093200363
