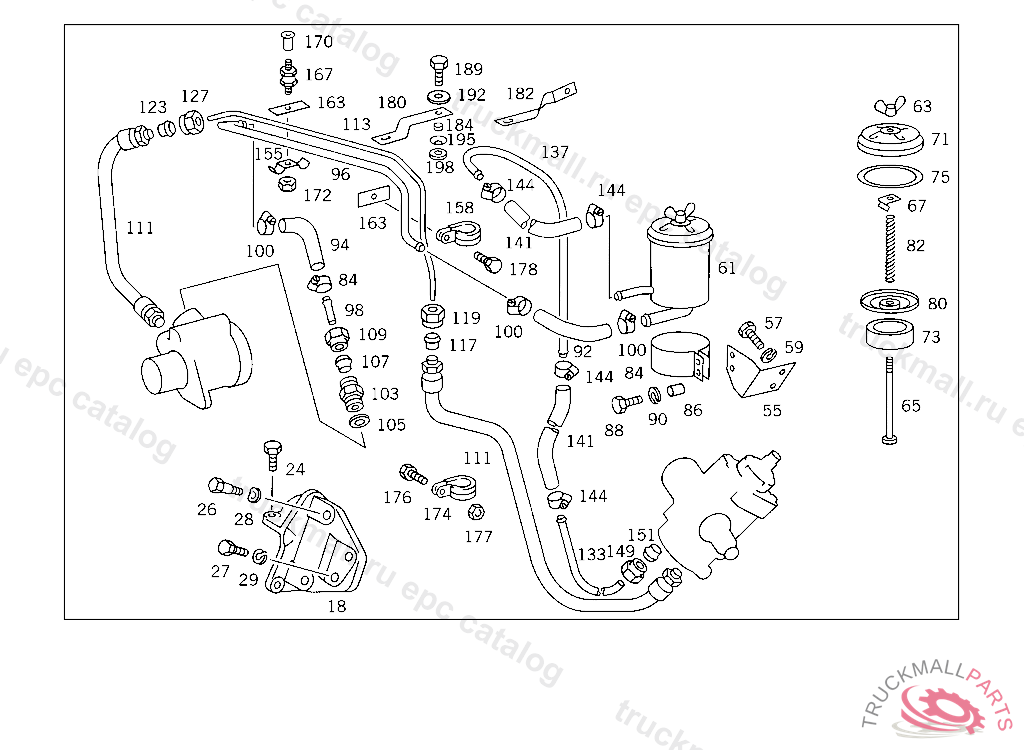

Поз.
Артикул
Описание
18
STEERING SUPPORT
24
SCREW RADIATOR M 10X45
26
SCREWM 12X13X21X38
27
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
28
SPRING WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
29
LOCK WASHER FITTING TO BRACKET
55
BRACKET OIL TANK
55
BRACKET OIL TANK
57
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
57
SCREW , Replaced By: N304017008016
59
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
61
OIL TANK STEERING
61
OIL TANK STEERING, ON TRUCKS,FROM CHASSIS 145137 ALSO INSTALLED ON:SEE FOOTNOTE 023,WITH THE EXCEPTION OF:SEE FOOTNOTE 022,CONTINUED ON FOOTNOTE 026
63
NUT BATTERY MOUNTING
65
SCREW APPARATUS PLATE M 6X150
65
SCREW
67
LOCK
71
COVER
73
FILTER
75
GASKET
80
WASHER
82
SPRINGMANN
84
CLAMP OIL TANK TO BRACKET
86
SPACER TUBE OIL TANK TO BRACKET
88
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
88
SCREW , Replaced By: N304017006012
90
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
92
HOSE FROM OIL TANK TO HYDRAULIC PUMP,576196
94
HOSE FROM OIL TANK TO PUMP 193 MM
96
LINE FROM OIL TANK TO HYDRAULIC PUMP,576196
98
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
100
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
100
CLAMP , Replaced By: N000000000667
103
FITTING , Replaced By: N003901018008
105
SEAL RING LINE CONNECTION
107
SEAL CONE LINE MOUNTING
107
GLAND , Replaced By: A0019901167
109
UNION NUT LINE MOUNTING
111
HOSE
111
HOSE
113
OIL PIPE. LINE RETURN LINE TO TRANSMISSION
117
CUTTING RING. GLAND LINE CONNECTION
119
UNION NUT OIL LINE
123
CUTTING RING. GLAND LINE CONNECTION
127
NUT. UNION NUT LINE CONNECTION
133
LINE FROM STEERING GEAR TO OIL TANK 395 MM
137
LINE FROM STEERING GEAR TO OIL TANK 385 MM
141
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
141
HOSE , Replaced By: A0009974752
144
CLAMP HOSE TO FITTING AND TO OIL TANK
144
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
149
UNION NUT LINE CONNECTION, Replaced By: N000000006239
149
UNION NUT LINE CONNECTION
151
GLAND , Replaced By: A0019901967
151
SEAL CONE LINE CONNECTION
155
CLAMP DELIVERY AND SUCTION LINES TO RADIATOR CONSOLE
158
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
163
BASE DELIVERY AND SUCTION LINES TO RADIATOR CONSOLE
163
SHIM , Replaced By: A4064750019
167
RUBBER BUFFER COVERING TO FRAME
170
RIVETED NUT BATTERY CHANGE-OVER SWITCH
172
NUT , Replaced By: N913004008001
174
CLAMP , Replaced By: N916016010211
174
CLAMP , Replaced By: N000000001045
174
CLAMP CABLE HARNESS MOUNTING
176
SCREW CAB FLOOR COVERING M 6X25
177
NUT PUMP TO BRACKET
177
NUT , Replaced By: N913004006001
178
SCREW BUSHING AND LEVER TO CAB
180
BRACKET RADIATOR BRACING,TOP, NOT USED
182
BRACKET RADIATOR BRACING,TOP
184
SPACER TUBE RADIATOR BRACING,TOP
184
SPACER TUBE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3095040153
189
SCREW , Replaced By: N304017008034
189
SCREW BRACKET TO CROSS CONNECTION STRUT
192
WASHER BRACKET TO LEFT SIDE MEMBER
192
WASHER , Replaced By: N009021008213
195
DISC SPRING RADIATOR BRACING,TOP
198
WASHER EXHAUST MUFFLER TO STRAP
198
WASHER , Replaced By: N000125008443
999
BOOT , Replaced By: A0004631396
999
RUBBER BUFFER , Replaced By: A0019875240
999
OIL DIPSTICK ,116.025 059140
999
PROTECTIVE CAP
999
STEERING SHAFT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 331283, Replaced By: A3094603309
999
DRAG LINK , FOR THE NEW PART NO.,SEE STANDARD VERSION, Replaced By: A3094602905
999
STEERING SHAFT , Replaced By: A3094604309
999
STEERING SHAFT ,370111
999
LINE , Replaced By: A0002610283
999
LINE , Replaced By: A3164660465
999
LINE , Replaced By: A0002610283
999
LINE , Replaced By: A0002610283
999
PLATE ,282636 TO BE ADAPTED DURING ASSEMBLY
999
BRACKET RADIATOR BRACING,TOP
999
BRACKET , Replaced By: A3464290340
999
LINE , Replaced By: A0005516456
