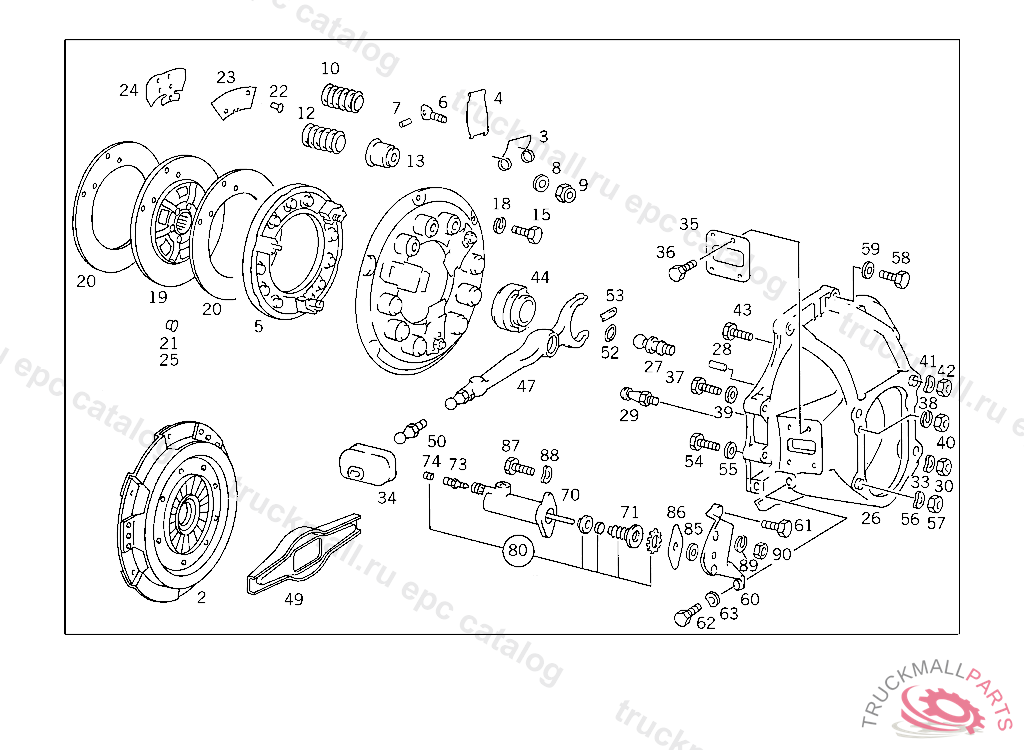

Поз.
Артикул
Описание
2
CLUTCH PRESSURE PLATE , UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE NOT WITH TWO-MASS FLYWHEEL
2
CLUTCH PRESSURE PLATE , UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART NOT WITH TWO-MASS FLYWHEEL
3
SPRING
4
RELEASE LEVER , ON SPECIAL REQUEST, H.D. CLUTCH
5
6
PIN
7
CLAMPING SLEEVE
8
SPACER RING
9
NUTTO 001 250 03 04
10
PRESSURE SPRING CLUTCH PRESSURE PLATE
12
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.2 MM,TO 000 250 99 04
13
SLEEVE
15
SCREW PIPE CLAMP
15
SCREW , Replaced By: N304017008021
18
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
19
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
19
19
19
19
CLUTCH DISC
20
CLUTCH LINING
20
20
CLUTCH LINING ASBESTOS-FREE
20
CLUTCH LINING DOUBLE-ROW RIVETING OF LINING
21
RIVET DOUBLE-ROW RIVETING OF LINING, LEAF SPRING TO CLUTCH DISC
24
LEAF SPRING DOUBLE-ROW RIVETING OF LINING
25
RIVET LINING WITH INTERMEDIATE SPRING,5 563495
26
BELL HOUSING , 030 000140 033 000071 PART INCLUDED IN RANGE OF DELIVERY OF TRANSMISSION ASSEMBLY
26
BELL HOUSING , FROMIDENT NO. 240107-499999 ALSO INSTALLED ON 237253,237254,240088556500P 000001P 030294, Replaced By: A6022501905
26
HOUSING
26
26
BELL HOUSING , Replaced By: A1152512601
27
BALL PIVOT
28
CYLINDRICAL PIN
29
BALL PIVOT
30
NUT
30
NUT , Replaced By: N304035010001
33
SPRING WASHER STEERING COLUMN BRACKET TO CAB
34
BOOT
35
SEAL HOLDER
36
SCREW , Replaced By: N304017006018
36
SCREW COVER PLATE TO COVER PLATE M 6 X 12
37
SCREW CONNECTOR TO EXHAUST MANIFOLD
38
LOCK WASHER FITTING TO BRACKET
39
WASHER
40
NUT STRAP TO SUPPORT,5 149419
41
SPRING WASHER STEERING COLUMN BRACKET TO CAB
42
NUT BRACKET TO SUPPORT AND TO END PIECE
43
SCREW BELL HOUSING TO TRANSMISSION CASE
44
RELEASE BEARING CLUTCH
44
RELEASE BEARING CLUTCH
44
44
47
47
49
RELEASE YOKE , 102,103 219674 ALSO INSTALLED ON 219935,219936,220064,220096,220232. EXCEPT FOR 219267,219275,219283,219285,219287,219293,219296,219301,219302,219304,219307,219309,219313,219317, 219319-219321,219325,219326,219328-219331,219333,219335,219336,219338,219339,219341,219342,219346, 219347,219350,219351,219354,219357-219361,219363-219380,219384,219385,219387-219389,219391-219395, 219397,219399,219400,219402-219409,219411-219415,219417-219422,219424-219426,219428-219435,219437, 219439-219447,219449-219453,219459-219471,219473-219483,219485-219499,219502-219516,219520-219599, 219601-219673. 183 014172 ALSO INSTALLED ON 014174-014198,014203,014209,014215,014221,014225,014231,014407,014486,014630.
50
52
SNAP RING DOUBLE LEVER TO BRACKET
53
54
SCREW CLUTCH TO FLYWHEEL
54
SCREW , Replaced By: N304017010055
54
SCREW , Replaced By: N304017010050
55
WASHER , Replaced By: N000125010532
55
WASHER RADIATOR TO RUBBER MOUNTING
56
SPRING WASHER STEERING COLUMN BRACKET TO CAB
57
NUT BRACKET TO SUPPORT AND TO END PIECE
58
SCREW EXHAUST PIPE TO BRACKET
59
WASHER RADIATOR TO RUBBER MOUNTING
59
WASHER , Replaced By: N000125010532
60
61
SCREW CLUTCH TO FLYWHEEL
62
SCREW PIPE CLAMP
62
SCREW , Replaced By: N304017008021
63
SPRING WASHER , Replaced By: N000137008212
70
SLAVE CYLINDER CLUTCH OPERATION FAG
70
SLAVE CYLINDERTEVES
71
BOOTFAG
71
BOOT , Replaced By: A2012950983
73
VALVE , Replaced By: A3075530107
73
VALVE CLUTCH SLAVE CYLINDER
74
PROTECTIVE CAP , Replaced By: A0004217187
74
PROTECTIVE CAP ,5 962906
80
REPAIR KIT , Replaced By: A0002900611
80
REPAIR KIT , Replaced By: A0002901111
80
REPAIR KIT SLAVE CYLINDER FAG
85
86
87
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
87
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
87
SCREW , Replaced By: N000933008337
87
SCREW , Replaced By: N304017008027
87
SCREW , Replaced By: A0099900101
88
SPRING WASHER , Replaced By: N000137008212
89
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
90
NUT
999
LOCK
999
999
RELEASE YOKE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1152900029
999
999
