Поз.
Артикул
Описание

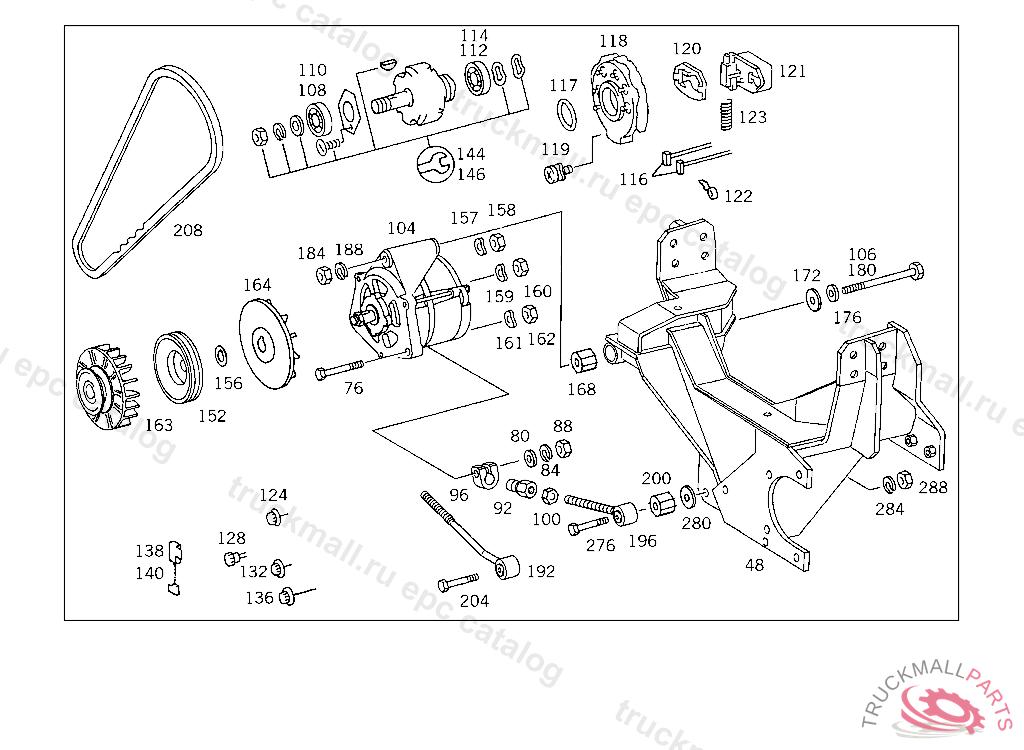

48
SUPPORT REFRIGERANT COMPRESSOR, TRUCKS FROM CHASSIS 156153,BUS FROM CHASSIS 017661
48
SUPPORT , TRUCKS UP TO CHASSIS 156152,BUS UP TO CHASSIS 017660, Replaced By: A3141300435
76
SCREW ,5 903514, Replaced By: N000960012353
76
SCREW , Replaced By: N308676012018
76
SCREW TORSION BAR TO SHACKLE,5 903514
76
SCREW STRUT TO FRAME M 12X62
80
WASHER
84
LOCK WASHER FITTING TO BRACKET
88
NUT STRAP TO SUPPORT
92
NUT TIGHTENER PULLEY TO LEVER
92
NUT ALTERNATOR
96
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
96
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
96
CLAMPING PIECE TIGHTENER PULLEY
100
NUT STRAP TO SUPPORT,5 149419
104
ALTERNATOR , Replaced By: A0091541502
104
ALTERNATOR , Replaced By: A0091540702
104
ALTERNATOR , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0091540602
104
ALTERNATOR , Replaced By: A0071542402
104
ALTERNATOR , Replaced By: A0051548302
104
ALTERNATOR , Replaced By: A0071542702
104
ALTERNATOR , Replaced By: A0071542602
104
ALTERNATOR , Replaced By: A0051545102
104
ALTERNATOR12 V 65 A
104
ALTERNATOR , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0051543102
104
ALTERNATOR , Replaced By: A0031548702
104
ALTERNATOR , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
104
ALTERNATOR THREE-PHASE, UP TO IDENT NO. 556499 EXCEPT 543411,543418,551148,551588,551771,552021,552392,552551,552654,552687,552694,552840,552846,553000, 553005,553105,553112,553185,553210,553226,553264,553332,553602,553651,553660,553795,554081,554103, 554107,554213,554266,554270,554333,554993,555186,555885,555902,555992,556045,556120,556138,556143, 556146,556169,556181,556184,556187,556189,556194-556197,556215. PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
104
ALTERNATORN1 28V 10/55A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
106
SCREW
106
SCREW , Replaced By: A0009909621
106
SCREW , Replaced By: A0019902120
108
GROOVED BALL BEARING , Replaced By: N000625436303
108
GROOVED BALL BEARING
110
BALL BEARINGTO 004 154 75 02
110
GROOVED BALL BEARINGTO 004 154 75 02
110
BALL BEARING , Replaced By: A0059814725
110
BALL BEARING , Replaced By: A0049810325
112
GROOVED BALL BEARING
114
BALL BEARINGTO 005 154 34 02
114
BALL BEARINGTO 005 154 32 02
114
BALL BEARING , Replaced By: A0059812225
114
GROOVED BALL BEARING
116
CARBON BRUSH SETTO 005 154 34 02
116
CARBON BRUSH SET
116
CARBON BRUSH SETTO 007 154 27 02
117
SEAL RINGTO 005 154 34 02
118
RECTIFIERTO 005 154 34 02
118
RECTIFIERTO 004 154 75 02
118
RECTIFIER , Replaced By: A0011542716
118
RECTIFIER , Replaced By: A0011541516
118
RECTIFIER , Replaced By: A0001544716
118
RECTIFIER
119
SCREW-AND-WASHER ASSEMBLY. COMBINATION BOLT
120
GASKET
121
REGULATOR AND CUT-OUTTO 005 154 34 02
121
REGULATOR AND CUT-OUTTO 005 154 32 06
121
REGULATOR AND CUT-OUT , Replaced By: A0001541805
122
SPRING , Replaced By: A0001541393
122
SPRING
122
SPRING
123
SPRINGTO 004 154 75 02
124
DIODE POS.
124
DIODE NEG.
128
DIODE NEG.
128
DIODE POS.
128
DIODE , Replaced By: A0015481118
128
DIODE , Replaced By: A0005489818
132
DIODE , Replaced By: A0015481518
132
DIODE
136
DIODE
136
DIODE , Replaced By: A0015481518
136
DIODE , Replaced By: A0015480018
138
CONDENSER , Replaced By: A0011566901
138
CONDENSERTO 004 154 75 02
138
CONDENSER
140
CONDENSER
144
REPAIR KIT
146
REPAIR KIT (PARTS KT),ROTOR TO 004 154 75 02
146
REPAIR KIT
152
PULLEY ALTERNATOR, SEE SA 19494/2/3
152
PULLEY ALTERNATOR
156
WASHER FAN TO ALTERNATOR,545241
157
SPRING WASHER , Replaced By: N000137008212
157
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
158
NUT
159
SPRING WASHER LICENSE PLATE TO BRACKET
160
NUT BALL PIVOT TO LEVER
161
SPRING WASHER ALTERNATOR CONNECTION D+
162
NUT TACHOGRAPH TO BRACKET
163
FAN , Replaced By: A0001556318
163
FAN , Replaced By: A0001555618
163
FAN ALTERNATOR
164
FAN , Replaced By: A0001557818
164
FAN ALTERNATOR
168
BUSHING
168
BUSHING
172
SPACER WASHER ENGINE REAR SUPPORT TO RUBBER MOUNTING
172
SPACER WASHER AS REQUIRED 2.00 MM
172
SPACER WASHER AS REQUIRED 0.50 MM
176
FITTED WASHER AS REQUIRED 1.0 MM
176
FITTED WASHER AS REQUIRED 1.80 MM
176
FITTED WASHER AS REQUIRED 1.40 MM
180
SCREW , Replaced By: N304014010015
180
SCREW DUMPER SHAFT,5 515436
184
NUT , Replaced By: N304032010002
184
NUT
188
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
192
CLAMPING BOLT COMPLETE
192
CLAMPING BOLT COMPLETE
192
SCREW THREE-PHASE ALTERNATOR CLAMPING BOLT,545240
192
SCREW , Replaced By: A3761500072
196
CLAMPING BOLT , Replaced By: A4031500572
196
CLAMPING BOLT FOR V-BELT TENSIONING
200
BUSHING
200
BUSHING
204
SCREW RADIATOR M 10X45
208
V-BELT12.5X1100 MM
208
V-BELT REFRIGERANT COMPRESSOR 12.5X1125 MM, 309.370-391 FROM CHASSIS 010600, 309.400-426 FROM CHASSIS 076956, 310.300-326 FROM CHASSIS 012889, 310.400-426 FROM CHASSIS 00 0001
208
V-BELT ALTERNATOR 12.5X975
208
V-BELT , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0049976992
208
V-BELT , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0049973692
208
V-BELT ALTERNATOR,545241
276
SCREW , Replaced By: N304017010053
276
SCREW , Replaced By: N304017010030
276
SCREW MOUNTING AND RAIL TO LEAF SPRING
276
SCREW PIPE ELBOW TO BRACKET M 10X50
280
SPACER WASHER AS REQUIRED 2.00 MM
280
SPACER WASHER ENGINE REAR SUPPORT TO RUBBER MOUNTING
280
SPACER WASHER AS REQUIRED 0.50 MM
284
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
288
NUT BRACKET TO SUPPORT AND TO END PIECE
999
FAN ALTERNATOR
999
SUPPORT LEAD SEALING
999
FRAME
999
FAN , NOT USED
