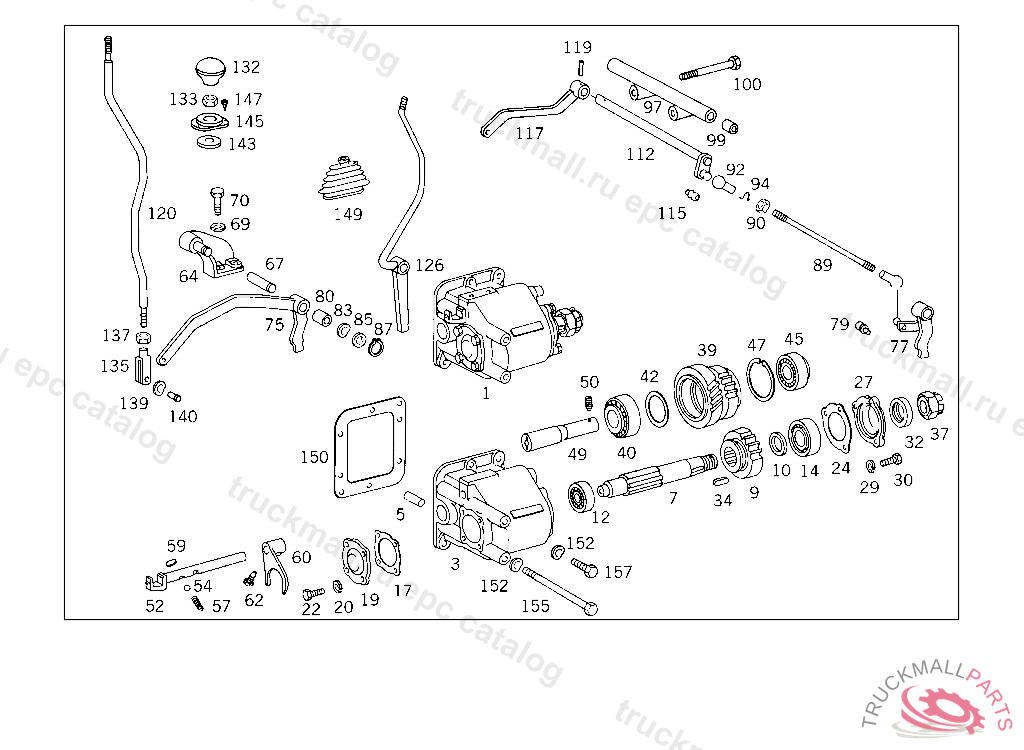

Поз.
Артикул
Описание
1
P.T.O.
3
TRANSMISSION CASE
5
CYLINDRICAL PIN
7
DRIVE SHAFT
7
DRIVE SHAFT
9
GEAR MAIN SHAFT
9
GEAR
10
SPACER WASHER AS REQUIRED 7.00MM, 025936
10
SPACER WASHER AS REQUIRED 7.45 MM, 025936
10
SPACER WASHER AS REQUIRED 7.30MM, 025936
10
SPACER WASHER AS REQUIRED 7.15 MM, 025936
12
CYLINDR. ROLLER BEARING FRONT DRIVE SHAFT
12
CYLINDR. ROLLER BEARING FRONT DRIVE SHAFT
12
CYLINDR. ROLLER BEARING FRONT DRIVE SHAFT
14
CYLINDR. ROLLER BEARING
17
GASKET
19
COVER , 011768
20
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
20
SPRING WASHER , Replaced By: N000137008212
22
SCREW , Replaced By: N910107008000
22
SCREW , Replaced By: N000000001559
22
SCREW CASE COVER M 8X20 MM
24
GASKET
27
COVER REAR, 025936
29
SPRING WASHER , Replaced By: N000137008212
29
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
30
SCREW COVER TO P.T.O. CASE
32
SEAL RING
34
KEY COUPLING FLANGE TO P.T.O.
37
NUT DRAG LINK TO LEVER
39
GEAR P.T.O. INTERMEDIATE GEAR
39
GEAR , Replaced By: A3142640321
40
TAPERED ROLLER BEARING
40
TAPERED ROLLER BEARING
40
TAPERED ROLLER BEARING
42
SPACER WASHER AS REQUIRED 0.40 MM
42
SPACER WASHER0.10 MM
42
SPACER WASHER AS REQUIRED 0,20 MM
45
TAPERED ROLLER BEARING
47
LOCK RING P.T.O. INTERMEDIATE GEAR
49
SHAFT LATERAL P.T.O. WITH REVERSE SPEED
50
THREADED PIN. HEADLESS SETSCREW LATERAL P.T.O. WITH REVERSE SPEED
52
SHIFTING ROD LATERAL P.T.O. WITH REVERSE SPEED
54
BALL , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
57
SPRING
59
EXPANSION PLUG LATERAL P.T.O. WITH REVERSE SPEED
60
SHIFTING FORK LATERAL P.T.O. WITH REVERSE SPEED
62
SCREW SHIFTING FORK TO SHIFTING ROD
64
BEARING BRACKET SHIFTING ROD
67
PIN SHIFT LEVER BEARING
69
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
69
SPRING WASHER , Replaced By: N000137008212
70
SCREW , Replaced By: N304017008034
70
SCREW BRACKET TO CROSS CONNECTION STRUT
75
LEVER SHIFTING ROD, FROM CHASSIS 823236-4282707 AND FROM CHASSIS 8000001
75
LEVER SHIFTING ROD,4282708
77
LEVER SHIFTING ROD
77
LEVER SHIFTING ROD
79
BALL PIVOT
80
BUSHING
83
WASHER SHIFT LEVER TO PIVOT PIN
85
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
87
LOCK RING SHIFT LEVER TO PIVOT PIN
89
PULL ROD
89
PULL ROD OPERATING ROD, TO BE ADAPTED DURING ASSEMBLY
89
PULL ROD
89
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
90
NUT
92
BALL SOCKET ROD TO BALL PIVOT
94
SECURING CLIP. CIRCLIP
97
BEARING (BEARING TUBE)
97
BEARING SHIFTING SHAFT BEARING
99
BUSHING
100
SCREW BEARING TUBE TO TRANSMISSION CASE TOP COVER M 12X105
100
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
100
SCREW , Replaced By: N304017008053
112
SHAFT (SHIFTING SHAFT)
112
SHAFT (SHIFTING SHAFT),6149298 000001
115
BALL PIVOT
117
LEVER SHIFTING TRANSFER,LEFT
119
GROOVED PIN SHIFTING SHAFT TO LEVER
120
SHIFTING ROD P.T.O. CONTROL,4 282708
120
SHIFTING ROD , 10/20 FROM CHASSIS 879084,50/60 FROM CHASSIS 880343 AND FROM CHASSIS 8000001
120
SHIFTING ROD P.T.O. CONTROL,6149298 000001
120
SHIFTING ROD ,823235, Replaced By: A3142602533, +001A3142603437, +001N071752008000, +001N918001008002
126
SHIFT LEVER , Replaced By: A3142604039
126
SHIFT LEVER P.T.O. CONTROL
126
SHIFT LEVER LEVER TO SHAFT
132
HANDLE (GEARSHIFT LEVER KNOB)
132
HANDLE (GEARSHIFT LEVER KNOB)
133
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
135
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
135
YOKE OPERATING ROD,K 202311
137
NUT BALL PIVOT TO LEVER
139
SPRING WASHER SHIFTING CYLINDER TO YOKE
140
PINM 8 X 16
140
PIN SHIFT LEVER TO PIVOT PIN
143
WASHER SHIFT LEVER TO CAB FLOOR
145
LOCKING CAP SHIFT LEVER BEARING COVERING
147
SHEET METAL SCREW , Replaced By: N000000002062
147
SCREW
149
BOOT SHIFT LEVER BEARING COVERING
150
GASKET
150
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3122611080
150
GASKET , Replaced By: A3142640180
152
SPRING WASHER STEERING COLUMN BRACKET TO CAB
155
SCREW COVER TO TRANSMISSION CASE M 10X175
157
SCREW P.T.O. TO TRANSMISSION M 10X30 MM
999
SNAP RING
999
GROOVED NAIL3X4,TO 000 431 94 14,000 431 96 14
999
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
999
UNIT IDENTIFICATION PLATE P.T.O.,022948
999
UNIT IDENTIFICATION PLATE ,022947
999
BEARING BRACKET P.T.O. CONTROL
