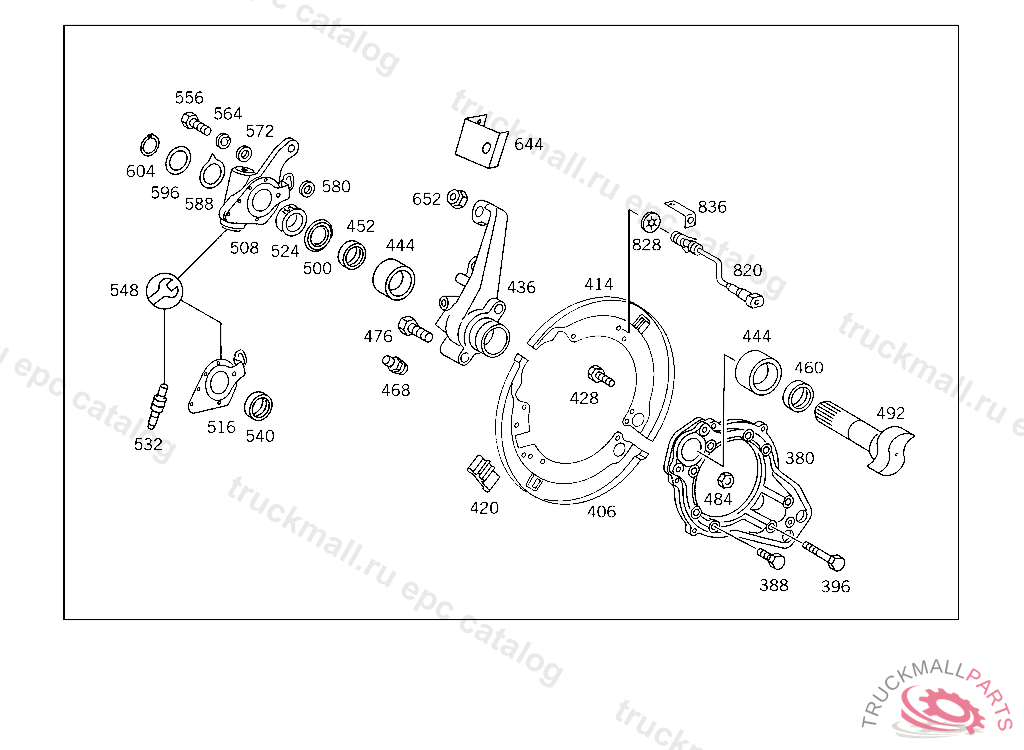

Поз.
Артикул
Описание
380
BRAKE ANCHOR BRAKE SHOE BEARING
388
SCREW FRONT WHEEL BRAKE TO STEERING KNUCKLE
396
SCREW SHOCK ABSORBER TO TOP BRACKET
406
PROTECTIVE PLATE WITH BEAD AND BRAKE LINING WEAR INDICATOR
414
PROTECTIVE PLATE WITHOUT BEAD, WITH BRAKE LINING WEAR INDICATOR
420
PLUG PROTECTIVE PLATE
428
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
436
BEARING BRACKET
436
BEARING BRACKET , Replaced By: A6584210106
436
BRAKE ANCHOR RIGHT BRAKE CYLINDER
444
BUSHING OUTSIDE
444
BUSHING INSIDE
452
SEAL RING INSIDE BEARING BRACKET
452
SEAL RING INSIDE BEARING BRACKET
452
SEAL RING INSIDE BEARING BRACKET
452
SEAL RING , Replaced By: A0129974147
460
SEAL RING OUTSIDE BEARING BRACKET
460
SEAL RING OUTSIDE BEARING BRACKET
460
SEAL RING OUTSIDE BEARING BRACKET
468
GREASE NIPPLE , Replaced By: N071412008102
468
GREASE NIPPLE
476
SCREW BEARING BRACKET TO BRAKE ANCHOR
484
NUT BEARING BRACKET TO BRAKE ANCHOR
484
NUT , Replaced By: A0009905750
492
BRAKE CAMSHAFT WITH LUBRICATING BORE,LEFT
492
BRAKE CAMSHAFT WITH LUBRICATING BORE,RIGHT
500
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
508
ADJUSTER AUTOMATIC,LEFT
508
ADJUSTER AUTOMATIC,RIGHT
516
CONTROL UNIT
524
WORM GEAR"SAB"
532
WORM SCREW"SAB"
540
BUSHING
548
REPAIR KIT SLACK ADJUSTER "SAB"
556
SCREW CLAMP TO BRACKET AND TO PIPE
564
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
572
WASHER , Replaced By: N000125008443
572
WASHER EXHAUST MUFFLER TO STRAP
580
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
580
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
588
STOP WASHER SLACK ADJUSTER TO BRAKE SHAFT
596
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
596
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
596
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
596
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
596
SPACER WASHER ADJUSTER
604
LOCK RING ADJUSTER TO BRAKE CAMSHAFT
644
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
652
NUT COMBINATION CYLINDER TO BEARING BRACKET
652
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
820
SENDER UNIT BRAKE LINING WEAR INDICATOR, STANDARD VERSION: 18.9 MM
820
SENDER UNIT BRAKE LINING WEAR INDICATOR, REPAIR SIZE: 16.9MM
828
LOCK PLATE. CIRCLIP SENSOR CABLE TO PROTECTIVE PLATE
836
BRACKET BATTERY CABLE TO CROSS MEMBER
999
TIE ROD , Replaced By: A6993302203
