Mercedes A9463280062 - EINSATZ

TE 4/8 C6-9 AIRMASTER 749.349

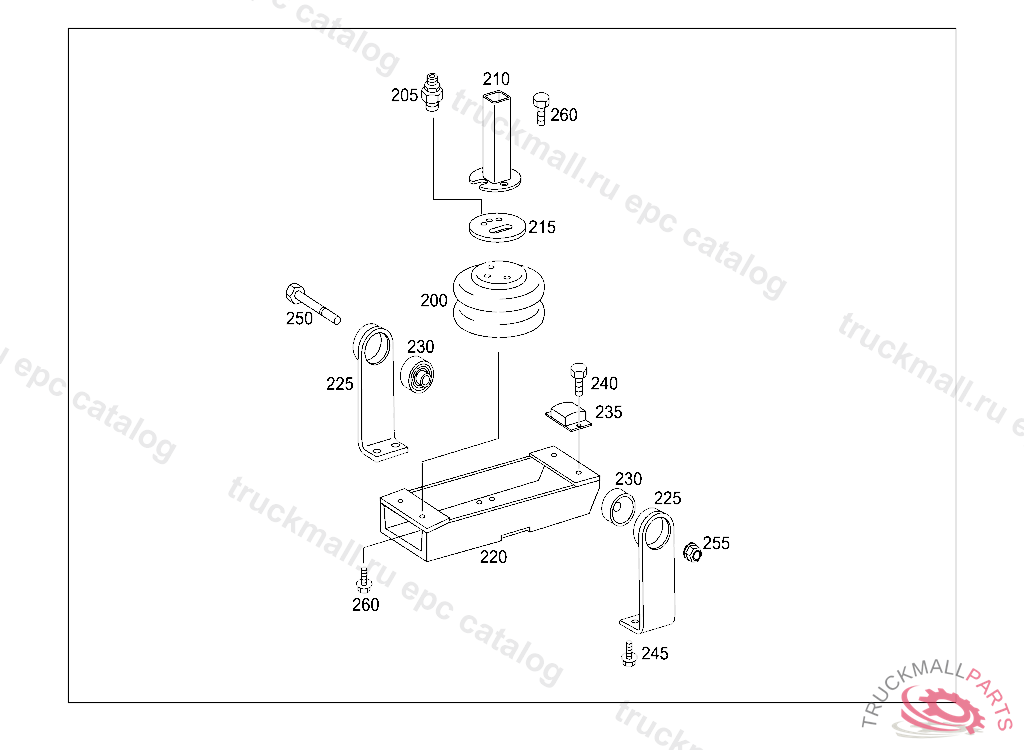

39 TRAILING AXLE - 220 AXLE LIFT IL. 3

Поз.
Артикул
Описание
200
A9463282401
AIR SPRING BELLOWS AXLE LIFTING ARM
205
A9463280062
INSERT
210
A9463288035
FASTENING PLATE
215
A9463202635
STOP PLATE F BELLOWSH50
215
A9463203135
STOP PLATE F BELLOWS AIR SPRING BELLOWS AT BEARING BRACKET H200MM
220
A9463501806
CONTROL ARM AXLE LIFTING ARM
225
A9463500138
BRACKET AXLE LIFTING ARM
230
A9469900186
THRUST WASHER AXLE LIFTING ARM
235
A9463250144
RUBBER BUFFER AXLE LIFTING ARM
240
N910105010006
SCREWM 10X20
245
N910105010007
SCREW BRACKET TO SIDE MEMBER M10X35
250
A9469900000
SCREW LEFT AND RIGHT AXLE TUBES M22X1.5X195
255
A0004010672
NUT. WHEEL NUT DISC WHEELS TO FRONT AND REAR AXLES
260
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
