Поз.
Артикул
Описание

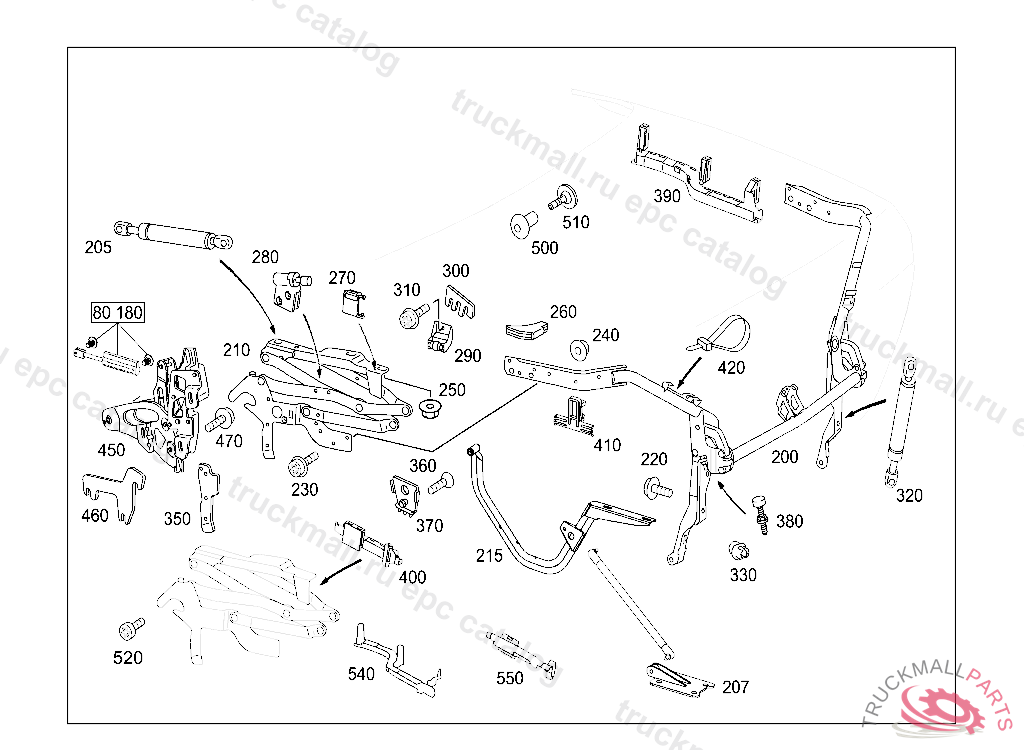

200
FRAME , UP TO IDENT. NO. F 021136, THE TORSION BAR ABSOLUTELY MUST BEREMOVED
205
GAS-OPERATED SPRING FOR TRUNK LID FUNCTION
205
GAS-OPERATED SPRING FOR TRUNK LID FUNCTION, F 11358820050906
205
SPRING DAMPER FOR TRUNK LID FUNCTION
207
CONSOLE PNEUMATIC SPRING
210
HINGE RIGHT, F 10996620050623806
210
HINGE LEFT, F 10996620050623806
215
HINGE RIGHT
215
HINGE LEFT
220
HEXALOBULAR BOLTM8X16
230
SCREW BRACKET TO COVERING
240
CAPTIVE NUT. NUT
250
NUT-AND-WASHER ASSEMBLY RUBBER MOUNTING TO FRAME M8
260
STOP BUFFER LEFT, F 10996620050623806
260
STOP BUFFER RIGHT, F 10996620050623806
270
SLIDE TO HINGES LEFT AND RIGHT
280
SPRING DAMPER LIMIT DAMPER TO SEVEN JOINT HINGE RIGHT, F 10996620050623806
280
SPRING DAMPER LIMIT DAMPER TO SEVEN JOINT HINGE LEFT, F 10996620050623806
290
BEARING LEFT
290
BEARING RIGHT
300
PAD MOUNTING
310
SCREW BRACKET TO COVERING
320
SPRING TUBULAR-FRAME DRIVE
330
BRACKET HYDRAULIC CYLINDER
350
SPRING LEFT
350
SPRING RIGHT
360
SCREW ADJUSTER TO WINDOW PANE
370
GUIDE WEDGE REAR RIGHT, F 10996620050623806
370
GUIDE WEDGE REAR LEFT, F 10996620050623806
380
BUFFER REAR LID LATCH-TYPE LOCK
390
CABLE DUCT PIPING REAR LID
400
CABLE DUCT PIPING REAR LID
410
BRACKET PIPING REAR LID
420
CABLE TIE310X5MM
450
CATCH TUBE FRAME TO LEFT SIDE PANEL, F 13803420070629
450
CATCH TUBE FRAME TO RIGHT SIDE PANEL
460
PAD TO TUBE FRAME LOCK
470
HEXALOBULAR BOLT GROUND LINE TO GRID HEATER M6X25
500
SLEEVE FOAM PART FASTENING TO 7-JOINT HINGE
510
PIN FOAM PART FASTENING TO 7-JOINT HINGE
520
HEXALOBULAR BOLT MOUNTING, COVER M6 X 8
540
CABLE DUCT TO TRUNK LID HINGE, FRONT
550
CABLE DUCT TO TRUNK LID HINGE, BACK
