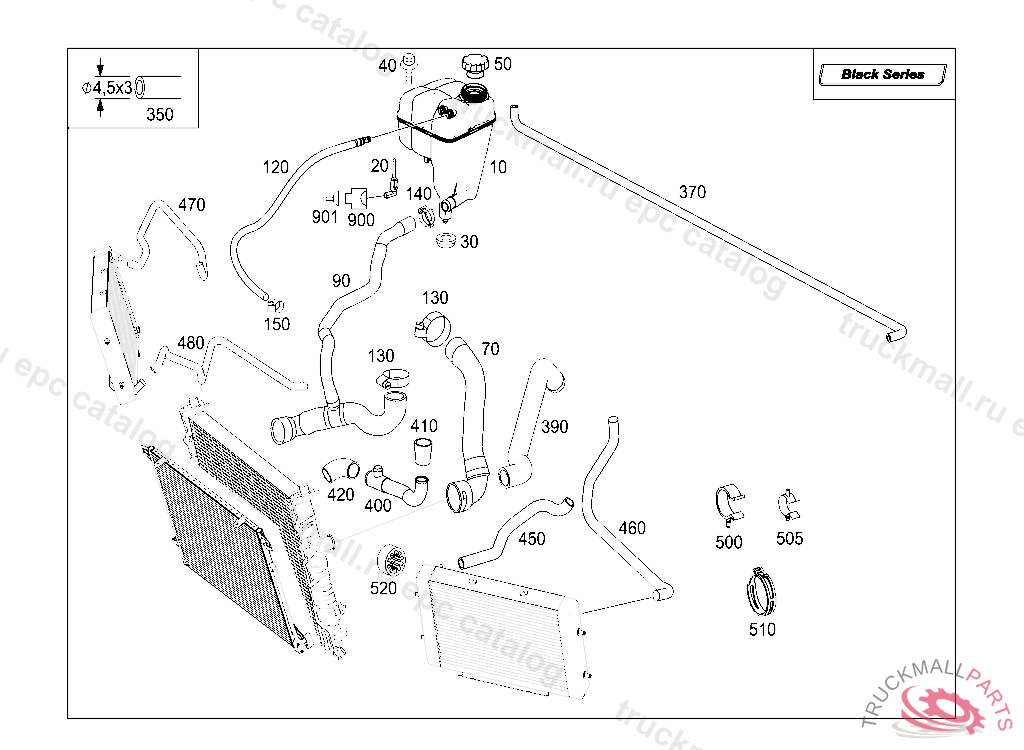

Поз.
Артикул
Описание
10
DASHPOT EXPANSION TANK, F 04557520030120
20
SWITCH,AUTOMATIC COOLING WATER LEVEL INDICATOR
30
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
40
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
50
RADIATOR CAP EXPANSION TANK
50
CLOSING COVER
140
SPRING HOSE CLAMP HOSE FASTENING,230301
150
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
350
HOSE4.5X10X900MM
370
VENTILATION LINE COOLER TO COMPENSATING TANK
390
HOSE FROM ENGINE TO RADIATOR
400
COOLANT PIPE RADIATOR BOTTOM
410
HOSE AT LOWER COOLER COOLANT PIPE
420
HOSE FROM RADIATOR TO ENGINE
450
HOSE FEED, LEFT COOLER
460
COOLANT PIPE RETURN, LEFT COOLER TO RIGHT COOLER
470
HOSE FEED, RIGHT COOLER
480
HOSE RETURN, RIGHT COOLER TO LEFT COOLER
500
CLAMP HOSE TO HOSE
505
BRACKET LINE MOUNTING 11 MM
510
CLAMP HOSE TO RADIATOR
520
RUBBER RING
900
SOCKET HOUSING. PIN BUSHING HOUSING PRESSURE CONVERTER THROTTLE VALVE
901
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
901
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
999
HOSE FEED FROM EXPANSION RESERVOIR
999
VENTILATION LINE ENGINE TO EXPANSION TANK
