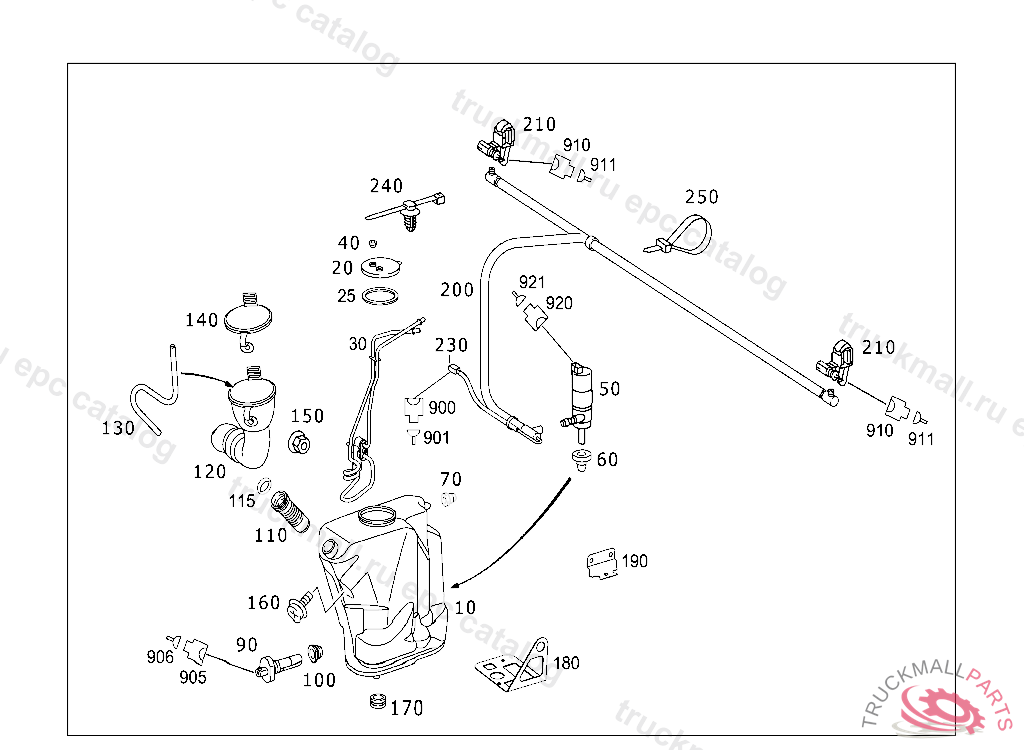

Поз.
Артикул
Описание
10
DASHPOT W/O DETACHABLE BODY COMPONENTS
10
DASHPOT
20
COVER FOR HEAT EXCHANGER, Replaced By: A2518350039
25
SEAL
30
HEAT EXCHANGER
40
EXPANSION PLUG WHEELHOUSES, REAR FENDERS
50
PUMP PANE WASHER, F 140422 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO F 140421 WITH CODE 807
50
PUMP PANE WASHER, F 140422 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO F 140421 WITH CODE 807
60
GROMMET CENTRIFUGAL PUMP CONNECTION
70
GROMMET LOWER FASTENING
90
SWITCH WINDSHIELD WASHER WATER LEVEL
100
GROMMET WATER LEVEL SWITCH TO RESERVOIR
110
PIPE BETWEEN NECK AND RESERVOIR
115
SEAL FILLER NECK
120
FITTING FILLER NECK
130
HOSE VENTILATION TANK
140
COVER FILLER NECK
150
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
160
SCREW COVER PLATE TO COVER PLATE M 6 X 12
170
GROMMET BRAKE CABLE TO REAR AXLE
180
BRACKET AT RESERVOIR,BOTTOM
190
BRACKET AT RESERVOIR,TOP
200
HOSE PUMP TO NOZZLE
200
HOSE PUMP TO NOZZLE
200
HOSE LINE UNHEATED
210
NOZZLE LEFT AND RIGHT R2/1, F 13820020070630808
210
NOZZLE LEFT AND RIGHT, A 92485620060602 E 01999920070101
230
PLUG WIPER PARK POSITION HEATER SEPARATION POINT IN MAJOR ASSEMBLIES COMPARTMENT
240
CABLE STRAP202X4.8MM
250
CABLE TIE310X5MM
900
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
901
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
901
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
905
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
906
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
906
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
910
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
911
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
911
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
920
PIN BUSHING HOUSING INDICATOR SWITCH,POWER TAKE-OFF S23.2/.3, 2 PIN
921
FEMALE CONTACT LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2, PIN 57 - 62
921
WIRE SEAL
999
GROMMET
