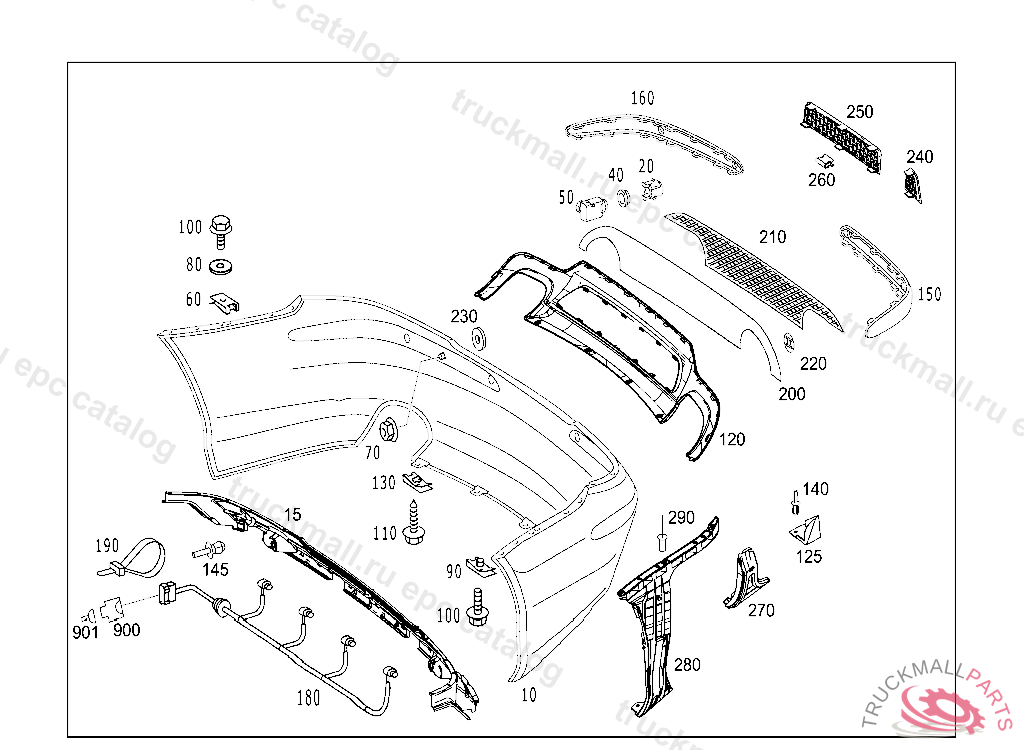

Поз.
Артикул
Описание
10
BUMPER REAR, F 14596520080331809 TO BE PAINTED PRIOR TO INSTALLATION
10
PANELING REAR, F 13820020070630808 TO BE PAINTED PRIOR TO INSTALLATION 9999QFT230L9000 COLORLESS
10
BUMPER REAR, F 14596520080331809 TO BE PAINTED PRIOR TO INSTALLATION
10
PANELING REAR, F 13820020070630808 TO BE PAINTED PRIOR TO INSTALLATION 9999QFT230L9000 COLORLESS
15
FRAME SEGMENT ENERGY-ABSORBING UNIT
20
HOUSING OUTSIDE
20
HOUSING INSIDE
40
SPACER RING SENSOR
40
SPACER RING
50
DISTANCE SENSOR PARKTRONIC SYSTEM, E 02900020071206808 TO BE PAINTED PRIOR TO INSTALLATION
50
DISTANCE SENSOR , TO BE PAINTED PRIOR TO INSTALLATION
60
LOCK NUT. LOCK PANELLING TO BUMPER
70
NUT FENDER ON SIDE PANEL M6
80
RUBBER RING EMERGENCY LANTERN TO CAB
90
LOCK NUT. LOCK PANELLING TO BUMPER
100
SCREW LICENSE PLATE TO BRACKET
100
BOLT LOWER SUPPORT M6X19
110
TAPPING SCREW MOUNTING PARTS 4.8X19
110
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
120
PANELING LOWER PART
120
PANELING LOWER PART, F 13820020070630808 9999QFT230L9000 COLORLESS
120
PANELING LOWER PART FA. FISCHER, F 13820020070630808 IMPORTANT! OBSERVE PART NUMBER OF REMOVED PART
120
PANELING LOWER PART, F 14596520080331809
125
BRACKET BOTTOM LEFT
125
BRACKET BOTTOM RIGHT
130
FUSE MATING BEARING TO ROOF FRAME
130
LOCK NUT. LOCK
130
FUSE AIRBAG TO CROSS MEMBER 4.2 MM
145
EXPANSION RIVET REINFORCEMENT FASTENING 4 MM
150
PROTECTIVE STRIP LEFT
150
PROTECTIVE STRIP LEFT
160
PROTECTIVE STRIP RIGHT
160
PROTECTIVE STRIP RIGHT
180
WIRING HARNESS PARKTRONIC SYSTEM
180
WIRING HARNESS TO BUMPER LINING, F 13820020070630808
190
CABLE TIE310X5MM
200
FENDER SKIRT IN REAR BUMPER, F 14596520080331809
210
GRILLE IN REAR BUMPER, F 10996620050623806 F 14596520080331809
230
WASHER REAR LATERAL GUIDE TO REAR END FLOOR,F 021177
240
GRILLE OUTSIDE RIGHT, F 13820020070630808
240
GRILLE OUTSIDE LEFT, F 13820020070630808
250
GRILLE INSIDE LEFT, F 13820020070630808
250
GRILLE INSIDE RIGHT, F 13820020070630808
260
CLIP
270
REINFORCEMENT REAR RIGHT
270
REINFORCEMENT REAR LEFT
280
BRACKET RIGHT
280
BRACKET LEFT
290
RIVET AMG VEHICLES
900
PIN BUSHING HOUSING , NOT USED
901
REP.SET CONTACT. CABLE HARNESS
