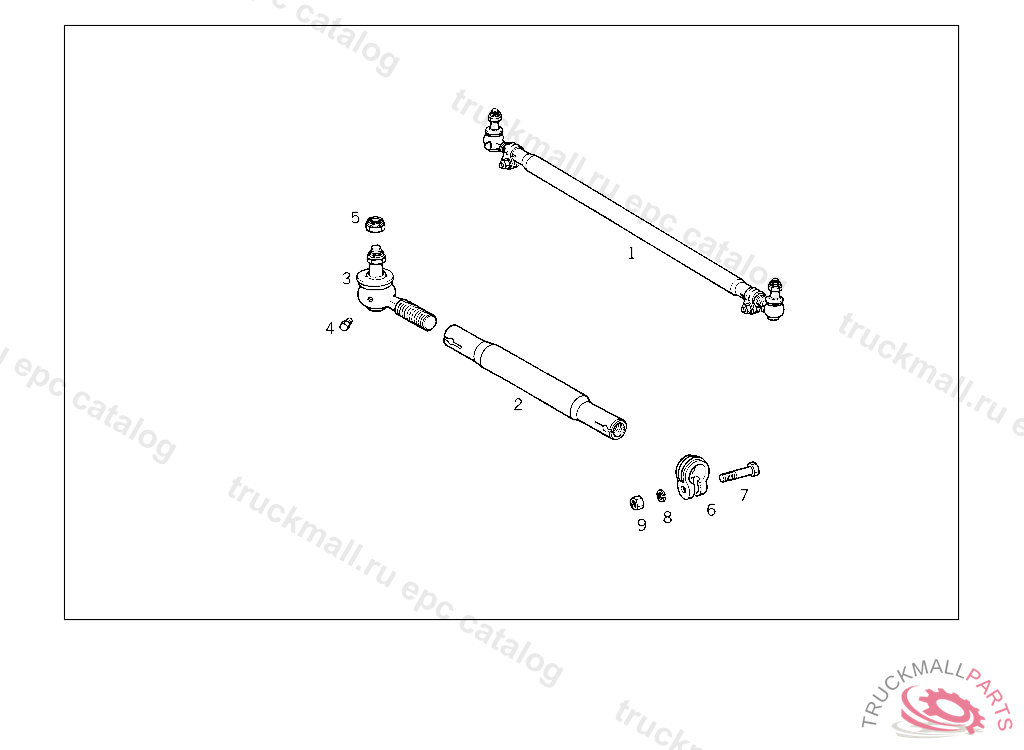

LPKF 608,709 - 314.081 - 33 FRONT AXLE
Поз.
Артикул
Описание
1
TIE ROD ,695198
2
TIE ROD
3
JOINT LEFT
3
BALL JOINT LEFT
3
JOINT , Replaced By: A0003381610
4
PLUG
4
PLUG , Replaced By: N900087008000
5
NUT M14X1,5 MM
6
CLAMP
7
SCREW
8
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
9
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
9
NUT , Replaced By: N308673010000
999
JOINT RIGHT,015019695198
999
COTTER PINTO 360 320 01 89
