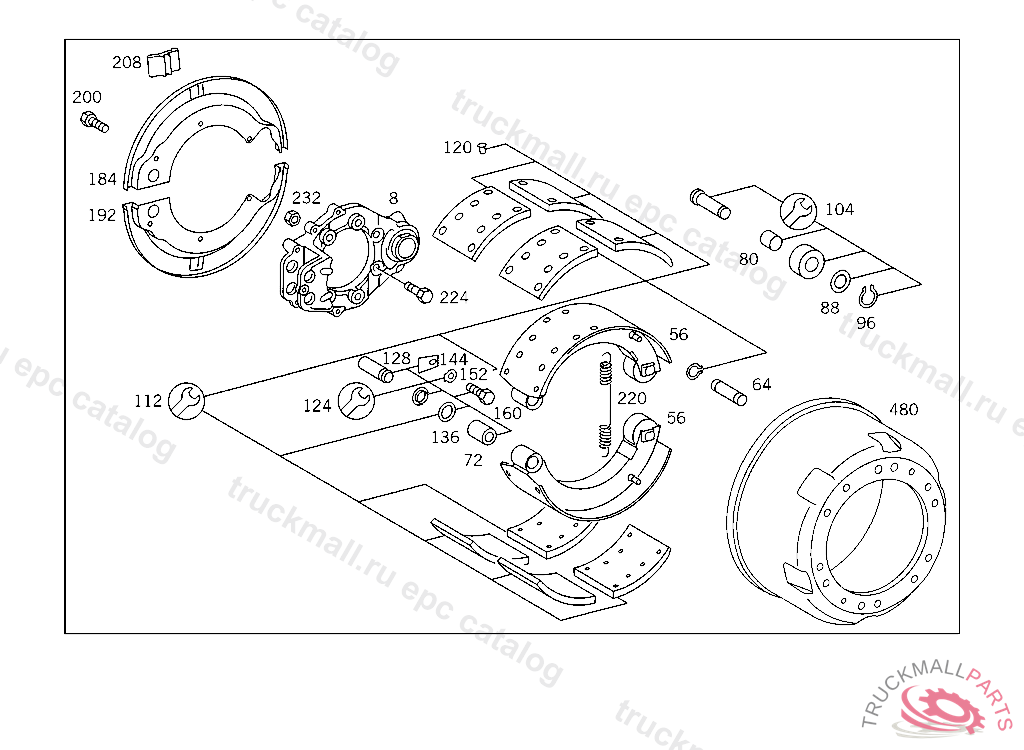

Поз.
Артикул
Описание
8
BRAKE ANCHOR (BRAKE ANCHOR)
56
BRAKE SHOE , Replaced By: A6594200619
64
PIN , Replaced By: A9454210074, +008N000471012001
64
PIN BRAKE SHOE IN CAST VERSION
72
BUSHING ,669845
72
BUSHING ,669845
80
BUSHING
80
BUSHING
88
FITTED WASHER BRAKE SHOE ROLLER
88
WASHER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: N000988017100
96
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
104
REPAIR KIT BRAKE SHOE ROLLER
112
BRAKE LINING (PARTS KIT) (BRAKE LINING 19.50 MM,8X 620 423 02 10,TEXTAR)
112
BRAKE LINING (PARTS KIT) (BRAKE LINING 18.00 MM,8X 620 423 00 10,TEXTAR)
112
BRAKE LINING (PARTS KIT) (BRAKE LINING 18.80 MM,8X 620 423 01 10,TEXTAR)
112
BRAKE LINING (PARTS KIT) (BRAKE LINING 16.70 MM,8X 620 423 03 10,TEXTAR)
120
RIVET
120
PANHEAD RIVET BRAKE LINING TO BRAKE SHOE 18 MM
120
RIVET , Replaced By: A3079900297
124
REAR WHEEL BRAKE BRAKE SHOE BEARING
128
PIN , Replaced By: A3454217074
136
SEAL RING BRAKE SHOE PIN TO BRAKE ANCHOR
144
LOCK BRAKE SHOE TO BRAKE ANCHOR
144
LOCK BRAKE SHOE TO BRAKE ANCHOR
200
SCREW BRACKET TO SUPPORT M10X14
208
PLUG PROTECTIVE PLATE
220
SPRING
224
SCREW REAR WHEEL BRAKE TO REAR AXLE
224
SCREW BEARING BRACKET TO BRAKE ANCHOR
232
NUT , Replaced By: A0009905750
232
NUT BEARING BRACKET TO BRAKE ANCHOR
480
BRAKE DRUM
999
REPAIR KIT SLACK ADJUSTER "SAB"
999
CONTROL UNIT
999
YOKE BRAKE CYLINDER
999
WORM SCREW"SAB"
999
WORM GEAR"SAB"
999
BUSHING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
999
PISTONTO 006 420 94 18,BOSCH
999
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) BOSCH
999
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) WABCO
999
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER),FRONT AXLE WABCO
999
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) GRAU
999
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER),FRONT AXLE GRAU
999
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER),FRONT AXLE BOSCH
999
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) KNORR
999
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER),FRONT AXLE KNORR
999
PROTECTIVE PLATE ABS AND BRAKE LINING WEAR INDICATOR
999
PROTECTIVE PLATE WITH BEAD,A B S AND BRAKE LINING WEAR INDICATOR
999
WASHER TRAILER PLUG SOCKET TO BRACKET
999
WASHER
999
NUT
999
NUT ENGINE MOUNTING M8
999
SCREW , Replaced By: N910106010018
